vacuum servo semi-auto flute laminator box making machine

Availability:
Quantity:
  • Other, Other

  • Manufacturing Plant, Food & Beverage Factory, Farms, Food Shop, Printing Shops, Energy & Mining

  • New

  • Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles

  • Film

  • Plastic

  • Semi-Automatic

  • Electric

  • 3ph 380v 50hz

  • 7kw

  • Hebei, China

  • XINGLONG

  • 3500kg

  • 9000*2000*2300mm

  • CE

  • Easy to Operate

  • vacuum servo semi-auto flute laminator box making machine

  • paper and box making

  • servo motor

  • PLC

  • 1300

  • Low Consumption

  • 120m/min

  • Power-conserving

  • laminator

  • Engineers available to service machinery overseas

vacuum servo  semi-auto  flutelaminator box making machine


Product Description


Introduction:

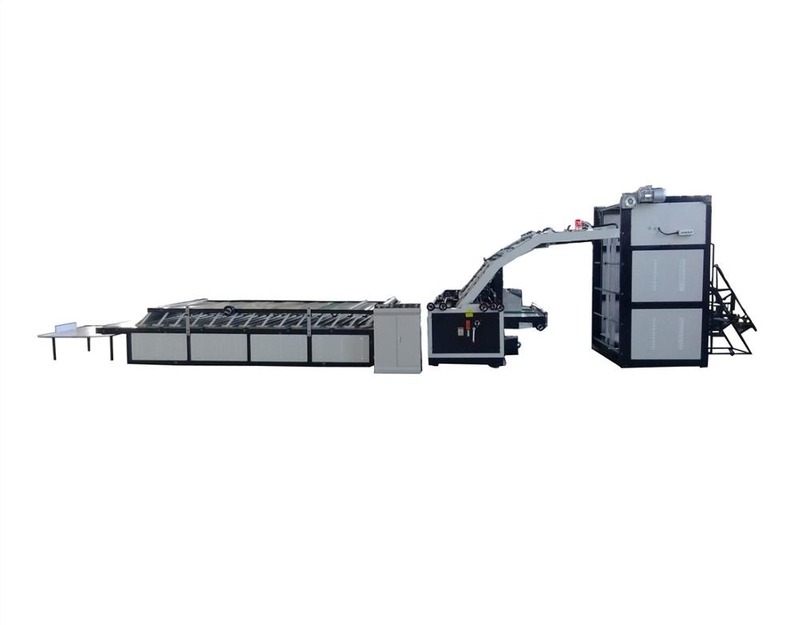

TMJ-H-II type servo machine is based on TMJ-H-I, improved the automatic up and down surface paper system. Surface paper can pile up the height of 1m once time, useing photoelectric automatic up. So this design reduced more time for moving the surface paper.

Main feature:

1. The top paper can pile up the height of 1m once time ,it makes delivery more easier and efficient

2. Adopt PLC & Taiwan servo motor control system, working is more precision and stable,improved the speed, circuit faults can automatically alarm.

3. Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking

4. Entire new concept,front gauge registration, position high accuracy, bottom sheet never exceedes the top sheet.

5. Machine uses touch-screen / PLC control system, the circuit system is stable, and can automatically display the failure alarm

6. The automatic replenishment system of glue can be added automatically during glue losses, and recycling with the glue to avoid loss of waste;

7. The scientific design of the metering roller speed to ensure the glue evently on the same time, to avoid rejection of glue at high speed.

8. Using the rubber roller cleaning to make cleaning thoroughly, and so that the back of the corrugated cardboard never gets glue, and eliminating the trouble of frequent replacement of blade.

9. Floating removable press, to ensure that laminated paper will not be crushed, and also keep the cardboard smooth and straight; unilateral adjustment by way of adjustment worm roll lamination pressure for quick

10. Control of water tank cleaning cycle using an independent method, clean, hard rubber product;

11.Suitable for color top sheet 175-500g and A/B/C/D/E/F corrugated paper laminating;

Technological parameter:

Model

HRBTMJ-1300H-II

HRBTMJ-1500H-II

HRBTMJ-1600H-II

Max size of cover face

1300mmX1100mm

1500mmX1150mm

1600mmX1150mm

Mix size of cover face

360mmX360mm

360mmX360mm

360mmX360mm

Economic speed

0-100 piece/min

0-100 piece/min

0-100 piece/min

Precision

±1

±1

±1

Power

7kw

7kw

7kw

Size

10m x 2m x 2.2m

10m x 2.2m x 2.2m

8.8m x 2.3m x 2.2m

Weight

About 3.5T

About 4.0T

About 4.0T
