Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Farms, Printing Shops, Construction works , corrugated cardboard factory
New
thin blade machine
No
Hebei, China
xinglong
380/440V 50 hz
3100*750*1650
2ton
CE,BV,SGS
1 YEAR
Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
Paperboard
thin blade slitter scorer
Cutting Cardboard
Corrugated Board
80m/min
Making Carton
Optional Color
BD2000
2000
Service Machinery Overseas
1. four blades six scorers or five blades eight scorers ，six blades ten scorers for selection
2. Adopt electric life-lower in order to change the height of paper cutting and indentation, and to fit for the height of paper feeding.
3. adopt novelty thin edge high speed paper cutting, the incisions are level up and velvet.
4. auto-grinding edge system can be realized in the production, non-atop machine grinding edge, according to material and condition of hem, set the interval meter and the grinding time at any moment.
5. the whole set adopt electric movement horizontal, assort to the cardboard excursion in effect.
| Model | BD2000 | BD2500 | BD2800 |
| blade | 4/5/6/7 | 4/5/6/7 | 4/5/6/7 |
| scorer | 6/8/10/12 | 6/8/10/12 | 6/8/10/12 |

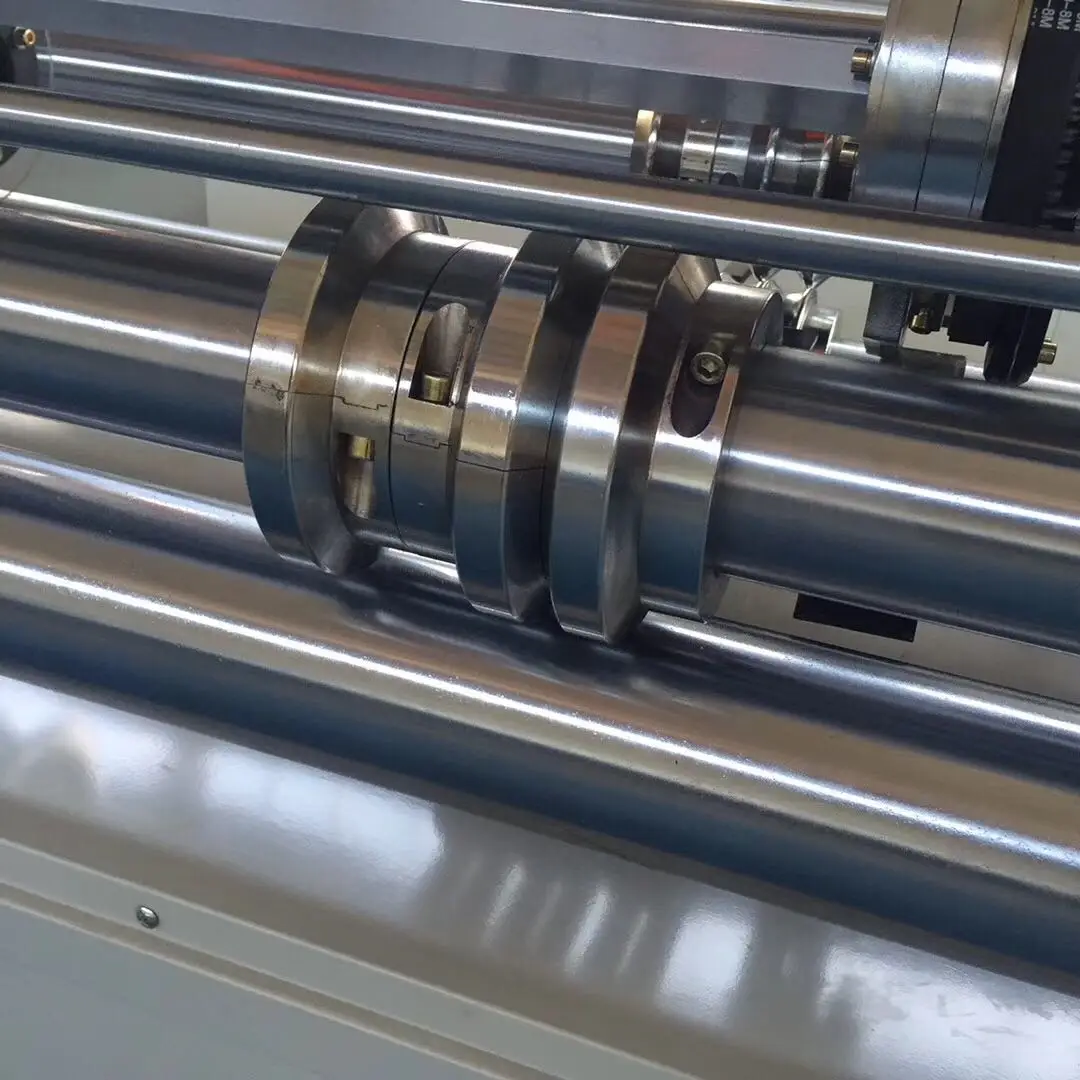

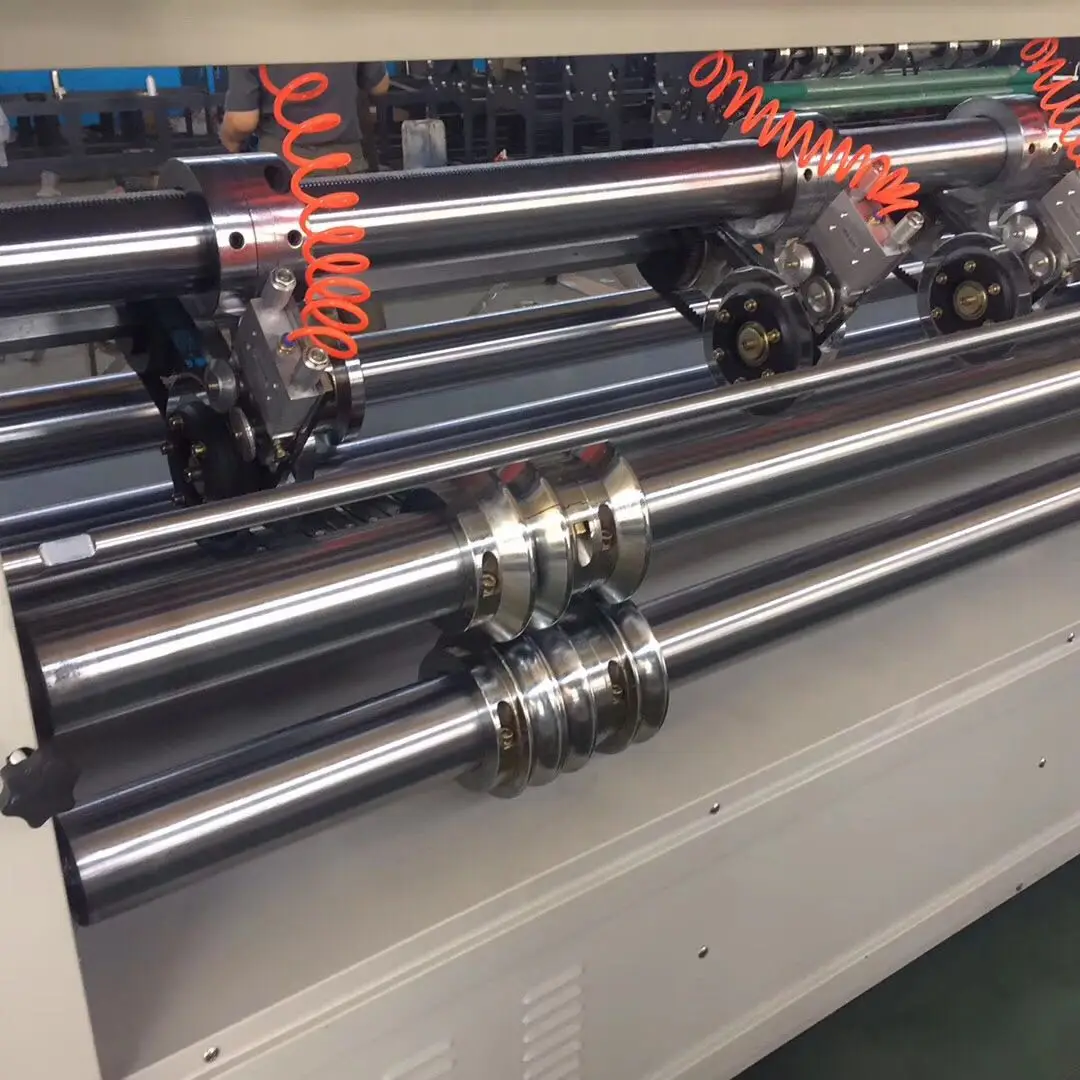

Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
Adopt 8 shafts design, two shafts in front and back of the slitter, can minimize the length of paperboard machining.
Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
Grinding part: adopt automatic and manual two kinds pneumatic
grinding type, it could be grinding when working, improve work efficiency.
1. four blades six scorers or five blades eight scorers ，six blades ten scorers for selection
2. Adopt electric life-lower in order to change the height of paper cutting and indentation, and to fit for the height of paper feeding.
3. adopt novelty thin edge high speed paper cutting, the incisions are level up and velvet.
4. auto-grinding edge system can be realized in the production, non-atop machine grinding edge, according to material and condition of hem, set the interval meter and the grinding time at any moment.
5. the whole set adopt electric movement horizontal, assort to the cardboard excursion in effect.
| Model | BD2000 | BD2500 | BD2800 |
| blade | 4/5/6/7 | 4/5/6/7 | 4/5/6/7 |
| scorer | 6/8/10/12 | 6/8/10/12 | 6/8/10/12 |
Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
Adopt 8 shafts design, two shafts in front and back of the slitter, can minimize the length of paperboard machining.
Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
Grinding part: adopt automatic and manual two kinds pneumatic
grinding type, it could be grinding when working, improve work efficiency.
