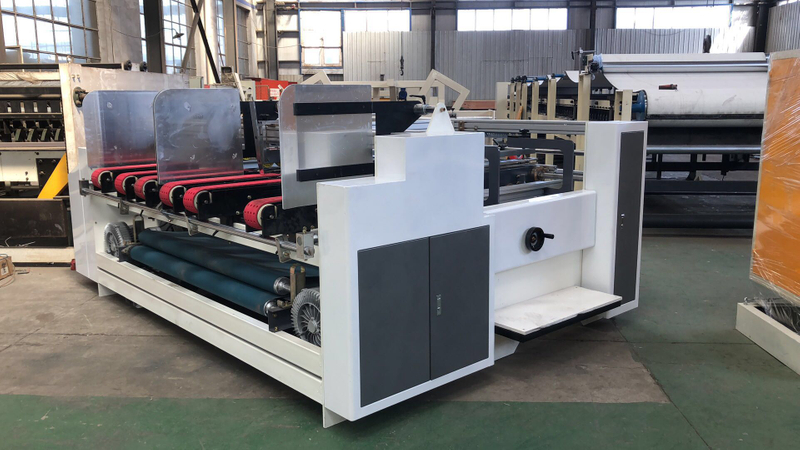

servo double-pieces box folding glue machine

Quantity:
  • Gluing Machine
  • Manufacturing Plant
  • New
  • Food, Beverage, Commodity
  • Cartons
  • Paper
  • Semi-Automatic
  • Electric
  • 3ph 380v 50hz
  • Hebei, China
  • 3400*3150*1340
  • 2300kg
  • CE
  • 1 YEAR
  • Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
  • double piece box and 4 servo drive
  • servo double-pieces box folding glue machine
  • servo motor automatic
  • two pieces
  • E flute 3ply or paper board
  • manual
  • cold and hot melt
  • 0-2000pcs/hour
  • 1000*800
  • 450*320
  • 4 servo motor
Product Description

Product Application

High speed semi-auto folder gluer suit for AA, AB two piece box and single piece box. It instead manual glue, reduce labor intensity. Machine Features: high degree of automatic, reduce labour, improve product quality and effective, reduce work cost. Only need two workers operate it, one worker feed sheet and collect finished boxes, another worker fold and rectify boxes. Reduce space for machine. Working range of sheet: A-E flute.

Model
SPHX-2000A
SPHX-2000B
Sheet size(mm)
Max1000×800,

Min450×320


Max 1000×1200,

Min 450×320


Speed
0-2000pcs/h
0-2000pcs/h
Dimension
3400*3150*1340
3400*3550*1340
Power
6.6kw
6.6kw


Main Features

1)Machine adopt double variable-frequency motor, PLC centralize control, drive and control precision.

2)High-power adsorption device for feed system, feed single and double piece of sheet. Independ servo motor for left and right feed wheel for double pieces sheet feeding. When sheet to out place stop feed.

3)When make two piece box, sheets can be glued during feed( hot-melt glue in the middle), three side pneumatic fix position, top pneumatic press, two piece sheets adhesive to one, glue firmly.

4)Press part is final set. After glue to one-piece fold by manual and rectify problem of line and flute cross. Go to press belt to finish product.

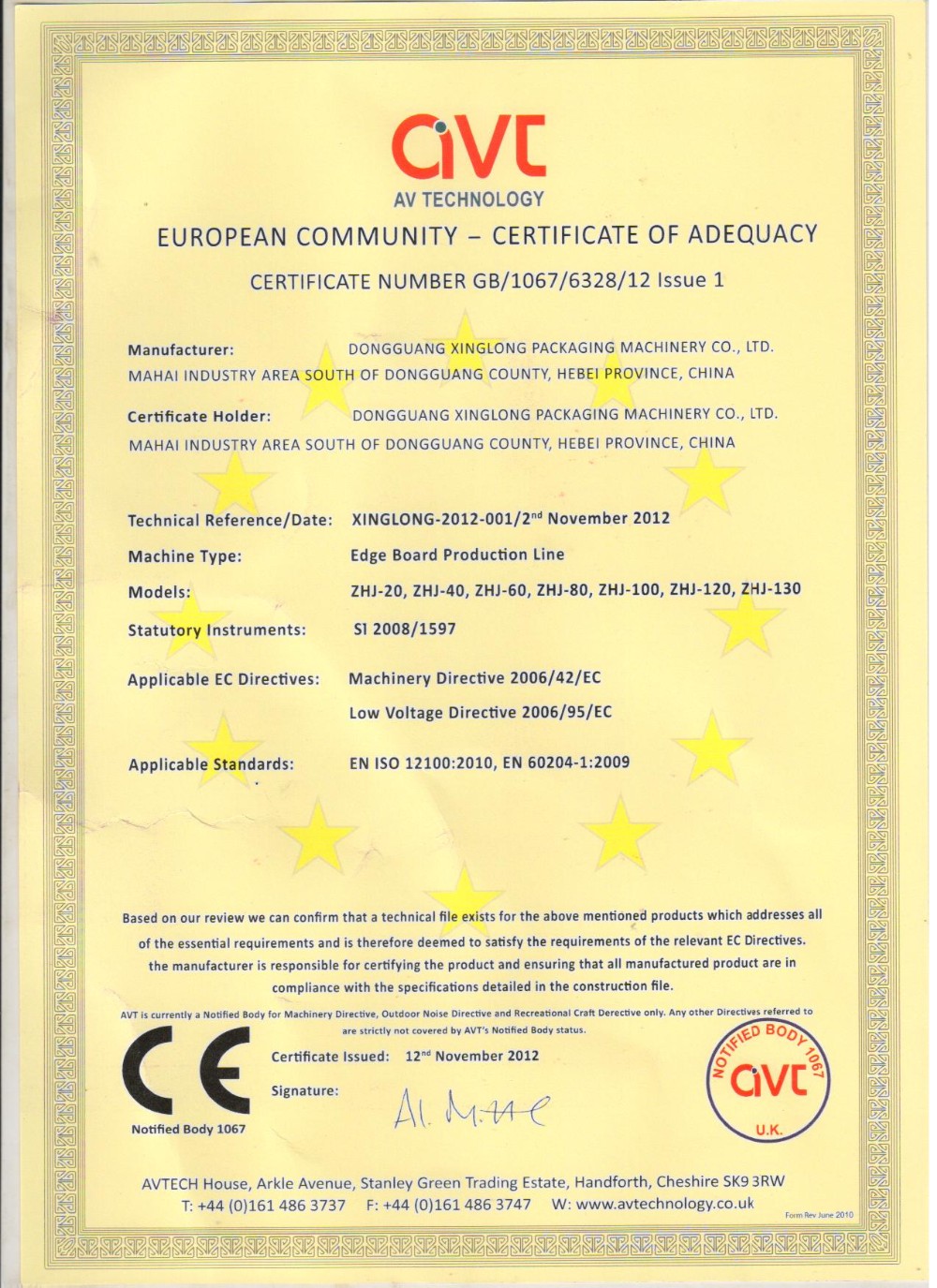

Certifications




Detailed
Item
Brand
servo
Delixi
PLC
Omron, Japn
Optoelectronic switch
Omron, Japn
Touch screen
Weinview, Taiwan
VFD
Mitsubishi,Japan



Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

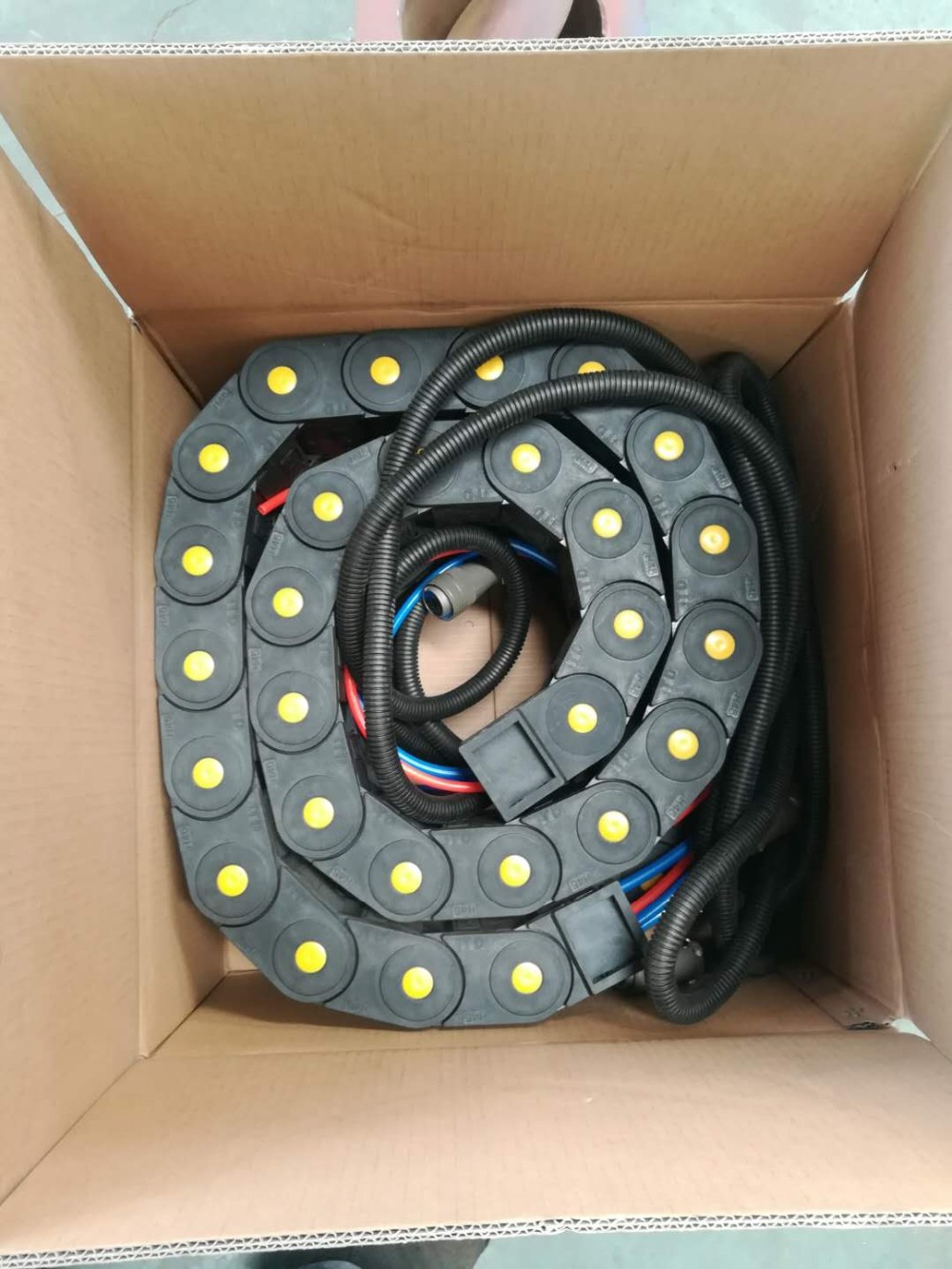

Packing & Delivery
