reel paper saw machine

This product are widely used in paper mill, packaging and printing factory.
It looks same as normal sitter, but no need rewinder, which save time.
Not only can used in your factory for cut different width paper rolls, but also can provide on-site roll paper cutting processing services, This machine can cut the paper rolls which is soaked, wormed, bigger or special specification according to customer demands, also including the kraft paper, corrugated paper, white card etc.
Quantity:
  • XL-II
  • xinglong

Product Description


Product Name: High quality paper roll saw cutting machine

This product are widely used in paper mill, packaging and printing factory. It looks same as normal sitter, but no need rewinder, which save time. Not only can used in your factory for cut different width paper rolls, but also can provide on-site roll paper cutting processing services, This machine can cut the paper rolls which is soaked, wormed, bigger or special specification according to customer demands, also including the kraft paper, corrugated paper, white card etc.

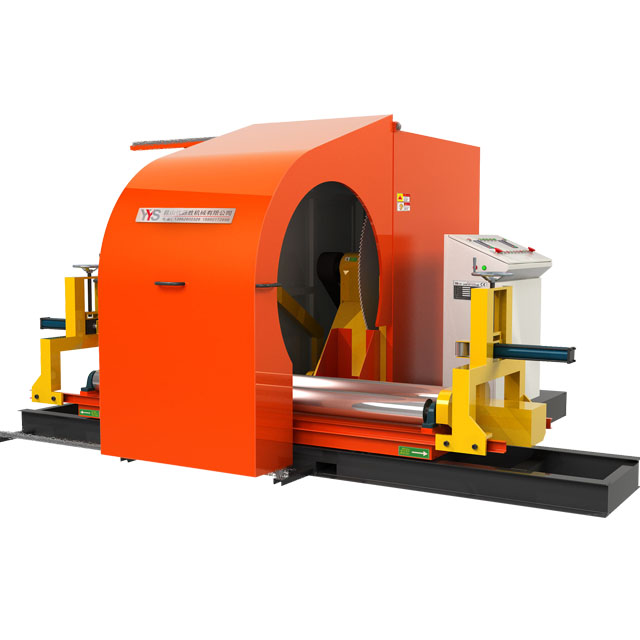

Jumbo-roll-slitting-machine

Main Specifications


Model XL-II
Paper Width Between 3cm and 3.5m
Paper DIA Between 35cm to 1.35m
Time consuming It’ll take 5min to cut 1.25m DIA and 140g Kraft card board, time consuming conversely to weight. 6 volumes can be cut per hour in average.
Voltage 380V(standard),other voltage need customize;
Frequency 50-60HZ
Power 38KW
Main Motor's power 22KW
Weight 4.35T
Cutter blade speed 740R/min
