hydraulic shaftless mill roll stand

  • Packaging Line

  • New

  • Machinery & Hardware

  • Film, Case

  • Plastic, Wood, Metal

  • Automatic

  • Hydraulic

  • 3PH 440/410/380V50Hz

  • Hebei, China


  • 4000*2700*1000mm

  • 2000kg

  • CE Certification

  • Engineers available to service machinery overseas, Online support, Free spare parts

  • /hydraulic mill roll stand

  • Corrugated Paperboard Making Machine

  • Optional

  • 1 Year

China manufacturer carton box hydraulic mill roll stand machines


- Mill roll stand is important unit in the corrugated cardboard production line, it is used to hold the roll paper (liner board and medium board), and adjust tension of paper keep paper go in next unit smoothly.
- Four arms are symmetrical in two side, it can hold 2 rolls of paper one time.
- Roll paper lift-lower, clamp, loosen, movement, contraposition operated by motorize.
- It used pneumatic brake to adjust tension of paper.
- Bulge clamp reduce paper waste.
It used cycloid motor to control arm clamp and lift-down, when the arm carry overload or touch on floor the motor can protect machine from damage.

Features and characteristics:

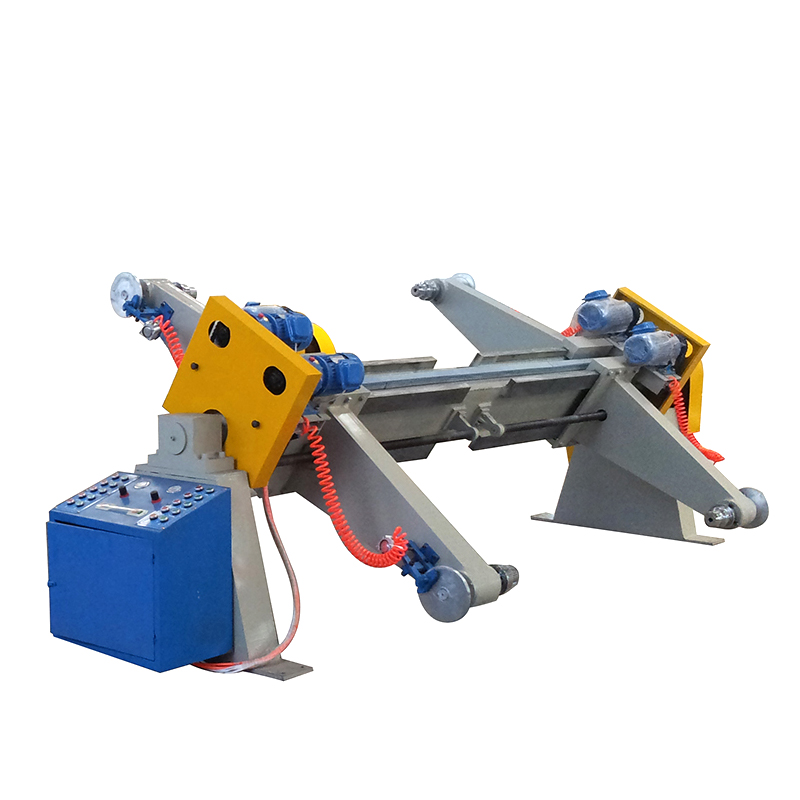

RS-1500mm electrical shaftless mill roll stand

1. Paper roll lift-lower, loosen, movement, contraposition operated by motorize.
2. Paper roll strain control by pneumatic brakes.
3. Max diameter of reel paper: 1500mm
4. Width of paper: 600mm-1600mm, 600mm-1800mm, 600mm-2200mm
5. Installment power: 6KW
6. When the clamping moving up and down selects cycloid motor, and the thick paper used for covering arm overload or touch the ground, it'll be effective to safeguard the machinery not to be damaged.

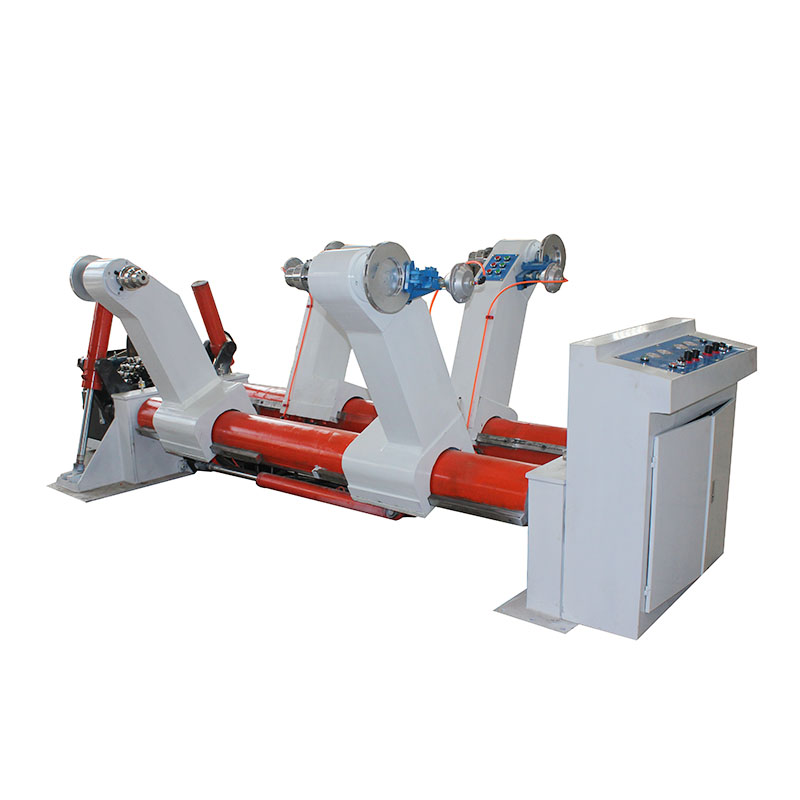

ZJ-Y hydraulic shaftless mill roll stand

1. Max diameter of paper roll: 1500mm
2. Effective width: 1400-2500mm
3. Paper roll lift-lower, clamp, loosen, movement, contraposition operated by hydraulic pressure. Feeding paper quickly.
4. Adopts pneumatic brake, the finial adopts taper style or bulge style.


3ply/5ply/7ply corrugated production line               Customized speed single facer                    High speed automatic printer slotter


               Shaftless mill roll stand                                         Semi automatic gluer                               Semi automatic stitching machine


   Multi color semi auto printer slotter                    Automatic rotary die cutting machine               Rotary slotter grooving machine


1. Q: Are you a manufacturer, trading company or a third party?

A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.

2. Q: What is your minimum order quantity, can you send me samples?

A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.

3. Q: How does your factory do regarding quality controlling?

A: 1) All raw material we used are environmental-friendly

   2) Skillful workers care every details in handling the producing and packing process

   3) Quality control department are specially responsible for quality in each process

We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.

4. Q: How about the after-sale service?

A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.

   2) To solve the problems with videos/pictures.

   3) One year warranty for spare parts change.
