hydraulic shaftless mill roll stand, corrugated paperboard production line

Share to:

hydraulic shaftless mill roll stand, corrugated paperboard production line

Availability:

Quantity:



Inquire Add to Basket

Type:
Packaging Line
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles
Packaging Type:
Cartons, Cans, Bottles, Barrel, Bags, Film, Belt, Case
Packaging Material:
Plastic, Wood
Automatic Grade:
Automatic
Driven Type:
Hydraulic
Voltage:
3 phase 380V50Hz customized
Place of Origin:
Hebei, China
Brand Name:
Xinglong
Dimension(L*W*H):
4000*2700*1000mm
Weight:
2T
Certification:
CE
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Key Selling Points:
Easy to Operate
Marketing Type:
Ordinary Product
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 YEAR
Core Components:
Gear, Engine
color:
you like
speed:
optional
type:
hydraulic shaftless mill roll stand
warranty:
one year
certification:
CE
package:
wooden cases or pallets
Usage:
Making Corrugated Cardboard
Packing material:
PE Film
After-sales Service:
Support Engineers Overseas Services

Product Description

hydraulic shaftless mill roll stand, corrugated paperboard production line

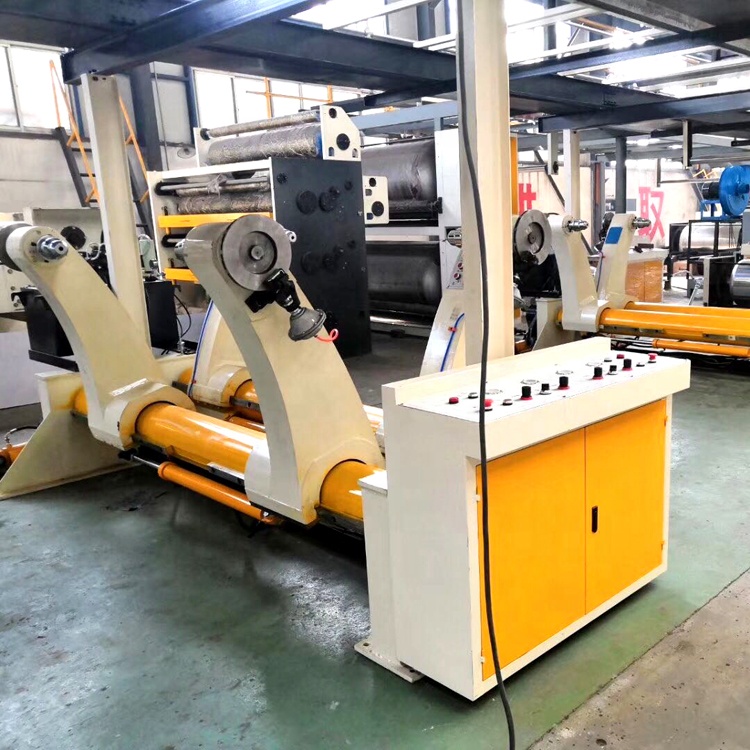

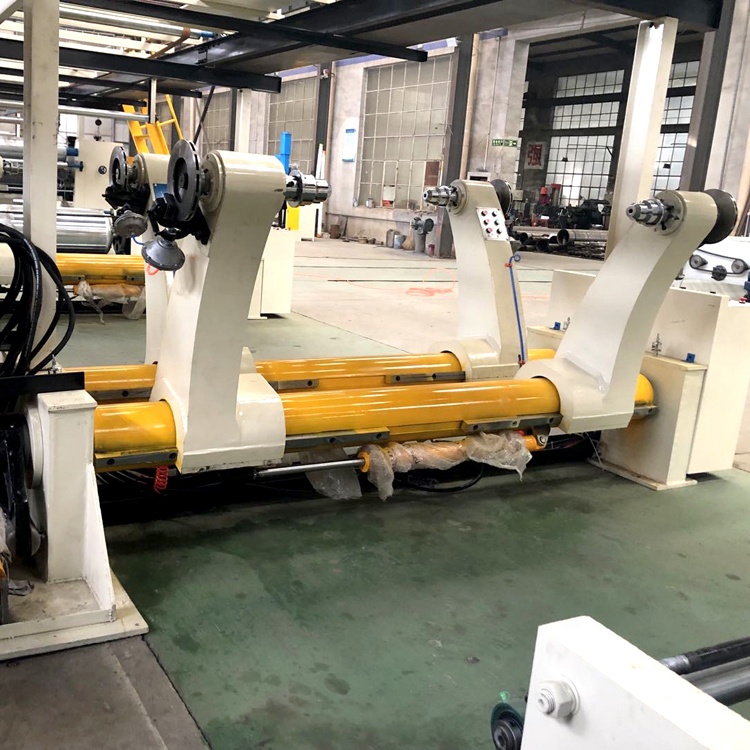

Hyraulic shaftless mill roll stand

Function and trait:

1.Max diameter of paper roll:1500mm

2.Effective width:1400-2200mm

3.Paper roll lift-lower, clamp, loosen, movement, contraposition, operated by hydraulic pressure. Feeding paper quickly.

4.Adopts pneumatic brake, the finial adopts taper style or bulge style.

hydraulic shaftless mill roll stand, corrugated paperboard production linehydraulic shaftless mill roll stand, corrugated paperboard production line

Item	Descriptioon
Swell design	When put paper coils ,mill roll stand shaft will swell to make sure the paper roll clamped , then can be working
chuck design	Tooth shape chuck . no need cylinder , just clamp the paper core two side is ok

•Product Description

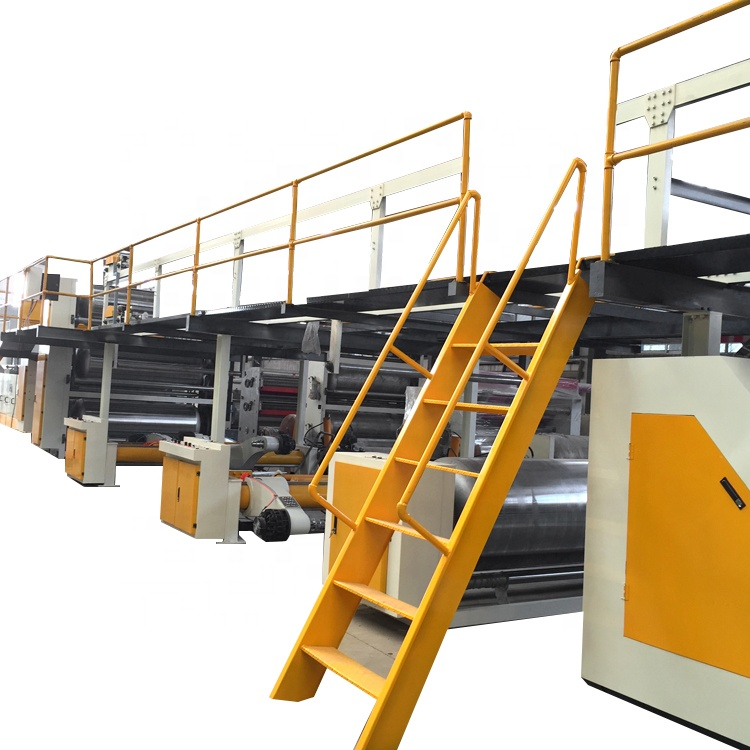

Corrugated cardboard production line is the professional equipment for producing corrugated cardboard .

The production line consists of the

Mill Roll Stand,

liner(medium paper )

Pre-heater,

Single facer machine ,

Conveyor bridge ,

Gluing Machine,

Double facer machine ,

Slitter Scorer ,

Cut-off ,

Conveyer and Stacker,

Heating System ,

Air compression system and

Glue Making System and so on.

We produced different grade 3,5,7 ply corrugated production line with different fitting. On the base of understanding the requirements of the customers and the advanced skills at home and abroad, our company has developed and designed these production lines with the speed 60~220m/min, the paper with 1600~2200mm and A,B,C,E UV flute production line can satisfy different customers.
