FAYZ1224
xinglong
Main specification:
Model | 1450X2400 |
Machine inside width(mm) | 2600 |
Max sheet size(mm) | 1450*2400 |
Max effective printing size(mm) | 1450*1200 |
Min. sheet size(mm) | 400*500mm |
Design Speed(pcs/min) | 200pcs/min |
Color No. | 4 color |
Standard Thickness of printing plate | 7mm |
Printing precision | ±0.5mm |
Thickness of cardboard | 1.2-11mm |
Total power | About 55kw |

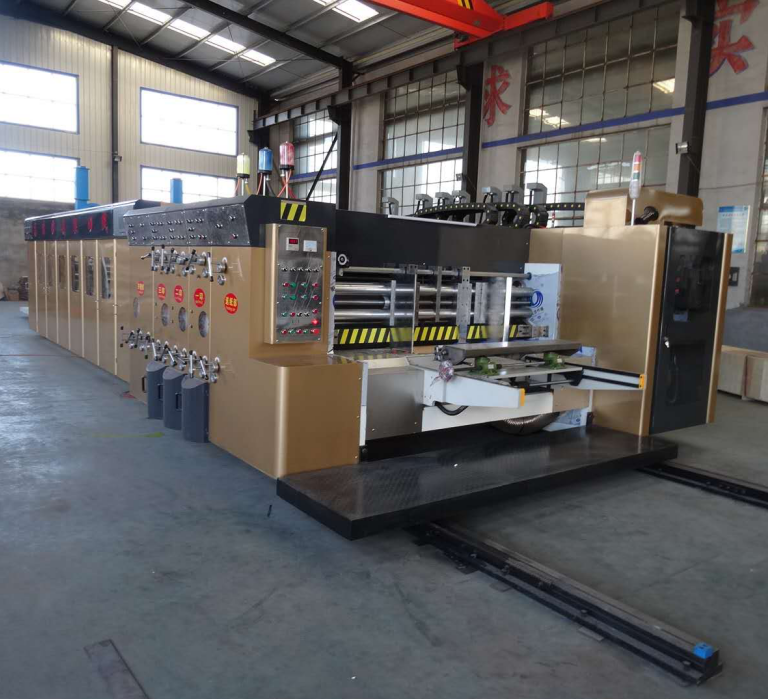

Automatic Flexo Printing Slotting Die Cutting Machine
Features:
l Designed according to high request and reliable function, humanization operation that can setting, revision, implement, changing and memories in short time, and display data.
l All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.
l Drive gears adopt high quality steel with heat treatment with grinded.
l The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
l Engineer oil automatic balance device, keep the oil level equal in each unit.
l Phase adopts electric digital adjusting with "automatic zero return" function(options: PLC control touch screen)
l Feeding type use lead edge or kick feeding.
l Main motor is VFD.
ZXJ-1000 Folder Gluer inline
ZXJ-1000 carton folder gluer is specially designed and manufactured for inline with printing, slotting, folding, gluing and stacking, it features automatic conveying, glue applying, folding, with multi-stages auto control. Adopt PLC control, touch screen interface, pre-storage and management of orders, Its high-speed production capacity, fast order-changing and good stability can meet the short lead times required for our carton customers.
Model | ZXJ-1450 |
Max design speed | 200pcs/min |
Max sheet size(mm) | 1450*2400 |
Min. sheet size(mm) | 350*750mm |
Suitable for cardboard | 3 ply , 5 ply corrugated cardboard |
Belts | Polyvinyl acetate emulsion PVA |
SP-1600 Auto Strapping Machine
Model | SP-2400 |
Max speed | 12 straps/min |
Air compressor | 6KG/CM2 |
Platform height | 850mm |
Belt width/thickness | 5-9mm/0.45-0.6mm |
Main specification:
Model | 1450X2400 |
Machine inside width(mm) | 2600 |
Max sheet size(mm) | 1450*2400 |
Max effective printing size(mm) | 1450*1200 |
Min. sheet size(mm) | 400*500mm |
Design Speed(pcs/min) | 200pcs/min |
Color No. | 4 color |
Standard Thickness of printing plate | 7mm |
Printing precision | ±0.5mm |
Thickness of cardboard | 1.2-11mm |
Total power | About 55kw |
Automatic Flexo Printing Slotting Die Cutting Machine
Features:
l Designed according to high request and reliable function, humanization operation that can setting, revision, implement, changing and memories in short time, and display data.
l All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.
l Drive gears adopt high quality steel with heat treatment with grinded.
l The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
l Engineer oil automatic balance device, keep the oil level equal in each unit.
l Phase adopts electric digital adjusting with "automatic zero return" function(options: PLC control touch screen)
l Feeding type use lead edge or kick feeding.
l Main motor is VFD.
ZXJ-1000 Folder Gluer inline
ZXJ-1000 carton folder gluer is specially designed and manufactured for inline with printing, slotting, folding, gluing and stacking, it features automatic conveying, glue applying, folding, with multi-stages auto control. Adopt PLC control, touch screen interface, pre-storage and management of orders, Its high-speed production capacity, fast order-changing and good stability can meet the short lead times required for our carton customers.
Model | ZXJ-1450 |
Max design speed | 200pcs/min |
Max sheet size(mm) | 1450*2400 |
Min. sheet size(mm) | 350*750mm |
Suitable for cardboard | 3 ply , 5 ply corrugated cardboard |
Belts | Polyvinyl acetate emulsion PVA |
SP-1600 Auto Strapping Machine
Model | SP-2400 |
Max speed | 12 straps/min |
Air compressor | 6KG/CM2 |
Platform height | 850mm |
Belt width/thickness | 5-9mm/0.45-0.6mm |
