Packaging Line
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Printing Shops, Construction works , Food & Beverage Shops, Advertising Company
Video technical support, Online support, Spare parts, Field maintenance and repair service
None
None
New
Apparel, Commodity, Food, Machinery & Hardware, Beverage, Medical, Chemical, Textiles, Other
Film, Case
Plastic, Wood
Automatic
Electric
380V 50HZ
Hebei, China
xinglong
Depends
25000kg
CE Certification
1 YEAR
Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Energy saving
Ordinary Product
Provided
Provided
1.5 years
Gear, Engine
Automatic Corrugated Carton Packing Machine
Making Carton
Vacuum Suction
Optional
120m/min
FAY1224
Touch Screen Operation
Engineer Guide
Touch Screen Control

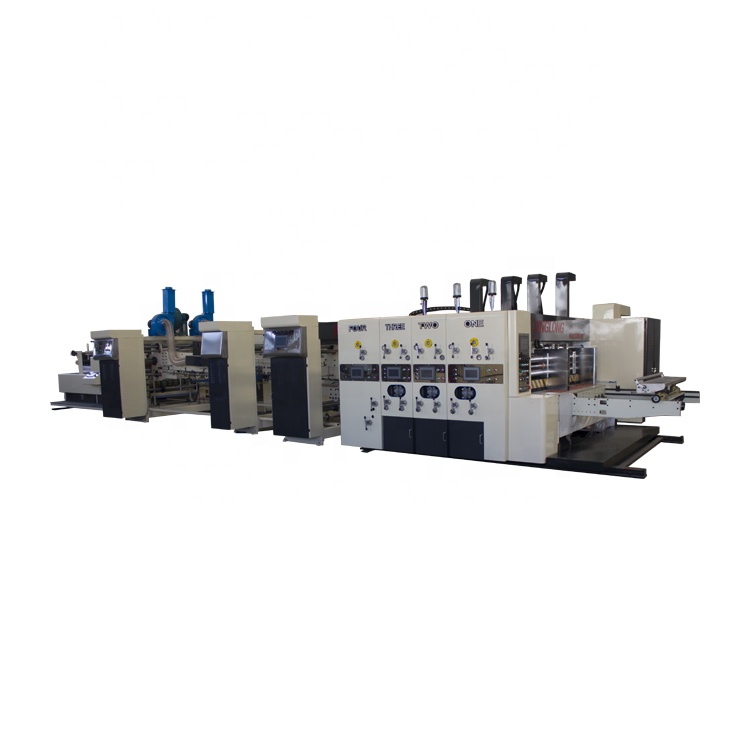

full automatic carton machine Flexo Printing Folder Gluing &Strapping in line
The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, gluing and so on.
Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .
All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.
Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
Motorized digital phase adjustment with "automatic zero return" and "memories" function ( options: PLC control with touch screen)
The machine adopts lead edge (or kick feeding), low demand for the cardboard, fast.
Main motor is VFD, working stability, low power consumption.
Model | 1450X2400 |
Machine inside width(mm) | 2600 |
Max sheet size(mm) | 1450*2400 |
Max effective printing size(mm) | 1450*1200 |
Min. sheet size(mm) | 400*500mm |
Design Speed(pcs/min) | 200pcs/min |
Color No. | 4 color |
Standard Thickness of printing plate | 7mm |
Printing precision | ±0.5mm |
Thickness of cardboard | 1.2-11mm |
Total power | About 55kw |
full automatic carton machine Flexo Printing Folder Gluing &Strapping in line
The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, gluing and so on.
Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .
All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.
Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
Motorized digital phase adjustment with "automatic zero return" and "memories" function ( options: PLC control with touch screen)
The machine adopts lead edge (or kick feeding), low demand for the cardboard, fast.
Main motor is VFD, working stability, low power consumption.
Model | 1450X2400 |
Machine inside width(mm) | 2600 |
Max sheet size(mm) | 1450*2400 |
Max effective printing size(mm) | 1450*1200 |
Min. sheet size(mm) | 400*500mm |
Design Speed(pcs/min) | 200pcs/min |
Color No. | 4 color |
Standard Thickness of printing plate | 7mm |
Printing precision | ±0.5mm |
Thickness of cardboard | 1.2-11mm |
Total power | About 55kw |
