full automatic Flexo Printing die cutting Folder Gluing & Strapping in line carton production line

Availability:
Quantity:
  • Other

  • 1 YEAR, 1 year

  • Manufacturing Plant, Food & Beverage Factory, Farms, Printing Shops, Advertising Company

  • Video technical support, Online support, Spare parts, Field maintenance and repair service

  • None

  • None

  • New

  • Apparel, Commodity, Food, Machinery & Hardware, Beverage, Medical, Chemical, Textiles, Other

  • Film, Case

  • Plastic

  • Automatic

  • Electric

  • 380V 50HZ

  • 30kw

  • Hebei, China

  • xinglong

  • 25000kg

  • Depends

  • CE Certification

  • Energy saving

  • Engineers available to service machinery overseas

  • printing gluing linkage line

  • film

  • FAYMZ -1224

  • 120/150pcs/min

  • print ,die-cutting,gluing

  • lead edge

  • full automatic

Product Description
full automatic Flexo Printing die cutting Folder Gluing & Strapping in line carton production line


Model

1450X2400

Machine inside width(mm)

2600

Max sheet size(mm)

1450*2400

Max effective printing size(mm)

1450*1200

Min. sheet size(mm)

400*500mm

Design Speed(pcs/min)

200pcs/min

Color No.

4 color

Standard Thickness of printing plate

7mm

Printing precision

±0.5mm

Thickness of cardboard

1.2-11mm

Total power

About 55kw

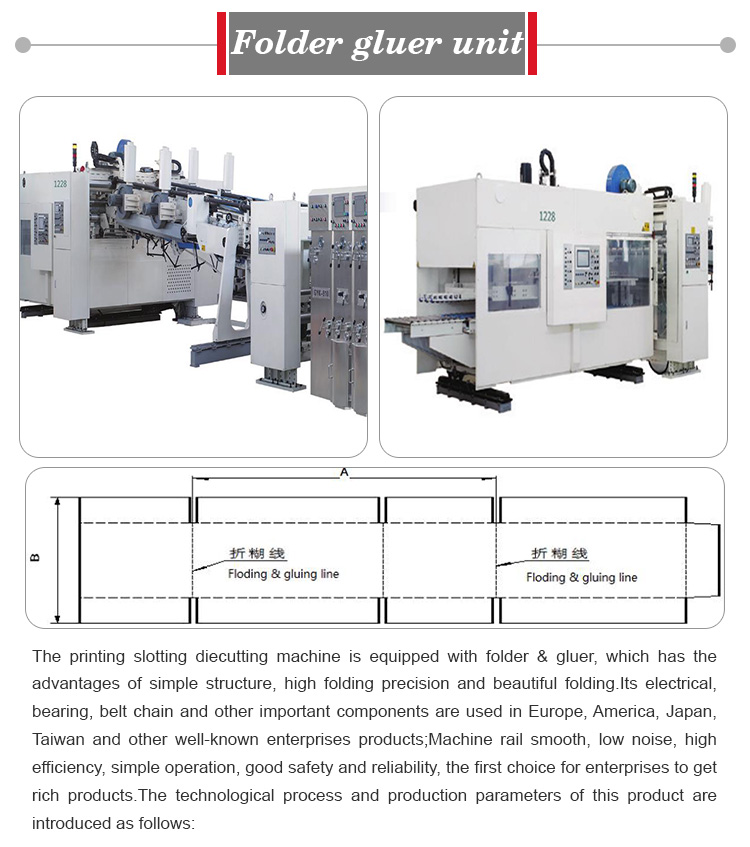

ZXJ-1000 carton folder gluer is specially designed and manufactured for inline with printing, slotting, folding, gluing and stacking, it features automatic conveying, glue applying, folding, with multi-stages auto control. Adopt PLC control, touch screen interface, pre-storage and management of orders, Its high-speed production capacity, fast order-changing and good stability can meet the short lead times required for our carton customers.

Model

ZXJ-1450

Max design speed

  200pcs/min

Max sheet size(mm)

1450*2400

Min. sheet size(mm)

350*750mm

Suitable for cardboard

3 ply , 5 ply corrugated cardboard

Belts

Polyvinyl acetate emulsion PVA

SP-1600 Auto Strapping Machine


Model

SP-2400

Max speed

12 straps/min

Air compressor

6KG/CM2

Platform height

850mm

Belt width/thickness

5-9mm/0.45-0.6mm
