| Quantity: | |
|---|---|
Other, folder gluer machine/semi-auto corrugated box making machine
Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Food Shop, Energy & Mining
New
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles
Film, Case
Plastic, Paper, Wood
Semi-Automatic
Electric
380v50hz customized
8kw
Hebei, China
Xinglong
about 2T
customized
CE
Energy saving
60pcs/min
customized
one year
wooden cases, wooden pallets
PE Film
ZXJ2400
Making Carton
High Effieciency
Esay Operation
Engineers available to service machinery overseas

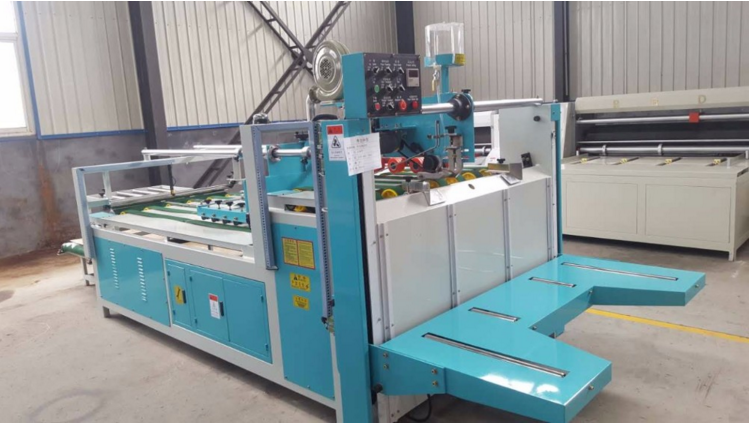

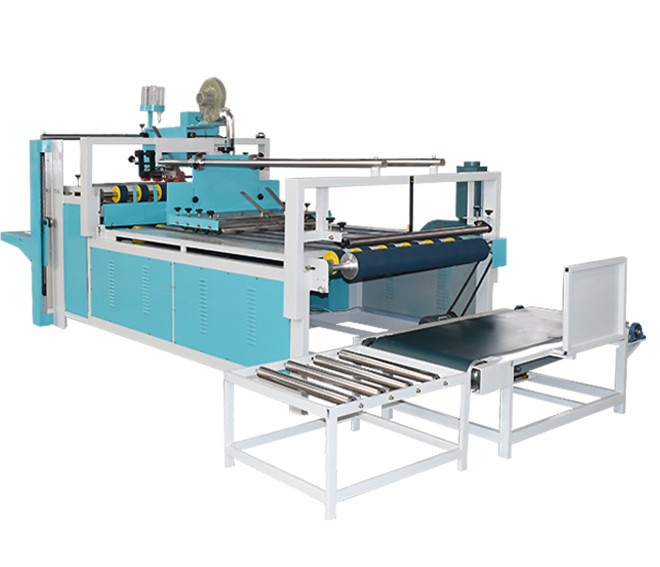

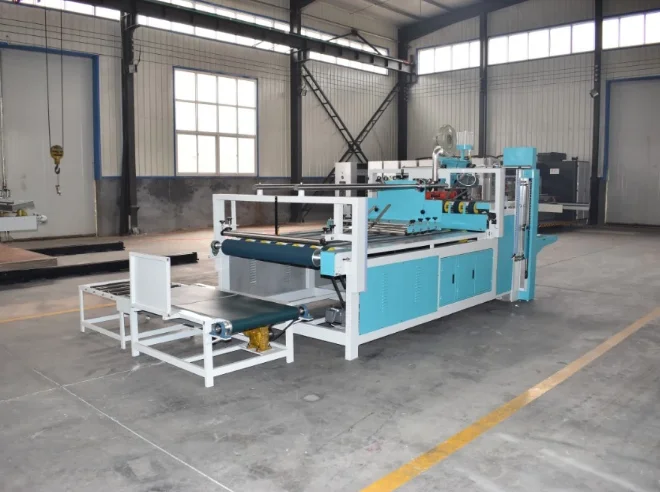

folder gluer machine/semi-auto corrugated box making machine

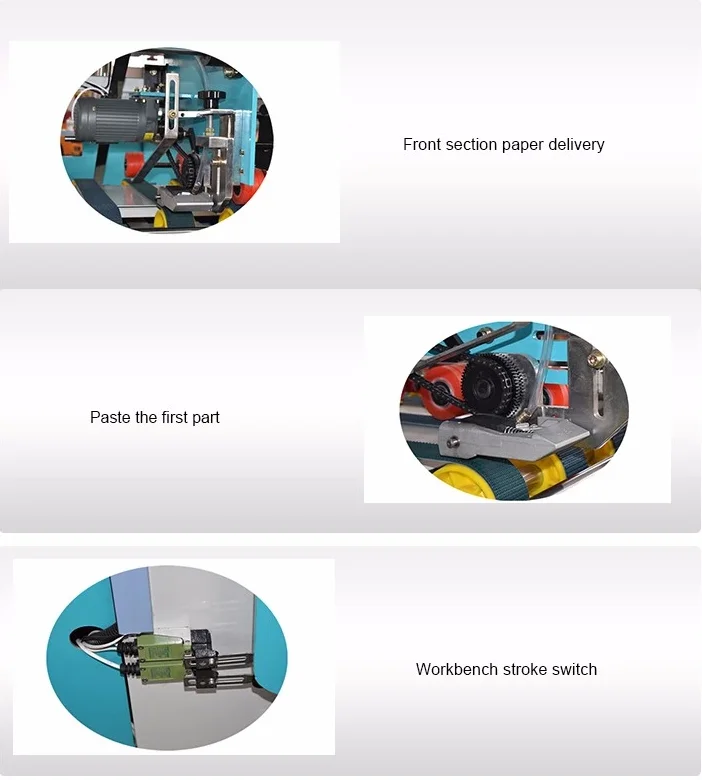

Function and Characteristics: This machine is the last process equipment of the carton folding, it is used to combination of 3 and 5 layer corrugated cardboard production line( if need to glue 7 layer cardboard, we also can produce according customers’ appointed). Efficiency and production is attractive. The prominent advantage is low cost , strong adhesion, simple operating, saving labor and electric, runs smoothly, it is idea equipment for exporting advanced carton.. 1. Working table Photoelectric control the feeding, reduce labor and improve work efficiency. 2. Press correction After gluing and the second pressing to the bonder is smooth and firm. Equipped automatic correction device to make the carton size is correctly, and effectively avoid knife and fork phenomenon Fan airing function Counting output devices and with the photoelectric correlated mechanism, When reaching to the const carton, it outputs automatically. 3. Horizontal Output Press counting output signal, then work automatically, stacking and strapping conviently. 4.Main spare parts Gear reducer is known brand from China Electricity components from “Chint” Conveyor belt is made in XINBEX PLC from Delta. The whold gluing head usd of imported material with finish process, wear-resisting, correction resisting, easy to clean. | ||||||||||||||||||||||
Technology Parameter
|
folder gluer machine/semi-auto corrugated box making machine
Function and Characteristics: This machine is the last process equipment of the carton folding, it is used to combination of 3 and 5 layer corrugated cardboard production line( if need to glue 7 layer cardboard, we also can produce according customers’ appointed). Efficiency and production is attractive. The prominent advantage is low cost , strong adhesion, simple operating, saving labor and electric, runs smoothly, it is idea equipment for exporting advanced carton.. 1. Working table Photoelectric control the feeding, reduce labor and improve work efficiency. 2. Press correction After gluing and the second pressing to the bonder is smooth and firm. Equipped automatic correction device to make the carton size is correctly, and effectively avoid knife and fork phenomenon Fan airing function Counting output devices and with the photoelectric correlated mechanism, When reaching to the const carton, it outputs automatically. 3. Horizontal Output Press counting output signal, then work automatically, stacking and strapping conviently. 4.Main spare parts Gear reducer is known brand from China Electricity components from “Chint” Conveyor belt is made in XINBEX PLC from Delta. The whold gluing head usd of imported material with finish process, wear-resisting, correction resisting, easy to clean. | ||||||||||||||||||||||
Technology Parameter
|
