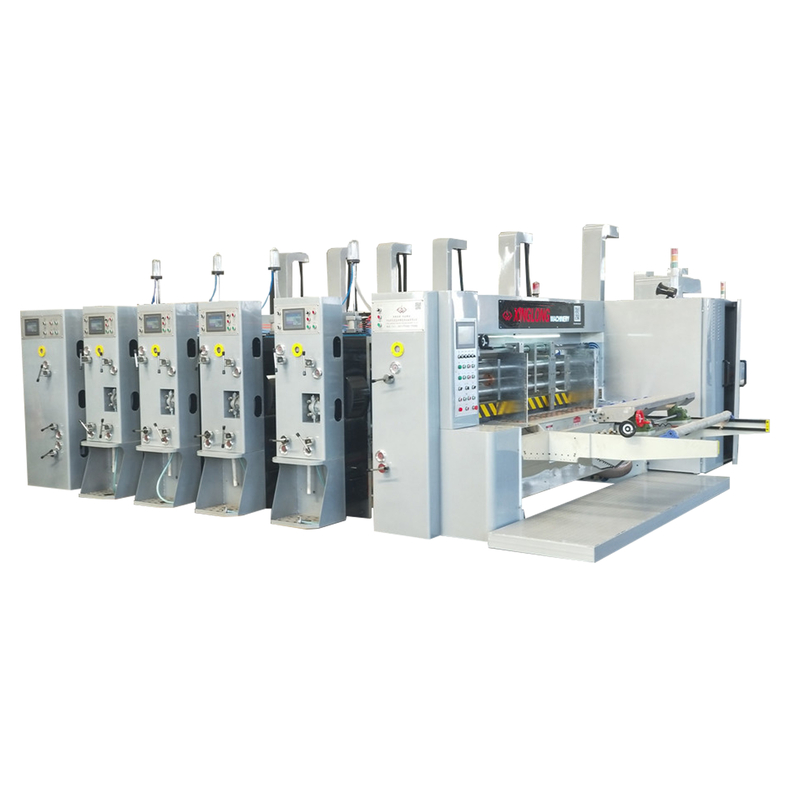

corrugated carton flexo printing machine




Function and Characteristics

lDesigned according to high request and reliable function, humanization operation that can setting, revision, implement, changing and memories in short time, and display data.

lAll of drive rollers are made of high quality steel, quenching and high temperature tempering, hard chrome plated the surface with grinded.

lDrive gears adopt high quality steel with heat treatment and grind, accurately, lower noise.

lThe main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.

lEngineer oil automatic balance device, keep the oil level equal in each unit.

lFull Computer control system PLC combine with touch screen set size regulating phase and so on. It can remember and save order function.

lAll roller gas adjusted by PLC with touch screen control.

lIt adopts roll type lead edge feeding.

lMain motor is VFD, die-cutting unit equipped one independently servo motor driving. Feeding unit

nAdopts roller type lead edge feeding combined with vacuum system. Adjust wind volume according on cardboard bending degree to ensure feeding paper smoothly.

nMain motor start protecting device, when the machine units not be clocked, machine can’t run.

nDouble feeding rubber roller, the rubber roller has slot for prevent the overlarge pressure.

nFront feeding rubber roller with air cylinder cushioning device, feeding accurately and stable, will not destroy the hardness of the cardboard when the feeding space is small.

nThe side baffles adopt motorized digital control. The back baffle box be adjusted by motorized, the front baffles space adopts manual adjustment.

nWith brush dust-remove device with dust-absorption blower. Can adjust the wind volume accord the cardboard size.

nElectric control units separation with warming belt, to ensure worker safe.

nElectric counting device set production quantity, when complete the production automatically warm( if use touch screen control, adjust quantity though touch screen directly)

Printing unit

nThe printing roller used of stemless steel pipe do quenching and high temperature tempering, the surface be grinded, hard chrome plated, balance correction, running smoothly.

nWith quickly change printing plate device, when load or unload printing plate, foot switch electric control roller run clockwise or anticlockwise.

nThe feeding roller, impression roller, rubber roller and anilox roller space adjusted by self-locking device.

nPrinting and phase fixed device, pneumatic brake. When units separating or cleaning, braking mechanism limit gear running, keep original gear’s position.

nThe anilox roller adopt automatic pneumatic up-down device( when feeding, anilox roller down automatically according to order, when stop, anilox roller lift according order)

nAdopts pneumatic diaphragm pump inking, automatically recycle, water cleaning.

nWith “clean printing plate” function, after washing the printing plate, the printing roller will back to the original printing position.

lDie-cutting unit

n The rubber roller adopts mechanical screw type horizontal movement, the movement distance is 50mm, with double case.

nUsed computer with PLC adjust phase of die roller, set box size and so on.

nThe space adjustment between rubber roller and die roller adopt self-locking device, and with air cylinder adjust quickly in large range, reduce rubber destroy, prolong rubber use life.

nFeeding roller spaces adjusting adopts self-locking device.

nSpeed compensation device can make the rubber roller slipping follow die roller, thereby, the rubber surface speed controlled by knife die. So that the carton shape is same as knife die.

Equipped with rubber repair device, the rubber can be used after be repaired.

nWith steel slotting ring that 4ring adjusted together.

lStacking Unit

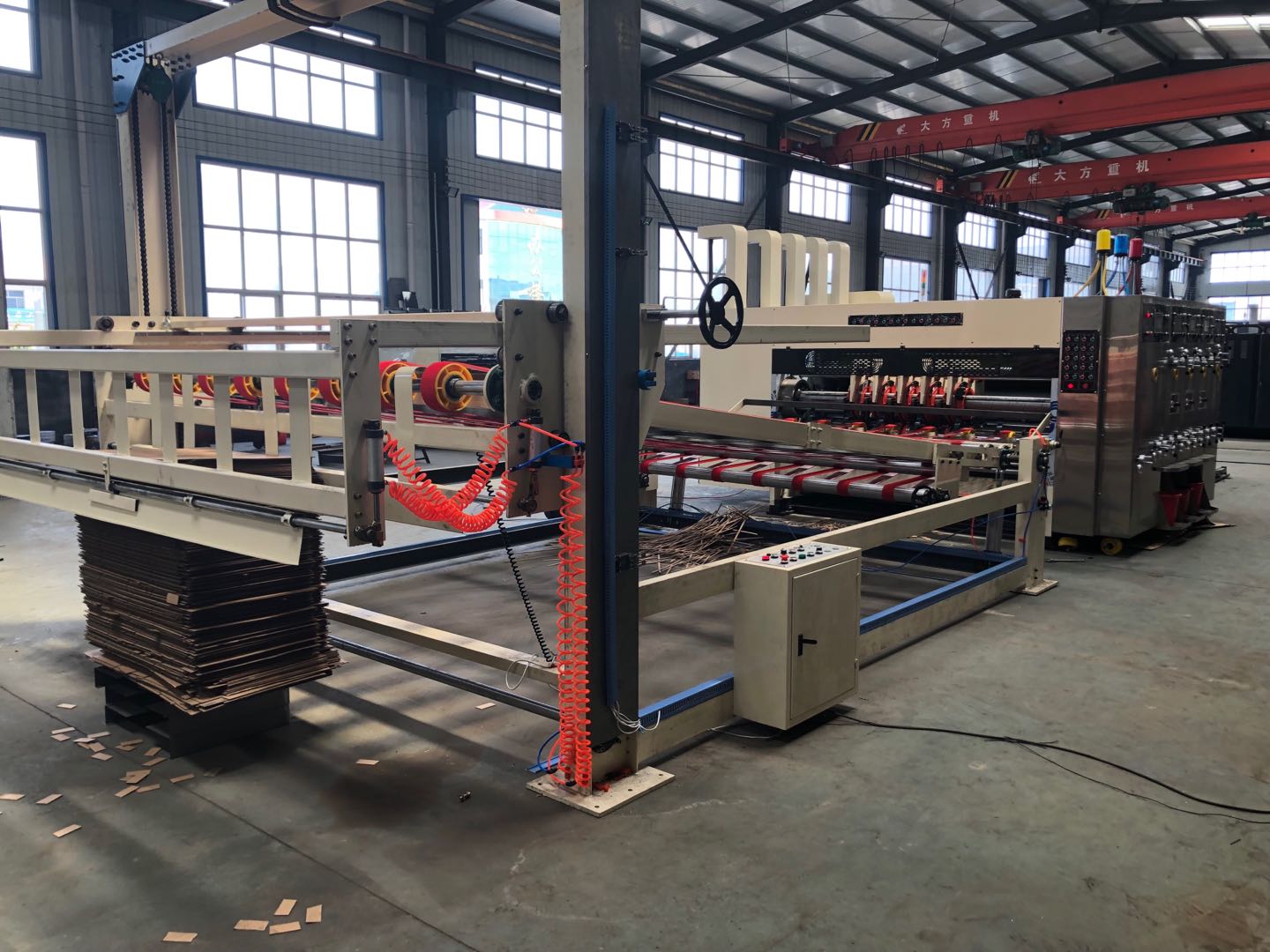

nThe paper catching arm can be automatically operated or by hand. Installed with safety mechanism to prevent the paper catching arm from sudden dropping and to ensure the safety of the operating personal.

nThe lathe platform rising up and dropping down is driven by the power chain.

nWith rising of the card board piles the lathe platform can automatically regulate the tilting height. The elevator attaches the brake function to make the lathe platform to keep the fixed position and not to slide.

nPneumatic paper lifting mechanism. When the card board have piled to the planned height, the paper catching holding plate will be open automatically, the pedestal will hold the card boards.

nThe surface corrugation leather belt can prevent the Cardboard to slide.

nImported electric parts.

Model number Of corrugated carton 3 color printing lead edge die cutting machine
2300mm*φ405mm
Inside width
2300mm
Rollers diameter
405mm
Max paperboard size
2100*1200mm
Max printing size
2000*1200mm
Max die cutting size
2000*1200mm
Min paperboard size
400*600mm
Design speed
180piece/min
Max Slotting size
7*300mm
Main motor power
9kw
Draught fan power
7.5kw
Production power
16.5kw
Total power
27kw
Printing precision
±0.5mm
Slotting precision
±1mm
Weight approximately
20Tons
Machine overall size
6000*4500*2000mm
Machine overall size with stacker
13200*4500*3000mm
