corrugated carton box machine/milk carton packing machine

Quantity:
  • Packaging Line
  • Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction works , Food & Beverage Shops
  • Video technical support, Online support, Spare parts, Field maintenance and repair service
  • None
  • None
  • New
  • Apparel, Chemical, Commodity, Food, Medical, Beverage, Machinery & Hardware, Textiles
  • Cans, Barrel, Stand-up Pouch, Film, Foil, Belt
  • Plastic, Wood
  • Automatic
  • Electric
  • 3Ph 380/410/440v 50hz customized
  • Hebei, China
  • Xinglong
  • customized
  • about 120T
  • CE certificate
  • 1 YEAR
  • Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
  • Long Service Life
  • Ordinary Product
  • Provided
  • Provided
  • 1 YEAR
  • Gear, Engine
  • 80, 120, 150, 220m/min
  • optional
  • container
  • corrugated carton box machine/milk carton packing machine
  • one year
  • 3,5,7layer
  • Corrugated Paperboard Making Machine
  • 100m/min
  • PE Film

corrugated carton box machine/milk carton packing machine


Product Description

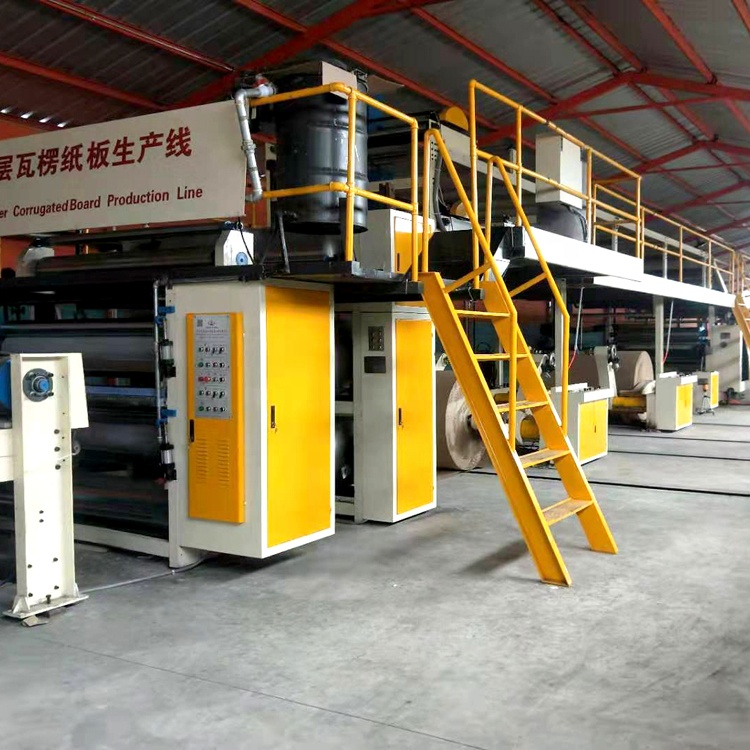

Corrugated cardboard production line is the professional equipment for producing corrugated cardboard .The production line consists of the Mill Roll Stand, liner(medium paper ) Pre-heater, Single facer machine ,Conveyor bridge , Gluing Machine, Double facer machine , Slitter Scorer , Cut-off , Conveyer and Stacker, Heating System ,Air compression system and Glue Making System and so on. We produced different grade 3,5,7 ply corrugated production line with different fitting. On the base of understanding the requirements of the customers and the advanced skills at home and abroad, our company has developed and designed these production lines with the speed 60~220m/min, the paper with 1600~2200mm and A,B,C,E UV flute production line can satisfy different customers.


. Design speed: 100m/min.,150m/min.,200m/min.,250m/min.,
. Expiry width: 1400mm, 1600mm, 1800mm, 2000mm, 2200mm, 2500mm,
. Flute type: UV shape and A,B, C, E ,F, N flute for all the customers to choose
. Heating method: Electric heat, Oil heat, Steam heat and Gas system

Main equippment list
1. mill roll stand (mechanical and hydraulic shaftless is available)
2. splicer(option, it is used for high speed production line)
3. single facer
4. Preheater
5. Multi-preheater
6. Gluing machine
7. Double facer
8. Thin blade slitter scorer(simple type, up-down type, and computer control for options)
9. NC cut-off(servo control, straight and helical)
10. Stacker and delivery machine
11. Paste making system
12. Accessories(air compressor, operation box, pipe)

Model
WJ100-1800
Effective width
1800
Design speed
100m/min
working speed
80m/min
Total power
About 150kw
Total length
about 80m
