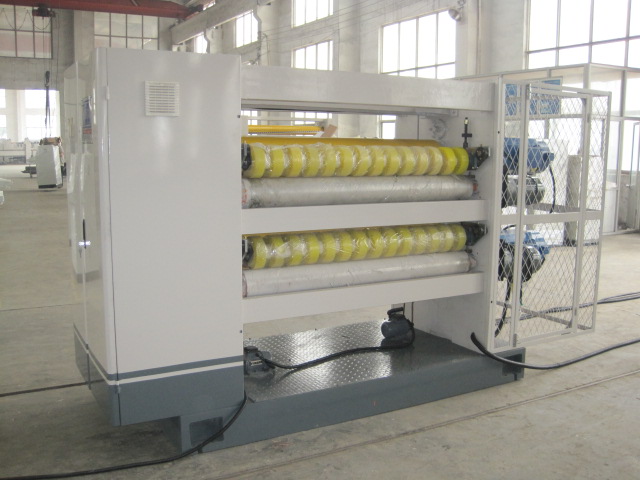

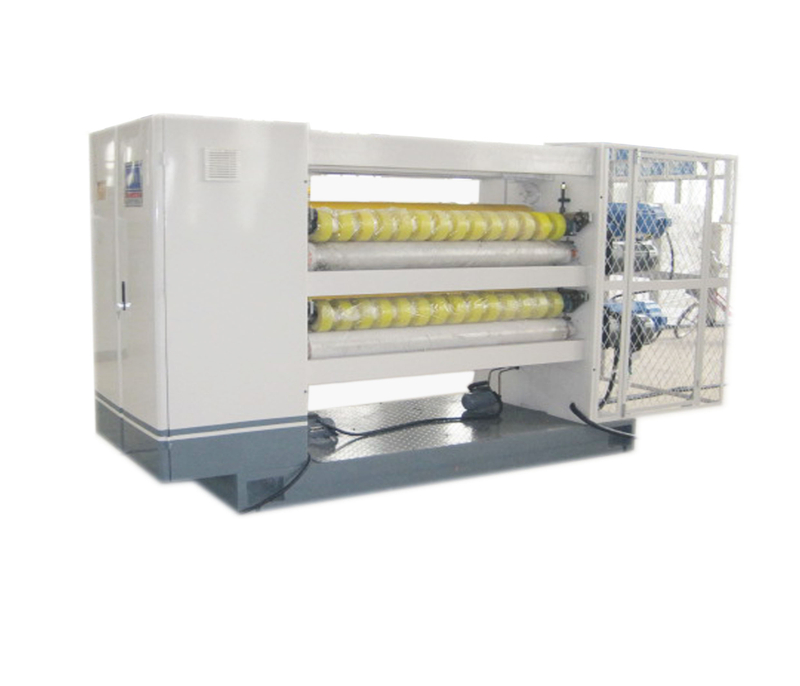

corrugated cardboard double layers NC cut-off machine

Quantity:
  • Other, Packing Machine
  • Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Printing Shops
  • New
  • Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles, make cardboard
  • Film, Case
  • Plastic, Wood
  • Automatic
  • Electric
  • 380V; 50Hz
  • 30kw
  • Hebei, China
  • xinglong
  • 3500kg
  • 2600*1500*1600
  • CE BV
  • 1400-2000mm
  • customized
  • 500mm-9999mm
  • 12months
  • Simple / 1 Person
  • Cardboard Production Line
  • 120m/min
  • Computer
  • Engineers available to service machinery overseas

Double cut-off corrugated packing machine

Uses and features

1. Effective width: 1400-2000mm;

Design speed: 0-150m/min;

Length of cutting cardboard: 500-9999mm,

Precision of cutting cardboard: ±1mm(uniform speed)

2.Computer can reserve many groups of orders, workers and machine are separate, 7 inch Color touch screen display various production message

3.Adopt high quality AC servo motor, servo control motor drive (KEB in Germany), color touch screen display.

4. Main motor set outside, connect with driving gear shaft, adopt diaphragm coupler.

5. Adopt inlay high-speed steel flat blade, high hardness and long service life.

6.Drive gear adopt 40Gr, after quenching and tempering, the gear surface quenching and grinding, closely installation, spray lubrication.

7.Remember meters wheel and up pressure roller rise by pneumatic, easy operation.

8.Paper deliver adopt independent frequency conversion control, synchronous belt drive, sun wheel pressure paper.

Machine width

1600mm

Design speed

130m/min

Economy speed

100-120m/min

Cutting length

500-9999mm

Cutting precision

±1mm(even speed)

Total power

25 kw
