automatic printer slotter die cutter for corrugated colorful carton

Quantity:
  • Packaging Line
  • New
  • Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
  • Cartons
  • Paper
  • Automatic
  • Electric
  • 380v/410v/440v 50Hz
  • about 20kw
  • Hebei, China
  • XINGLONG
  • XL
  • Machine model
  • about 12tons
  • CE
  • OPTIONAL
  • Engineers available to service machinery overseas

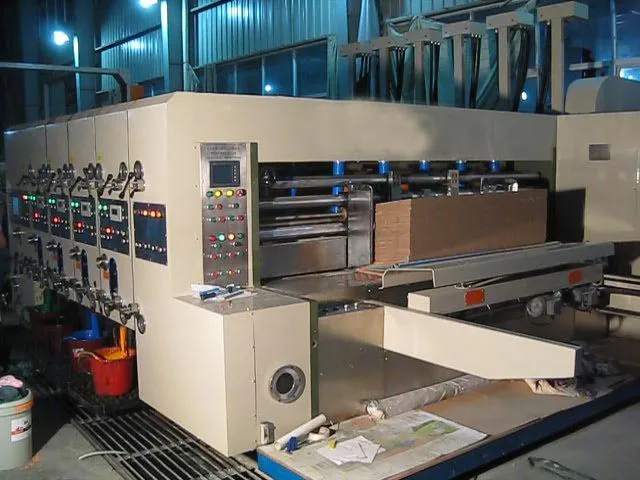

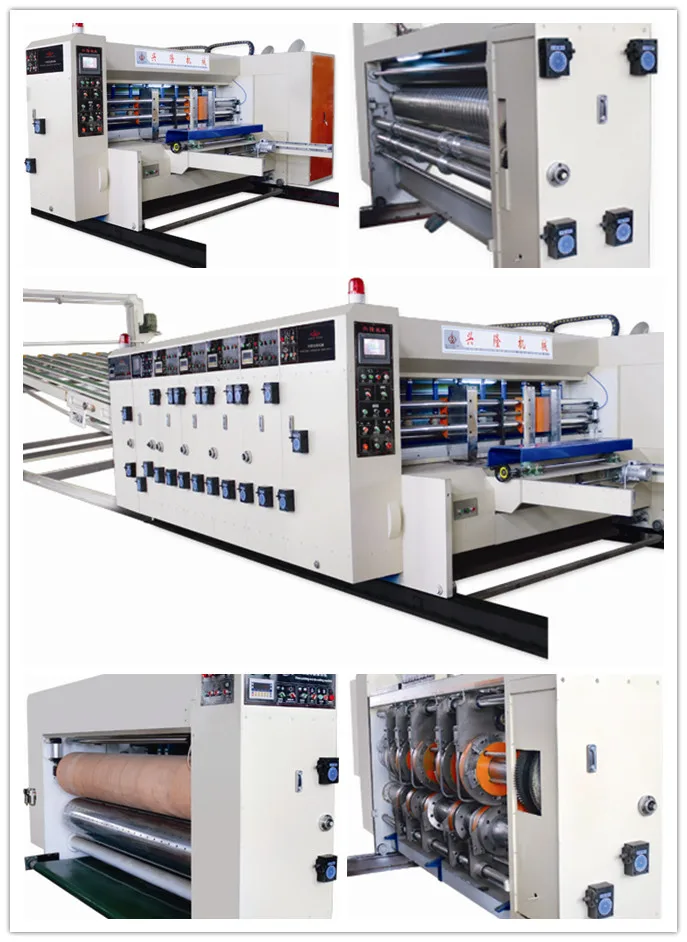

Automatic printing slotting and die cutting machine

This production can finish cardboard though many working procedure of 1-5 colors printing, disport, crossing , trimming, slotting, cut horn, die cutting, hit hole in one time. Lead edge feeding system, use negative pressure adsorption, blowing rate can adjust, main motor use VFD, electric phase, pneumatic lock, electrical divides, pneumatic lift version, electric line cutter, electric carton height adjustment, sprinkle lubricating system, it has color register accuracy, printing design beautiful, using and convenient maintenance.

Main technology parameter:

Parameter

Model

1300*2000

1300*2200

1300*2400

Max.machinery speed (pcs/min)

120

Economic printing speed (pcs/min)

100

Max. sheet size (mm)

1300*2200

1300*2400

1300*2600

Min. sheet size (mm)

380*500

Min. slotting space (mm)

160*160*160*160 (Obverse knife)

280*80*280*80 (Reverse knife)

Max. slotting depth (mm)

320

Max. sheet thickness (mm)

12

Max. printing area (mm²)

1300*2000

1300*2200

1300*2400

thickness of standard

printing plate (mm)

6

Feeding unit

1. Adsorption fan assist lead edge feeding type, make sure to feed the paper smoothly.

2. Head board use manual adjustment. Side boards use electric adjustment.

3. skip cardboard feeding structure, can according to requirements choose continuous or skip

cardboard feeding

4. Sprinkle lubricating transmission system.

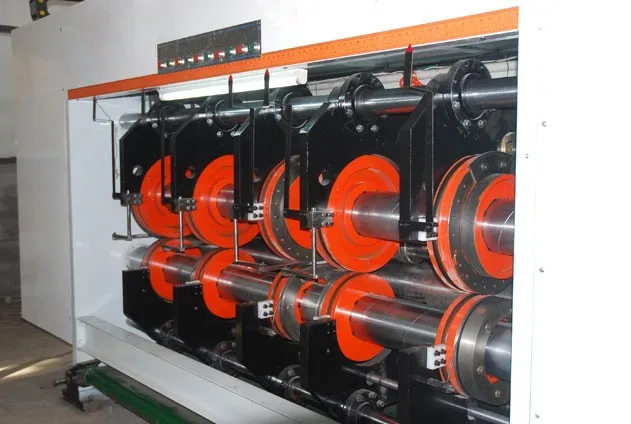

Printing unit:

1. Metal steel anliox roller, anliox roller and gluing roler with quickly changing device, use ceramic

anliox roller.

2. With quickly change printing plate device and hang plate.

3. Printing phase adjustment, use facia and digital display. use PLC touch screen control.

4. Phase structure use planet gear adjustment structure, accuracy high, using long life.

5. with auto brake, When units separating or phase adjustments, limit cabinet running, keep

original gear’s position

6. manual axial location adjustments, adjustment distance±7 mm.

7. With anilox roller pneumatic lifting device, when stop feeding paper, anliox lift parting with

printing plate.

8. Space adjustment use quickly adjustment device.

9. Computer control with low ink warning, after washing the printing plate, automatic reset system.

10. Sprinkle lubricating transmission system.

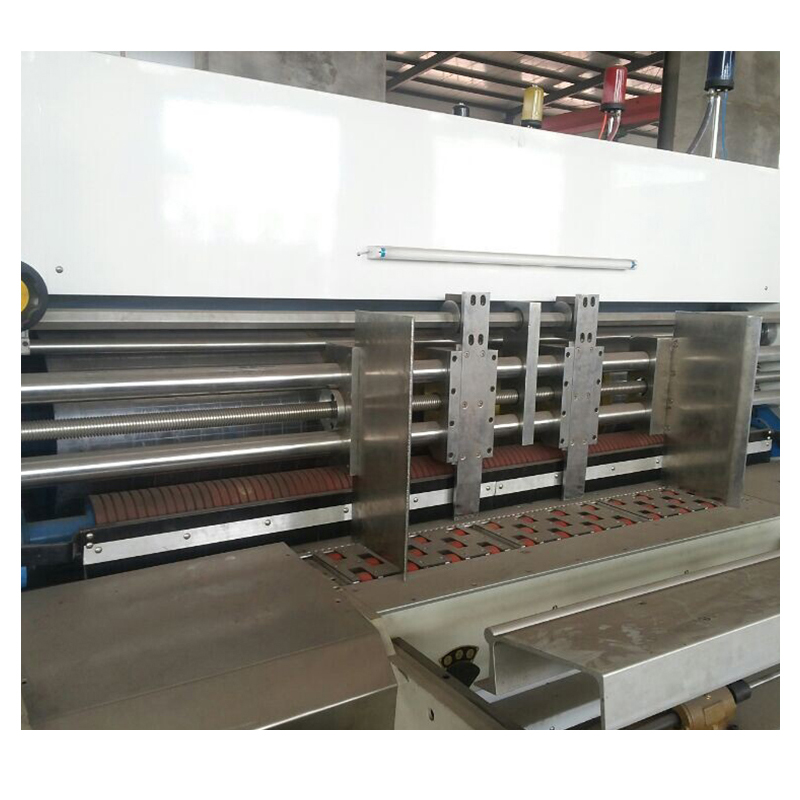

Slotting unit

1. Trimming, roll line, slotting, cut horn in one time.

2. Slotting, roll line manual and linkage adjuastments device.

3. Phase adjustment use facia and digital display. use touch screen control.

4. Phase structure use planet gear adjustment structure, using long life.

5. Can choose synchronous carton height adjustment device.

6. Slotting pedestal axial movement can use electric or manual.

7. Carton height structure use electric adjustments, facia and digital display. use touch screen

control.

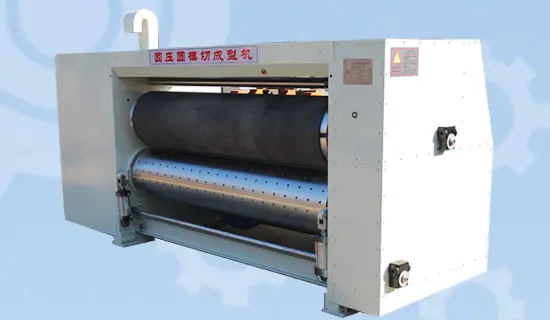

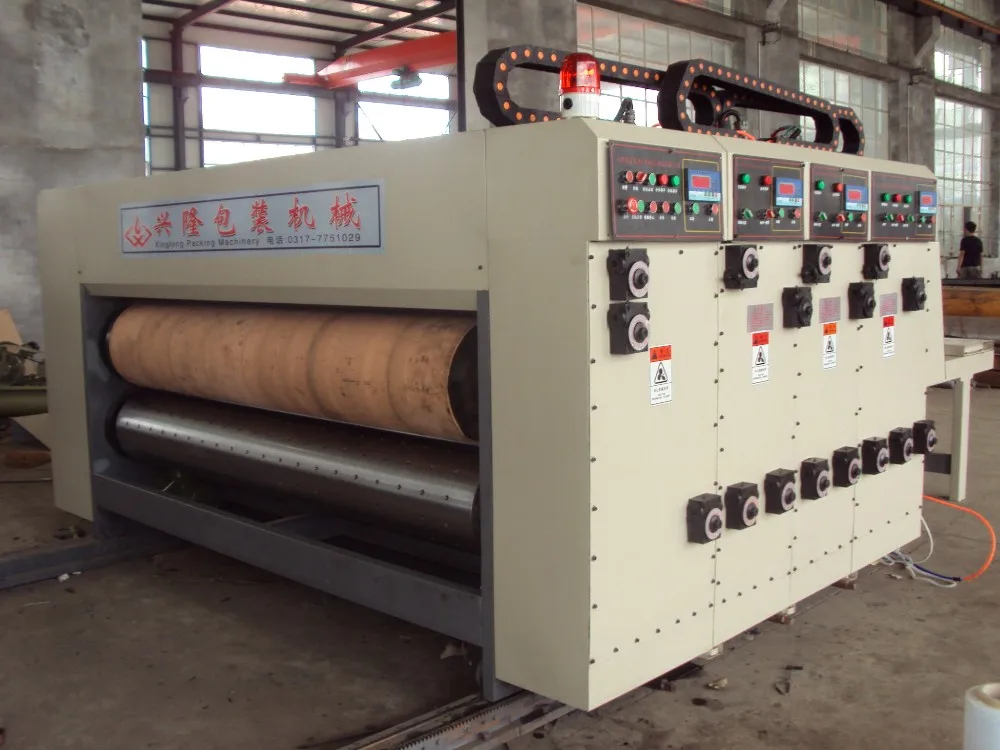

Die cutting unit

1. This machine can use blade slotting, die cutting quickly exchange

2. Steel cylinder, the surface be grinded, hard chrome plated.

3. Rollers move balance correction, running smoothly.

4. The rubber roller use axis automatic swimming device, moving distance is ±35mm.

5. The rubber roller use axis automatic differential device, balance up and down roller line speed,

increase the rubber life.

6. Die cutting phase adjustments, use facia and digital display, use PLC, touch screen control.

7. phase structure use planet gear adjustment structure, accuracy high, using long life.

8. Space adjustment use manual quickly adjustment device.

9. Die cutting roller equipped with automatic move transmission.

10. Sprinkle lubricating transmission system.

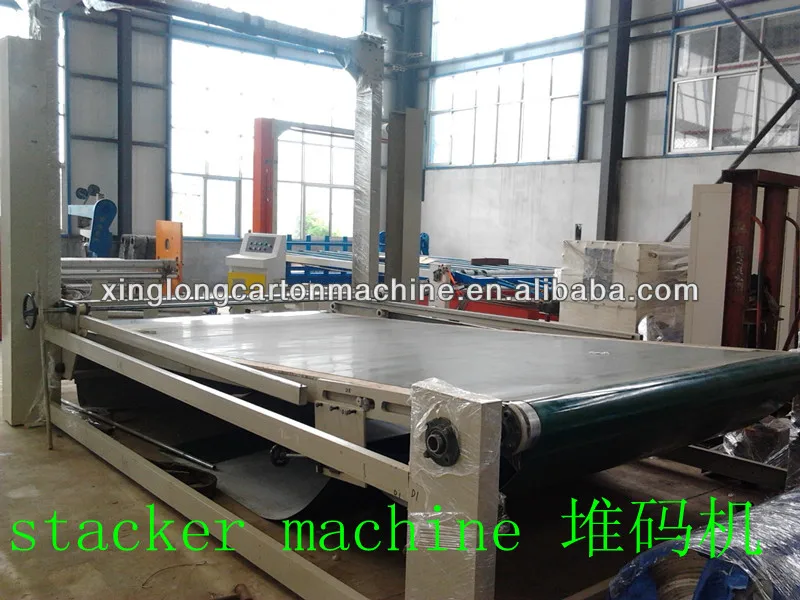

Stacker unit

1. Receiving cardboard arm can use automatic or electric control.

2. Receiving arm leather belt adjust loose and tight independently

3. Receive terrace lift use strong chain movements.

4. Receive terrace according to cardboard stacking automatic adjust

tilt height, lift horse power with electric brake, terrace can stay in the fixed place.

5. Receive cardboard supporting plate pressure action, when cardboard stack into reservation

height, receiving plate supporing automatic, support cardboard.

6. stacking height is 1500 mm.


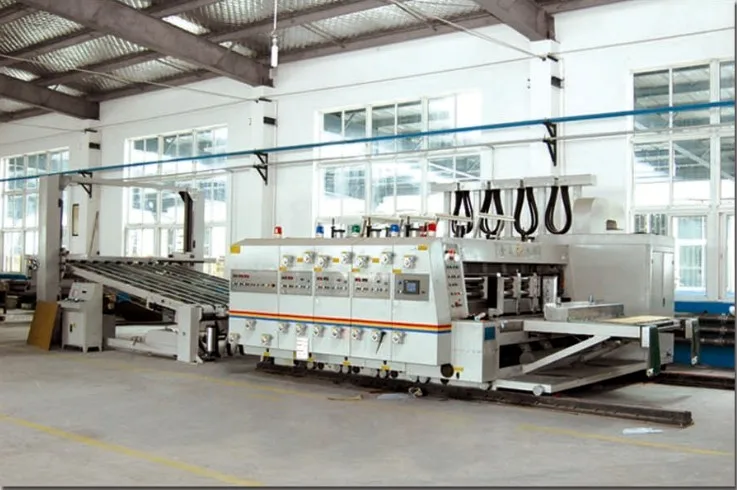

• Our factory is a professional corrugated cardboard carton box making machines manufacturer

for over 20 years.

• We can provide every customer superior quality products at competitive price.

• If you have any interests about the machine, please feel free to contact me.
