Other
1.5 years
Manufacturing Plant
Video technical support, Online support, Spare parts, Field maintenance and repair service
None
None
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles
Cartons, Film
Plastic
Automatic
Electric
220,380,440
40kw
China
xinglong
30T
CE
Field installation, commissioning and training, Engineers available to service machinery overseas
Energy saving
carton production line
120boxes/min
Easy Operation
Fast Speed
PLC+Transducer
White Customized
Complete Processing Line

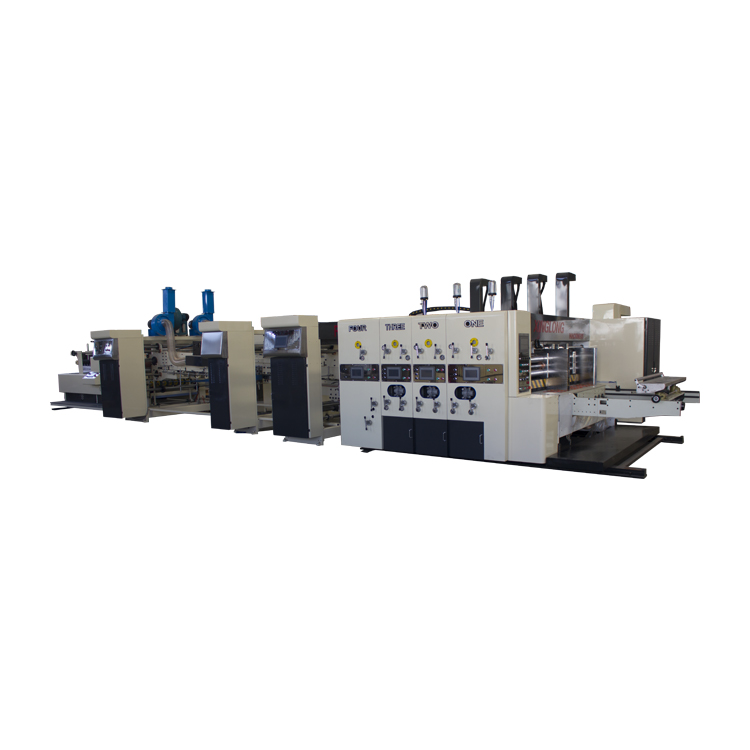

automtic carton printer slotter die - cuter folder gluer strapping linkage line box machine
Performance and Characteristics
The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, gluing and so on.
Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .
All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.
Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.

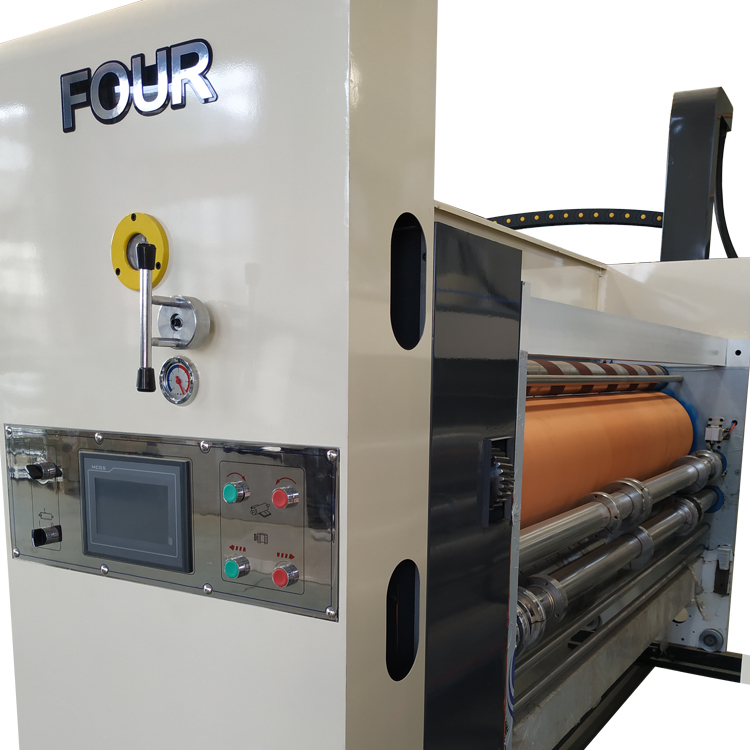

Motorized digital phase adjustment with "automatic zero return" and "memories" function ( options: PLC control with touch screen)

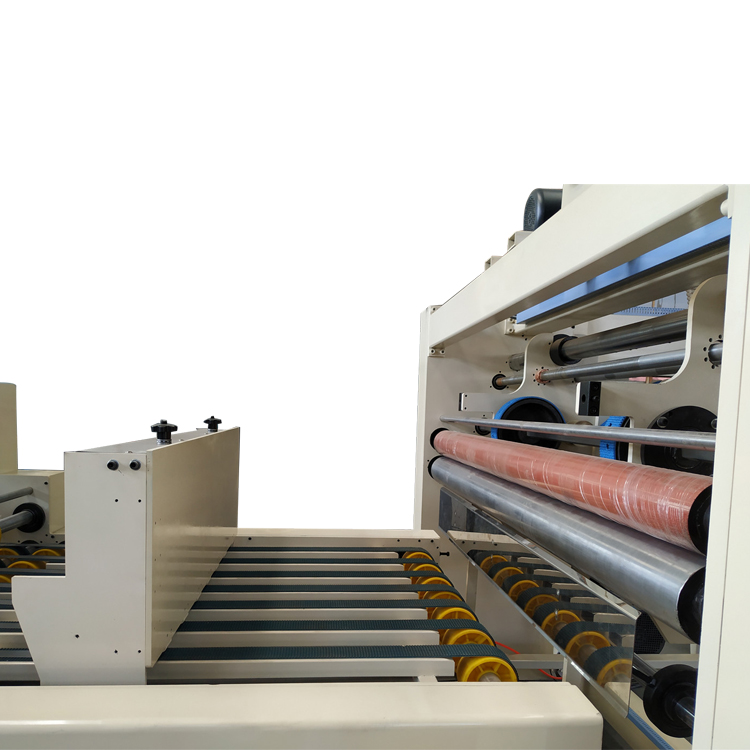

The machine adopts lead edge (or kick feeding), low demand for the cardboard, fast.
Main motor is VFD, working stability, low power consumption.
Main specification:
Model | 1450X2400 |
Machine inside width(mm) | 2600 |
Max sheet size(mm) | 1400*2400 |
Max effective printing size(mm) | 1400*2200 |
Min. sheet size(mm) | 400*500mm |
Design Speed(pcs/min) | 200pcs/min |
Color No. | 4 color |
Standard Thickness of printing plate | 7mm |
Printing precision | ±0.5mm |
Thickness of cardboard | 1.2-11mm |
Total power | About 55kw |
