automatic carton box maker 4color flexo printing slotting machine

Share to:

automatic carton box maker 4color flexo printing slotting machine

Availability:

Quantity:


Inquire Add to Basket

Condition: New
Warranty: 1.5 years, One Year
Applicable Industries: Manufacturing Plant
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: None
Showroom Location: None
Type: carton machine
After-sales Service Provided: Free spare parts, Video technical support, Online support, Engineers available to service machinery overseas
Key Selling Points: Automatic
Name: automatic carton box maker 4color flexo printing slotting machine
Model: YJ-120-1226
Design speed: 120 pcs/min
Working speed: 100pcs/min
Standard Thickness of printing plate: 6mm
Printing precision: ±0.75mm
Thickness of cardboard: 1.2-9mm

Product Description

Product Description

Performance

1. YJ-130 type automatic carton flexo printer slotting die cutting machine is ecnomic type machine for medium-sized factories.

2. The machine adopts lead edge feeder with suction, feed board smooth and no damage , low demand for the cardboard, save workers.

3. control syste: PLC with touch screen set cylinder vertical adjusting automaticallly, memory order and change automatically, igreatly improve production effciency

4. this printing machine can combind with slotting unit or rotary die cutter, vibrator and stacker. make carton box one time.

5. Frequency drive motor, working stability, low power consumption.

6. The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal ineach unit.

7. Grinded 45# steel gear, low nosie and long use life.

Description of application effect

Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

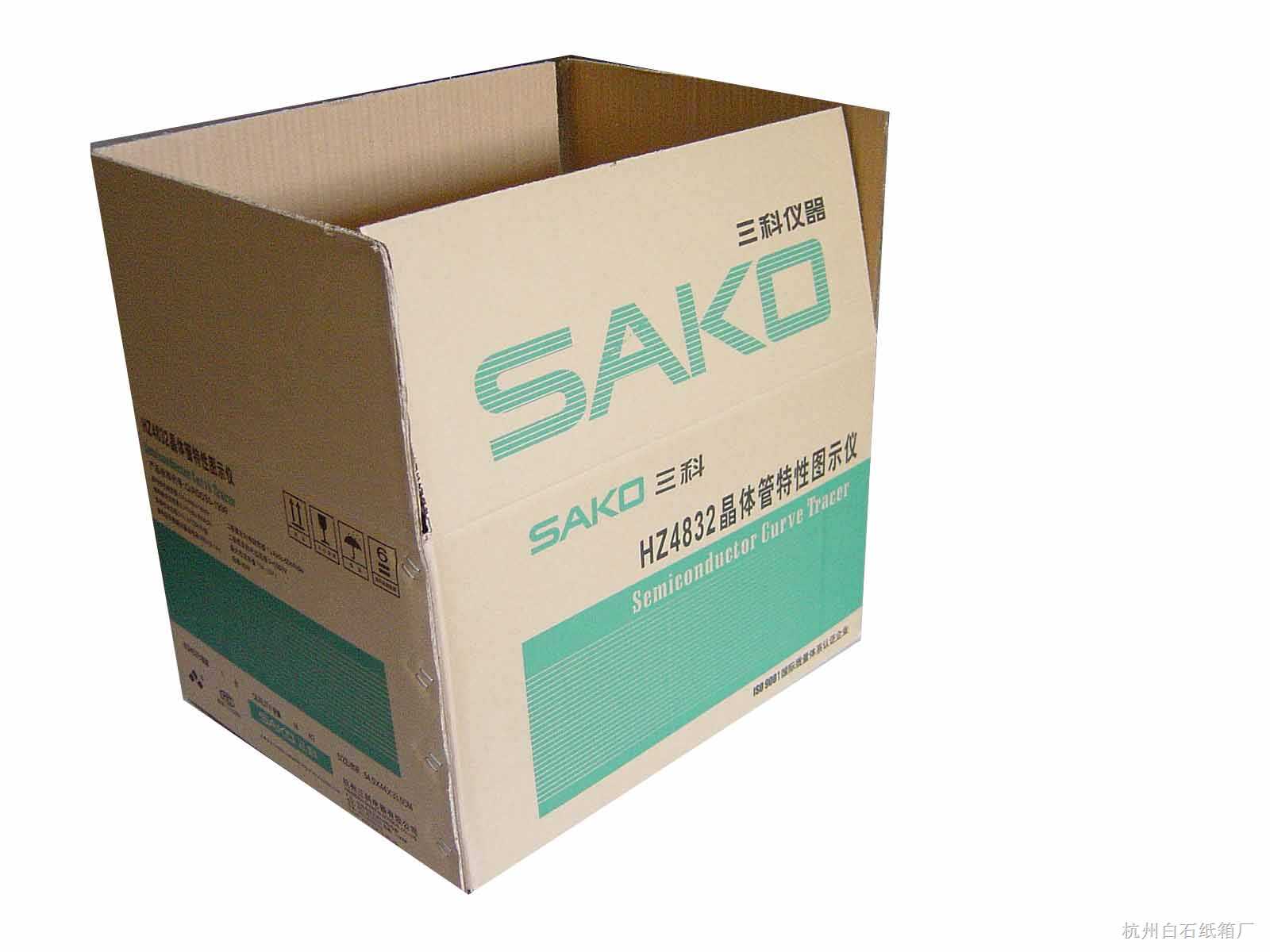

Automatic carton flexo printing slotting die cutting machine is suit for producing 3, 5, 7 layer corrugated carton box in various size. it can produce RSC cartons, pizza box, rigid box etc.

Feed unit

1. Adopts lead edge feeder with wind volume system, it can adjust wind volume according on cardboard bending status to ensure feeding board smoothly.

2. The left and right baffles adopt electric digital control, the front bafflesspace adopts manual synchronous adjustment, the back
baffle box be adjusted by manual.

3. Cleaning brush sweep board surface, improve the effect of printing

4. Zero position device, after finishing work, back to zero potion.

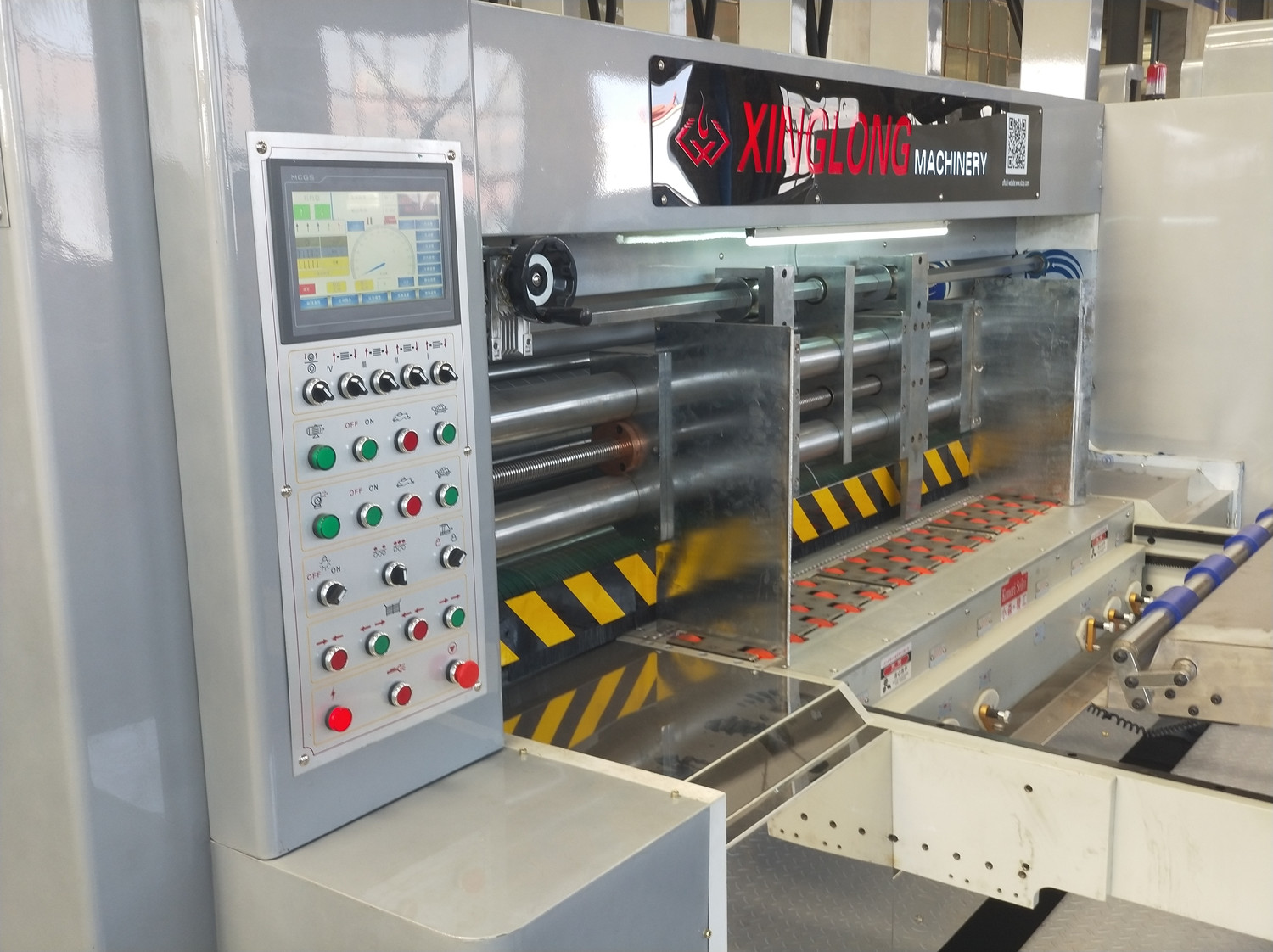

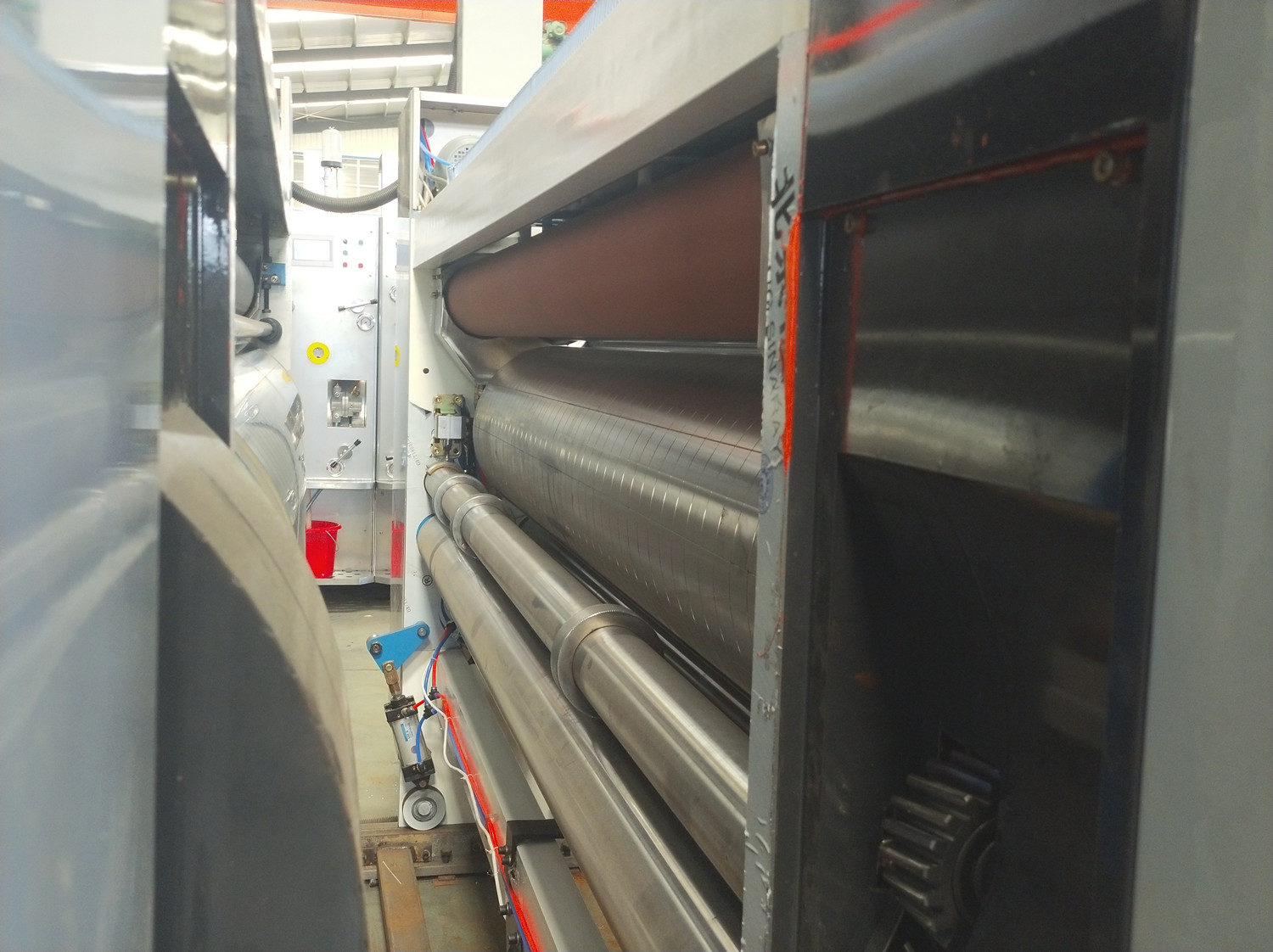

Print unit

1. Adopt good quality steel tube, the surface be grinded, hard chrome plated, balance correction, running smoothly

2. Hang plate device, cooperate with the ratchet shaft fixed volume board fix printing plate fast.

3. Foot switch electric control roller run clockwise or anticlockwise, convenient hanging version、unloading version.

4. With pneumatic diaphragm pump to supply ink, automatically circulation, work stable and it is easy to operate and maintain.

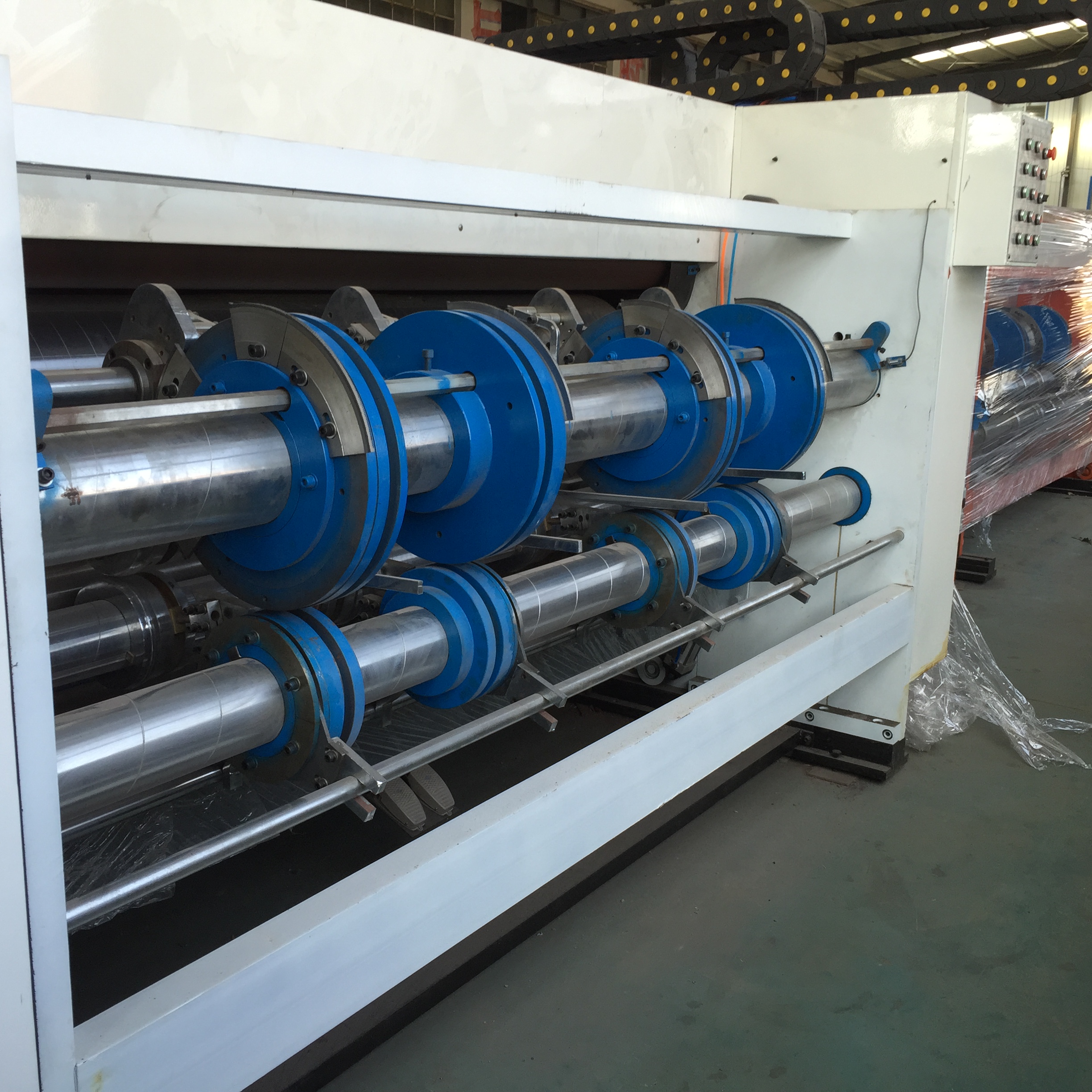

slotting unit

1.this unit can do slot, crease, corner cut one time

2. slotting crease joint movement

3. phase adjust by digital electric in 360 degree and

4. 7mm width knife made of 9Crsi alloy steel, wearable.

5. Gap adjusting by wormbox with spanner.

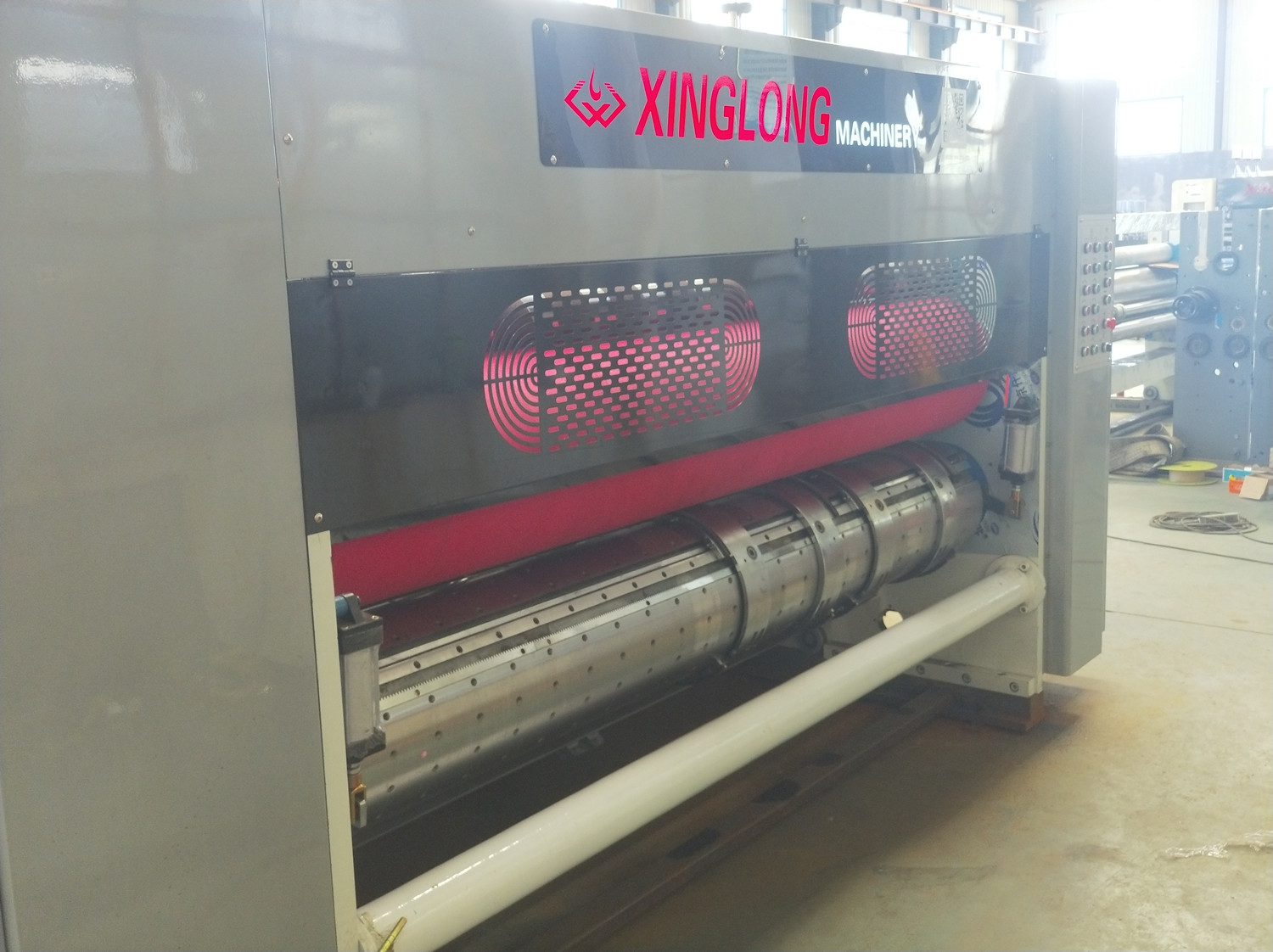

die cutting unit

1. Upper and lower cylinder made of high quality steel be finished process, the surface chrome plated, do balance correction, running stable.

2. Avnil blankt from famous brand " Maxdura" or " Depair"

3. Equipped with rubber repair device, the rubber can be repeat use after be repaired. save cost to change

4. Option:attached slotting ring instead wooden box

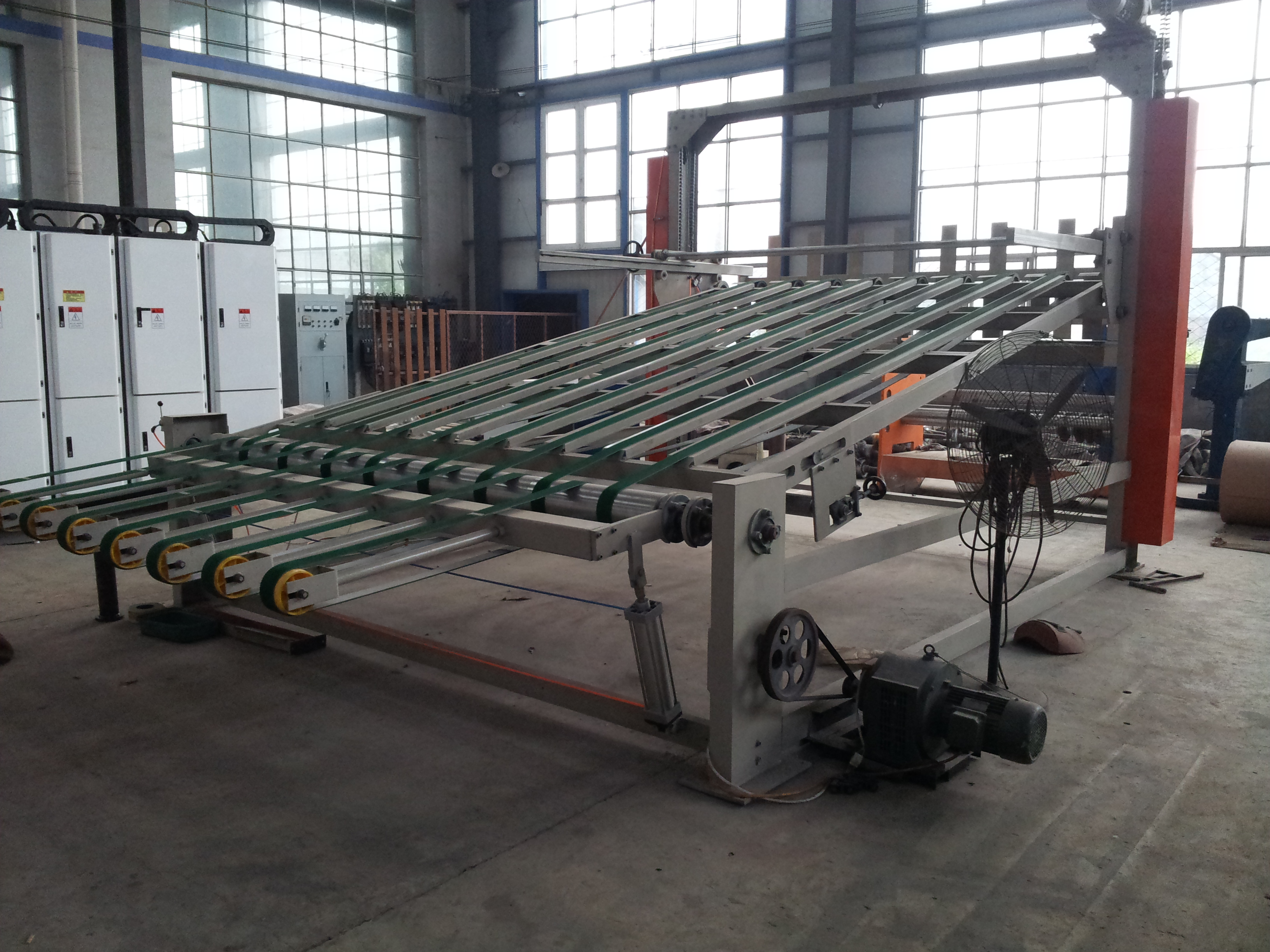

Stacker unit

1. Used strong chain drive table lift-down ,move smoothly

2. The lift-down motor is equipped with the braking facility to keep the fix position, don’t slide

3. Max stacking height 1300mm

4. Pneumatic control baffle, used sensor control stacking height

Detailed Images

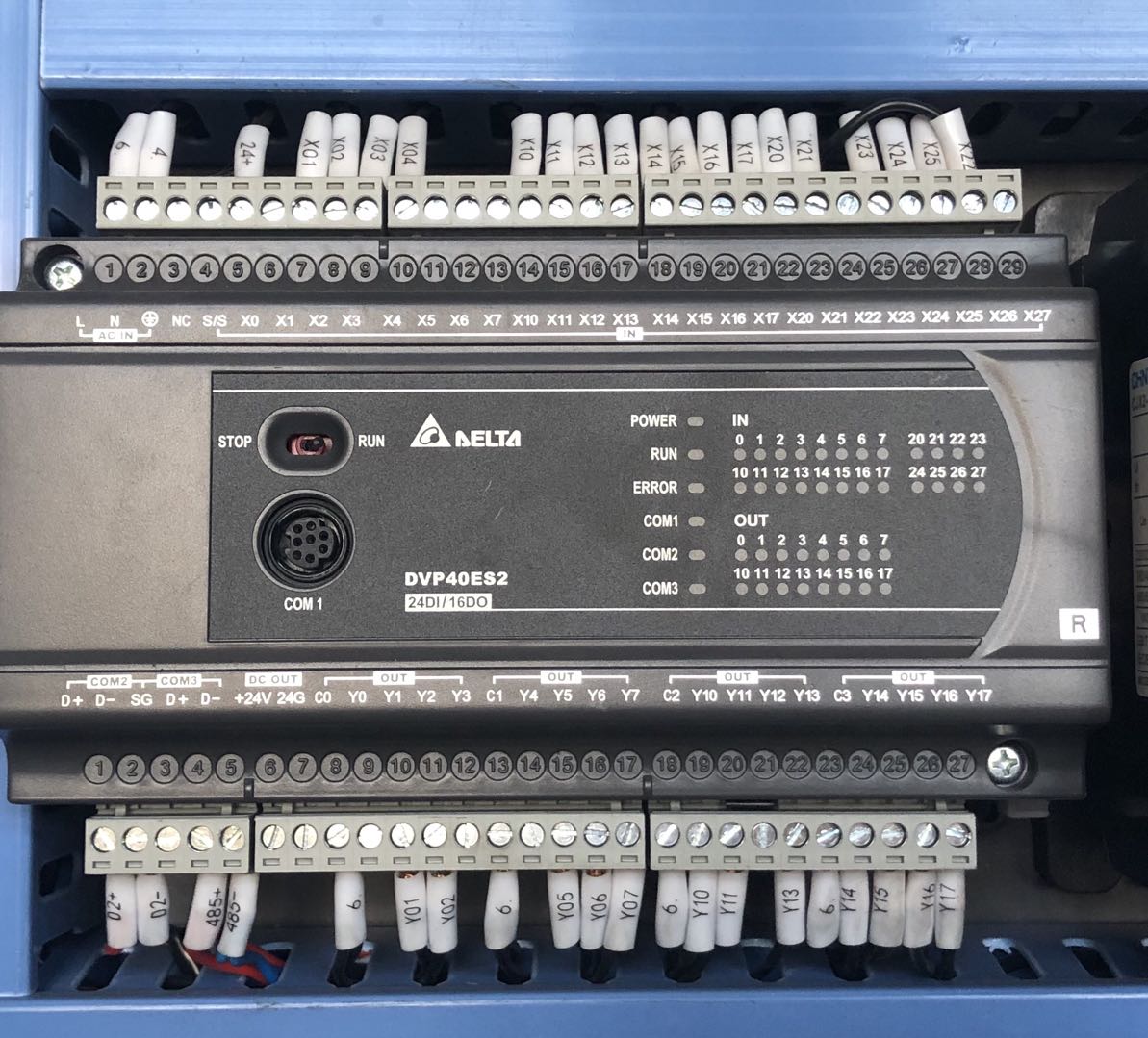

Control system

Delta brand PLC, memory and change order automatically, phase adjust ment

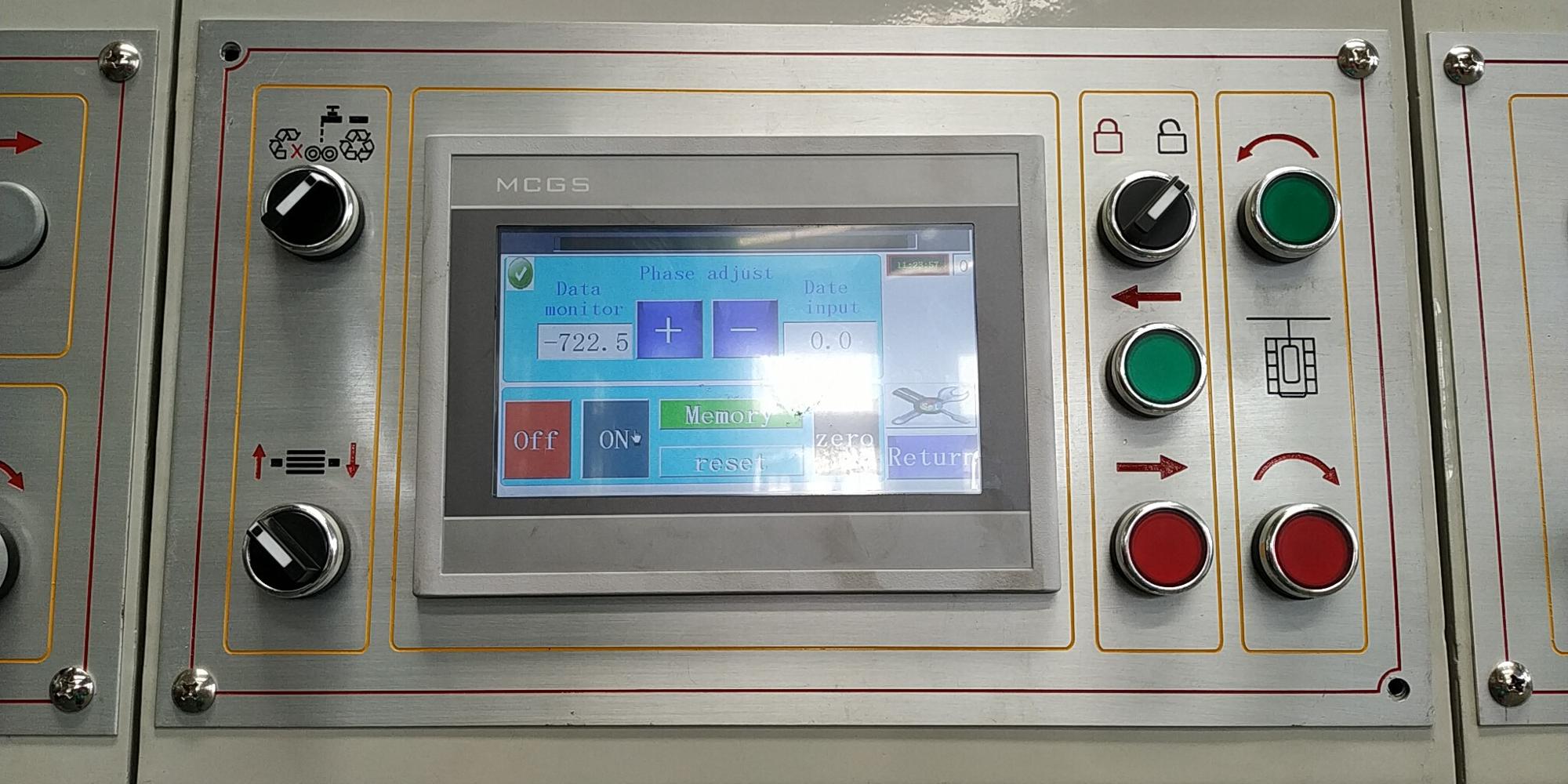

control panel

MCGS touch screen, change order, phase adjustment

Product Paramenters

Model	YJ-130-1224
Machine inside width	2400mm
Max feed size	1200*2200mm
Max printing size	1200*2000mm
Min feed size	350*500mm(only for full plate print)
Min slotting space	22050220*50 mm
Design speed	100pcs/min
Working speed	60-80pcs/min
Standard Thickness of printing plate	6mm
Printing precision	±0.75mm
Thickness of cardboard	1.2-9mm
Wall thickness	40mm
total power (kw)	approx 40kw

loading &delivery

Why Choose Us

1. Our factory set up since 2002, have experienced engineer and skilled wokers. Produced machine with proper structure, easy to operate and maintaince

2. Full range of equipments, we produce 3,5,7 layer corrugated cardboard line, carton flexo printer slotting die cutting machine, rotary slotting and rotary die-cutter, folder gluer, box stitching machine, partition slotter etc

3. Choose heavy material, cylinder, shaftes more thicker shell than other competitiors

4. Warranty: 1 year (gear, wall body, cylinder, rollers change free)

5. Wechat, whatsapp, QQ online answer questions

Customer Photos

FAQ

1. Q: Are you a manufacturer, trading company or third party?

A: We are a manufacturer, located in Dongguang county, Hebei province, China.
Warmly welcome to visit our company

2. Q: What is your minimum order quantity, can you send me samples?

A: Our minimum quantity is 1 set, as our product is machinery equipment, it is difficult to send you samples, if you have any
questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as
specifications, video, etc.

3. Q: How does your factory do regarding quality controlling?

A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are
also widely exported to many different countries including Russia, the middle east, Africa, Southeast Asia, EU, etc. Which earned
us a high reputation among the customers.

4. Q: How about the after-sale service?

A: 1) TM online 24 hours, also contact by email, skype, wechat, whatsapp, etc.
2) To solve the problems with videos/pictures
3) One year warranty for spare parts change.
