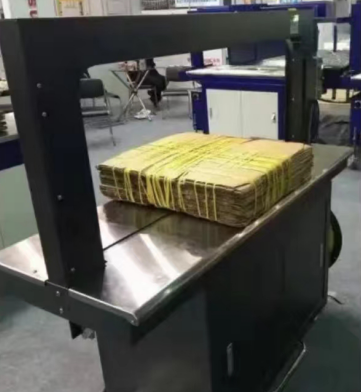

YS-305 Automatic PP bindling machine (custom widening)

YS-305 Automatic PP bundling Machine

1. Power supply:AC220V, 50/60hz, 0.6kw

2. Over all dimensions: L1600mm*W585mm*H1450mm

3. Frame size: Width1250mm*High500mm

4. Worktop height: 800mm

5. Weight-bearing capacity:40kg

6. Backing speed: ≤40lanes/min

7. Tapping force:0-45kg

8. Specification of binding band: polypropylene, width 5mm-6mm, thick 0.5mm~0.8mm

   Roll width:170mm-190mm

Inner diameter of belt coil: 200mm~210mm, outer diameter: 400mm~450mm

9. Adhesion method: hot melting method, bottom bonding, bonding surface of 90%, bonding position deviation of 2mm.

10. Machine weight:240kg

11. Electrical configuration:

                                                        > Button switch: Siemens APT

                                                        >PC controller:YOUNGSUN

                                                        > Relay: Schneider

                                                        > Motor: MEIWA

                                                        > Induction switch and proximity switch: YOUNGSUN





12. Noise: 75dB (A) in working environment

13. Ambient conditions: humidity: 90%, temperature: 0-40℃
