YJA Series Printing slotting die cutting machine

Availability:
Quantity:
  • YJA922

  • xinglong

  • Manufacturing Plant

  • New

  • Ordinary Product

  • Corrugated carton Printing Machine

  • 1-6colors

  • Video technical support

  • Carton Box Making Machine

  • Easy to Operation

  • Hebei,China

微信图片_20230214092856

YJA Series Printing slotting die cutting machine

Performance and Characteristics

●The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, stacking and so on.

●Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .

●All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.

●Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.

●The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.

●The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.

●Phase adjustment adopt PLC control with touch screen

●The machine adopts lead edge (or kick feeding), low demand for the cardboard, fast.

●Main motor is VFD, working stability, low power consumption.

●Adopt double shell, beautiful and generous, reduce noise

Main Technology parameters


Model

YJA922 YJA1224

YJA1426

Machine inside width (mm)

2400 2600 2800

Max feeding paper siz(mm)

900mm*2200mm 1200mm*2400mm

1400mm*2600mm

Max effective printing size(mm)

900mm*2000mm 1200mm*2200mm

1400mm*2400mm

Min coverage size(mm)

350mm*720mm 350mm*720mm 350mm*720mm

Max effective die cutting size(mm)

900*2150mm 1200*2350mm

1400*2550mm

Design speed (pcs/min)

150pcs/min 150pcs/min 150pcs/min

Working speed(pcs/min)

120-140 pcs/min 100-120 pcs/min

80-100 pcs/min

Standard Thickness of printing plate

4-6mm 4-6mm 4-6mm
Printing precision ±0.5mm ±0.5mm ±0.5mm

Thickness of cardboard

2-9mm 2-9mm 2-9mm
Wall thickness 40mm 40mm 40mm

Main motor power

15kw 15kw 15kw
Lpi of anilox roller 200/220/250 200/220/250 200/220/250

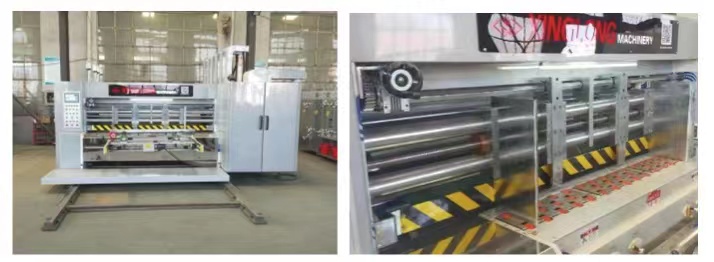

1.Feeding unit


送纸部1

No Item

Function and configuration

1 Machine unit move

   Motorized control machine units move, the warming belt is alarming when moving, make sure working safety.

   Drive shaft is equipped with friction clutch to avoid damage machine caused by incorrect operation.

   When machine units separate, each brake system work automatically, make sure gear positioning accurately, fix printing phase, ensure gear engaged correct when machine units lock.

   Machine unit adopts pneumatic locking system.

   Main motor frequency conversion control, energy saving. Main motor with start protecting device, machine can not run when machine units aren’t lock.

2 Roller type  lead edge feeder Adopt lead edge feeder with wind volume system, it can adjust wind volume according on cardboard bending status to ensure feeding board smoothly.
3 Feeding roller

   Top feed roller is made of high qualified steel, the outside be wrapped wear-resisting rubber, don’t destroy flute, guarantee feeding precision, improve the printing accuracy.

   Bottom roller used high-quality steel, precision grinding, knurling, hard chrome plated paper roll hand mode rapid clearance of fine-tuning self-locking device, equipped with a dial display to adjust direction and numerical.

4 Baffles

The left and right baffles adopt electric digital control, the front baffles space adopts manual adjustment, the back baffle box be adjusted by motorized.

5 Automatic zero device After finishing the work order ,back to zero position

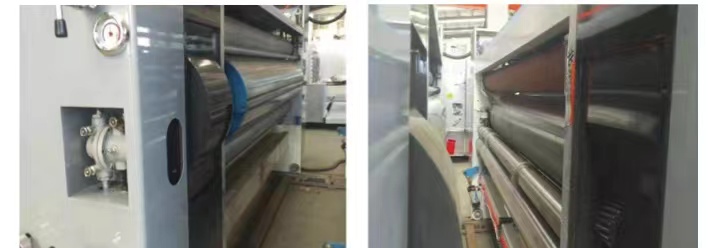

2.Printing unit

印刷部2

No Item

Function and configuration

1 The printing roller

   Adopt good quality steel tube, the surface be grinded, hard chrome plated, balance correction, running smoothly

   Hang plate device, cooperate with the ratchet shaft fixed volume board fix printing plate fast.

   Full hang-plate device, 10mm hang-plate strip is available.

   Foot switch electric control roller run clockwise or anticlockwise, convenient hanging version、unloading version.

2 Impression roller

   Seamless steel tube surface is grinded and plated hard chrome, do balance correction, running stable.                   Equipped manual gap adjustment device that fast and self-locking, dial indicates to show set direction and set amount.

3 Feeding roller

   Use thick good quality steel pipe, professional manufacturing, do balance processing, the feeding roller adopt fine grinding to be molding.

   Equipped manual gap adjustment device that fast and self-locking, dial indicates to show set direction and set amount.

4 Anilox roller

   Seamless steel tube surface being grinded and plated hard chrome, balance correction, smooth operation

   Mesh amount 200, 220,240,260 or according to customers' demand

   Pneumatic lift-down mechanism(while feeding, the anilox roll go down automatically; stop feeding, it go up automatically )

   Equipped manual gap adjustment device that fast and self-locking, dial indicates to show set direction and set amount.

5 Rubber roller

   Adopt high quality stemless steel pipe, the surface be grinded, hard chrome plated, balance correction, running smoothly

   Special grinded crowning, work well

6 Phase adjustment

   Planetary gear structure

   Printing phase adopts 360 degrees electric adjustment (either run or stops)

   Printing roller manual horizontal adjustment, adjustment range ±10mm

7 Ink supply system

   With pneumatic diaphragm pump to supply ink, automatically circulation, work stable and it is easy to operate and maintain.

   Ink filter, filter impurities, more better printing

8

Printing phase fixed device

   When units separating or cleaning, braking mechanism limit gear running, keep original gear’s position

9 Zero-return and memory    After washing the printing plate, press reset button the printing roller will back to the original printing position.

3.slotting machine

开槽

No Item  Function and configuration
1 Crease wheel

   Using high quality steel, with grinding process and plating hard chromium.

   Pressure roller surface be grinded and  hard chromium plating ,do balance processing

   Equipped special design wheel is keep from crack.

   Equipped manual gap adjustment device that fast and self-locking, dial indicates to show set direction and set amount.

2 Slot knife adjustment on axial direction

   Seamless steel pipe is selected and run smoothly after grinding and balancing.

   Slotted knife width 7mm, alloy material, after heat treatment grinding, tooth shape slotted knife, sharp edge, high precision.

   The slotting knife box height adjustment adopts four knife synchronous adjustment, and the slotting blade adopts four knife manual synchronous transverse movement.

   Hand-tuned fast clearance fine-tuning self-locking device with dial display adjustment direction and value

3 Slotting phase adjustment

   Structure of planetary gear type

   Slotting phase adopt 360 degree electric synchronous adjustment.


4

Manual sync

adjust

horizontal

movement

   Slotting knife and crease wheels move together by hand(electric sync adjustment option)

5 Punching device(option)    Option, clients are beard the cost

4.Die cutting unit

模切

No Item

Function and configuration

1

Die roller(bottom roller)

    High quality steel be finished process, the surface chrome plated, do balance correction, running stable.

    Pneumatic lift-down, it is easy to work, reduce cut times on anvil cover, prolong its use life.

2

Rubber roller(top roller)

    High quality steel be finished process, the surface chrome plated, do balance correction, running stable.

    The gap between top roller with bottom roller be adjusted by hand.

    Famous brand anvil cover, easy change, economy

    The gap between feed roller with rubber roller is self-locked.

    Speed compensation device can make the rubber roller slipping follow die roller, thereby, the rubber surface speed controlled by knife die. So that the carton shape is same as knife die.

    Equipped with rubber repair device, the rubber can be used after be repaired.

    Mechanical helix fluted-roll type, transverse movement ±20mm

3 Phase adjustment

    Planetary gear structure

    Phase adjustment by motorized control in 360degree( both running and stop)

4

Automatic repair rubber device

    Machine have repair roller to grind blanket, so it can use many times.

5 Automatic waste clean device

   automatic discharge of waste paper

6
Optional:slotting knife attached    With slotting knife sync adjustment,no need to make wooden die when make normal cartons.easy to operate
