YJA922
xinglong
Automatic printing slotting die cutting machine
Electric
New
Ordinary Product
Provided
Automatic
1 Year
Provided
Optional
Video Technical Support

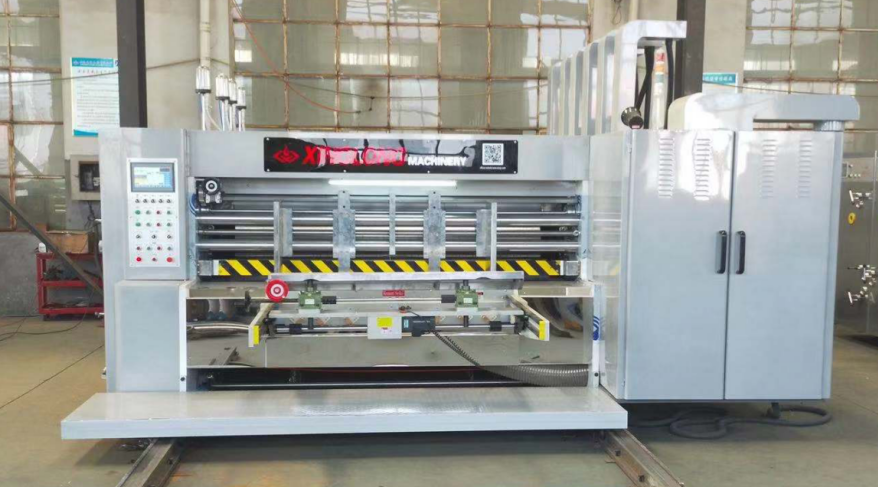

YJA Series Printing slotting die cutting Machine
Main Technology Parameters
Model | YJA922 | YJA1224 | YJA1426 |
Machine inside width (mm) | 2400 | 2600 | 2800 |
Max feeding paper size (mm) | 900mm*2200mm | 1200mm*2400mm | 1400mm*2600mm |
Max effective printing size (mm) | 900mm*2000mm | 1200mm*2200mm | 1400mm*2400mm |
Min coverage size(mm) | 350mm*720mm | 350mm*720mm | 350mm*720mm |
Max effective die cutting size(mm) | 900*2150mm | 1200*2350mm | 1400*2550mm |
Design speed (pcs/min) | 150pcs/min | 150pcs/min | 150pcs/min |
Working speed (pcs/min) | 120-140 pcs/min | 100-120 pcs/min | 80-100 pcs/min |
Standard Thickness of printing plate | 4-6mm | 4-6mm | 4-6mm |
Printing precision | ±0.5mm | ±0.5mm | ±0.5mm |
Thickness of cardboard | 2-9mm | 2-9mm | 2-9mm |
Wall thickness | 40mm | 40mm | 40mm |
Main motor power | 15kw | 15kw | 15kw |
Lpi of anilox roller | 200/220/250 | 200/220/250 | 200/220/250 |
Performance and Characteristics:
The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, stacking and so on.
Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .
All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.
Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
Phase adjustment adopt PLC control with touch screen.
The machine adopts lead edge (or kick feeding), low demand for the cardboard, fast.
Main motor is VFD, working stability, low power consumption.
Adopt double shell, beautiful and generous, reduce noise.
