GYKM2400
xinglong
YJ2400
New
Hebei,China
xinglong
Easy to operate
250pcs/min
50mm
Ordinary Product
Provided
1 Year
YJ series full auto high speed Printing slotting die-cutting Machine

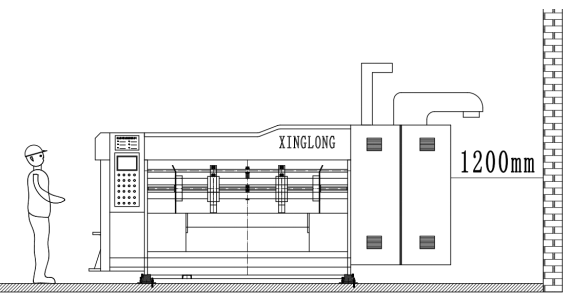

MACHINE GROUND DRAWWINGS
MAIN TECHNOLOGY PARAMETERS
| Model | YJ2400 |
| Machine inside width (mm) | 2400 |
| Max feeding paper size (mm) | 1200*2200 |
| Max effective printing size (mm) | 1200*2000 |
| Max die cutting size (mm) | 1200*2100 |
| Min coverage size (mm) | 350*720mm |
| Design speed (pcs/min) | 250 pcs/min |
| Max Working speed (pcs/min) | 200-220 pcs/min |
| Standard Thickness of printing plate | 4-6 mm |
| Printing precision | ±0.5mm |
| Thickness of cardboard | 1.0-10mm |
| Wall thickness | 50mm |
| Main motor power | About 18kw |
IMPORTANT FEATURES
The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, stacking and so on.
Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .
Control system: Using industrial man-machine interface and inverter as the core of the electrical control system;Realize the rapid change of production orders, intelligent and comprehensive program control function, make the machine production and adjustment more humane, higher safety, product yield greatly improved.
The main machine wall panel material is HT250, artificial aging treatment, large processing center processing, to ensure high strength and high precision.
All of drive rollers are made of high quality steel with temper and quenching treatment, not change shape when high speed running, hard chrome plated the surface with grinded.
Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
Lead edge feeder with vacuum sucntion, easy operate, high precision.
All units move automatic orderly, locked by pneumatic, alarm continually
Main motor is VFD, working stability, low power consumption.
After the paper feeding part, printing part and slotting part are combined with the machine, the electric type returns to the zero position.

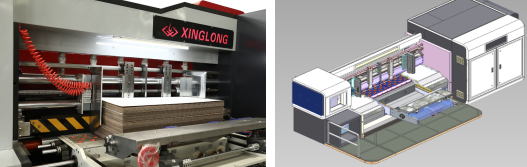

1.Feeding unit

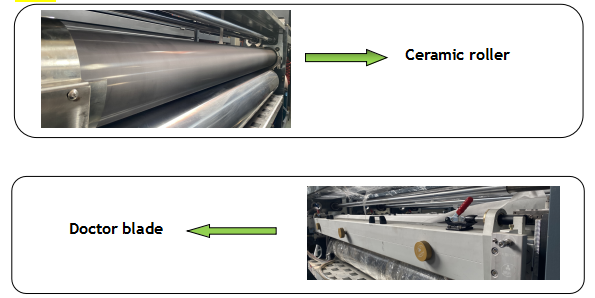

2.Printing unit （roll transfer）
Option
3.Slotting unit
4.Die-cutting unit
Option

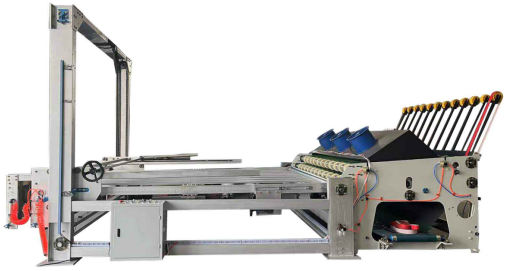

5.vibrator and stacker unit
PRINTING QUALITY-----XINGLONG MACHINERY
