YJ2800
xinglong
New
Manufacturing Plant
Provided
Carton making machine
1-6 colors
Easy to operate
Automatic
Corrugated carton
1 Year
Ordinary Product
YJ Series Printing slotting die cutting machine
Main Technology Parameters
Model | YJ2800 |
Machine inside width (mm) | 2800 |
Max feeding paper siz(mm) | 1400mm*2600mm |
Max effective printing size(mm) | 1400mm*2400mm |
Min coverage size(mm) | 350mm*750mm |
Max effective die cutting size(mm) | 1400*2500mm |
Design speed (pcs/min) | 120pcs/min |
Working speed (pcs/min) | 0-100 pcs/min |
Standard Thickness of printing plate | 4-6mm |
Printing precision | ±0.5mm |
Thickness of cardboard | 2-9mm |
Wall thickness | 40mm |
Main motor power | 15kw |
Standard Lpi of anilox roller | 250 |
Performance and Characteristics
The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, stacking and so on.
Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .
All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.
The main drive gear is adopted 40Cr alloy steel, carburizing quenching treatment, hardness HRC58-62 ,And gear grinding processing precision level 5-7. adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
Phase adjustment adopt PLC control with touch screen
The machine adopts lead edge (or kick feeding), low demand for the cardboard, fast.
Main motor is VFD, working stability, low power consumption.
Adopt double shell, beautiful and generous, reduce noise

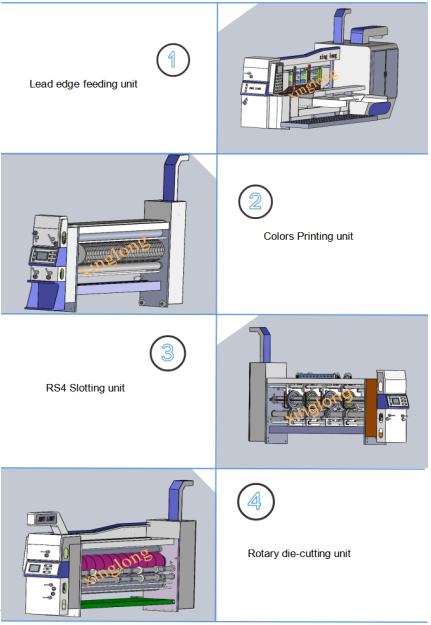

1.Feeding unit
2.Printing unit
3.Slotting unit
4.Die-cutting unit

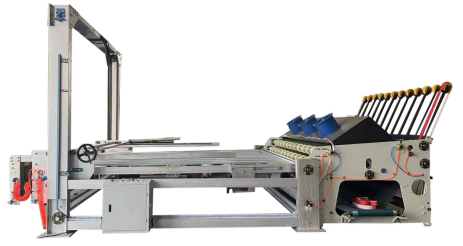

Vibrator and stacker unit
Vibrator unit
Frequency conversion speed regulation, can control the main engine speed, safe and reliable operation
Equipped with waste removal force fan and waste discharge brush ，Waste paper discharge device.Seismic waste strength adjustable
High elastic round belt has long service life and cannot damage cardboard.
Introduced foreign advanced experience, better separation of waste from the finished product after die cutting, beat to remove waste, improve working conditions and efficiency.
Stacker unit
Design speed: 150m/min
Maximum stacking length of gantry: 2800mm
Upper gantry stacking, electric or hydraulic lift.
The whole wide belt conveys the paper neatly and smoothly;
Electric stacking, and collection of cardboard, can make the cardboard storage height;Photoelectric measurement of stack height
