YJ2400
xinglong
Full Automatic
Customized
Ordinary Product
China,Hebei
Provided
New
Provided
Electric
Full automatic
250pcs/min
YJ series full auto high speed Printing slotting die-cutting Machine

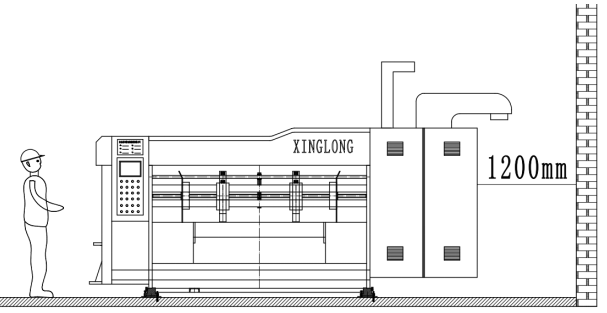

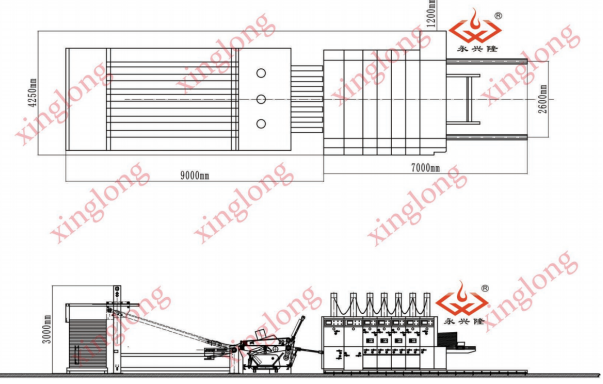

MACHINE GROUND DRAWINGS
MAIN TECHNOLOGY PARAMETERS
Model | YJ2400 |
Machine inside width (mm) | 2400 |
Max feeding paper size(mm) | 1200*2200 |
Max effective printing size(mm) | 1200*2000 |
Max die cutting size(mm) | 1200*2100 |
Min coverage size(mm) | 350*720mm |
Design speed(pcs/min) | 250pcs/min |
Max Working speed(pcs/min) | 200-220 pcs/min |
Standard Thickness of printing plate | 4-6mm |
Printing precision | ±0.5mm |
Thickness of cardboard | 1.0-10mm |
Wall thickness | 50mm |
Main motor power | About 18kw |
IMPORTANT FEATURES
The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, stacking and so on.
Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .
Control system: Using industrial man-machine interface and inverter as the core of the electrical control system;Realize the rapid change of production orders, intelligent and comprehensive program control function, make the machine production and adjustment more humane, higher safety, product yield greatly improved.
The main machine wall panel material is HT250, artificial aging treatment, large processing center processing, to ensure high strength and high precision.
All of drive rollers are made of high quality steel with temper and quenching treatment, not change shape when high speed running, hard chrome plated the surface with grinded.
Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
Lead edge feeder with vacuum sucntion, easy operate, high precision.
All units move automatic orderly, locked by pneumatic, alarm continually
Main motor is VFD, working stability, low power consumption.
After the paper feeding part, printing part and slotting part are combined with the machine, the electric type returns to the zero position.
With surveillance camera, It is convenient for the operator to monitor the rear operation of the machine at any time | |
With LED display screen, can show the real prodcution speed of the machine and procude Quantity |

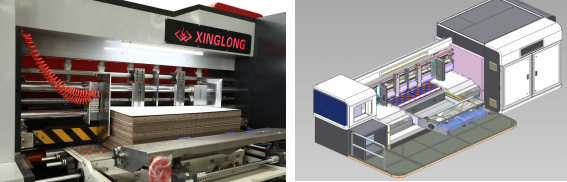

1.Feeding unit
Light- pressure Lead edge feeder with vacuum suction, feeding more stable and accurate,wind is adjustable depend on sheet, make sure feed sheet smoothly. Suitable for all kinds of corrugated cardboard,feeding wheels is from Taiwan Maxdura brand, wear resistant, cardboard directly through the lead edge vacuum transfer to the printing roller , keep the cardboard original strength, avoid the corrugation collapse and thin cardboard that in favor of cardboard smooth transfer after creasing.
Main motor with start protecting device, machine cannot run when machine units aren’t lock.
Continuous or skip feeding available
Double feed rollers wrapped with rubber, with groove prevent overpressure, reduce pressed sheet
Left-right baffle adjusted by computer with automatic flap, back baffle adjusted by motorized, front baffle manual synchronous adjust.
Dust clearance bush and fan to clean dust on board. Air outlet can be adjusted as per sheet size
Machine units move by motorized and move with alarm belling to make sure safety.
Electronic count can set the production volume, reach the quantitative automatic alarm.
Computer or button automatically adjust the left and right baffle, front and rear baffle.
2.Printing unit (roll transfer)
Fast change printing plate, with footstep to control cylinder rotate clockwise or anticlockwise
Feed roller, press roller, rubber roller, anilox roller gap adjust with self-lock part
Printing phase adjusted by PLC in 360degree with digital input, do when machine running or stop
Pneumatic brake device to keep printing register fixed, when units separate or clean, brake limit gear rotate, keep original gear position.
Pneumatic lift anilox roller for ink, motorized ink will no dry.
Printing cylinder made of seamless steel pipe, be grinded with chrome plated, do balance treatment, running smooth and steady.
Lift-down design( when feed sheets anilox roller down in order, stop sheet lift rollers in order)
Double diagram pump ink, recycle automatically, clean with water
Memory function, after clean plate it back to original position
Printing precision: +-0.5mm
Printing cylinder horizontal move by button or touch screen
Optopn :Adopt Ceramic roller+doctor blade system ,high quality printing .
The scraper system adopts American technology, exquisite printing, ultra-low loss.
Option:
3.Slotting unit
Box height adjusted by motorized or touch screen.
Slotting phase adjusted by PLC in 360 degree with digital input, do when machine running or stop.
Slotting die and crease die move together by motorized or computer
Crease gap and knife gap adjusted by self-lock mechanism
Collison protection on slotting knife for height adjust and move, don’t damage machine
Collison protection for slotting die horizontal move (electronical)
Adopt 5 slotting knife ,it can Achieve trimming while slotting,Slotting knife width 7mm, good quality material, with hot-treatment and grinded, teeth knife, double-piece trim knife, sharpen and precision.
4.Die cutting unit
Rubber roller: made of good quality steel, be grinded with chrome plated.
Do balance treatment, improve machine running steady
Rubber cylinder is separate with die cylinder by air cylinder when no cutting, reduce no-load and prolong blanket use-life.
Die roller lift-down automatic by pneumatic control( feed sheets roller go up, stop feeding roller down, make sure correct cutting for every sheets)
Rubber roller move 40mm in left and right, wearable average prolong use-life
Rubber roller rotates follow die roller by speed compensation device whatever how rubber diameter change, make sure rubber speed same as wooden die, keep cut box is consist with wooden die.
Planetary gear structure used for phase adjustment.
Phase adjustment by PLC in 360degree with digital input( can be done when run, stop or clockwise or anticlockwise)
Machine have repair roller to grind blanket, so it can use many times.
Option:Equipped with automatic waste cleaning device, waste paper can be discharged automatically
Optional: equipped with slotted free mold cut steel mold, when there is a conventional carton, do not need to do a template, one key switch the size of slotted carton, electric or touch screen adjustment.
Vibrator and stacker unit
Vibrator unit
◆Frequency conversion speed regulation, can control the main engine speed, safe and reliable operation
◆Equipped with waste removal force fan and waste discharge brush
◆Waste paper discharge device
◆Seismic waste strength adjustable
◆High elastic round belt has long service life and cannot damage cardboard.
◆Introduced foreign advanced experience, better separation of waste from the finished product after die cutting, beat to remove waste, improve working conditions and efficiency.

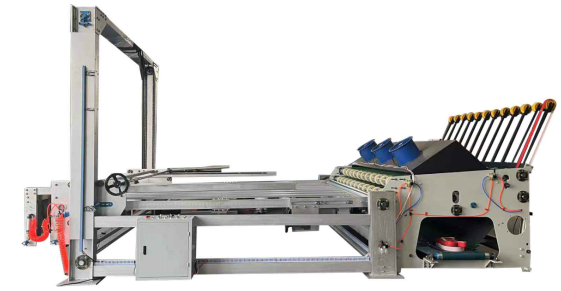

Stacker unit
◆Design speed:150m/min
◆Maximum stacking length of gantry:2800mm
◆Upper gantry stacking,electric or hydraulic lift.
◆The whole wide belt conveys the paper neatly and smoothly;
◆Electric stacking,and collection of cardboard,can make the cardboard storage height;
◆Photoelectric measurement of stack height.
PRINTING QUALITY -- XINGLONG MACHINERY
