YJ2800
xinglong
New
customize
1 Year
Machinery Test Report

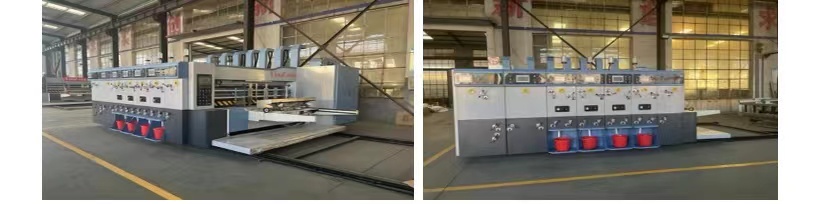

Printing slotting die cutting machine
YJ2800
XINGLONG
Multicolor
Carton Box Making
1-6 Color Optional
Main Technology parameters
| Model | YJ2800 |
| Machine inside width (mm) | 2800 |
| Max feeding paper size(mm) | 1400mm*2600mm |
| Max effective printing size(mm) | 1400mm*2400mm |
| Min coverage size(mm) | 350mm*750mm |
| Max effective die cutting size(mm) | 1400*2500mm |
Design speed (pcs/min) | 120pcs/min |
Working speed (pcs/min) | 0-100 pcs/min |
| Standard Thickness of printing plate | 4-6mm |
| Printing precision | ±0.5mm |
| Thickness of cardboard | 2-9mm |
| Wall thickness | 40mm |
| Main motor power | 15kw |
| Standard Lpi of anilox roller | 250 |
Performance and Characteristics
●The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, stacking and so on.
● Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .
● All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.
● The main drive gear is adopted 40Cr alloy steel, carburizing quenching treatment, hardness HRC58-62 ,And gear grinding processing precision level 5-7. adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
●The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
● The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
●Phase adjustment adopt PLC control with touch screen

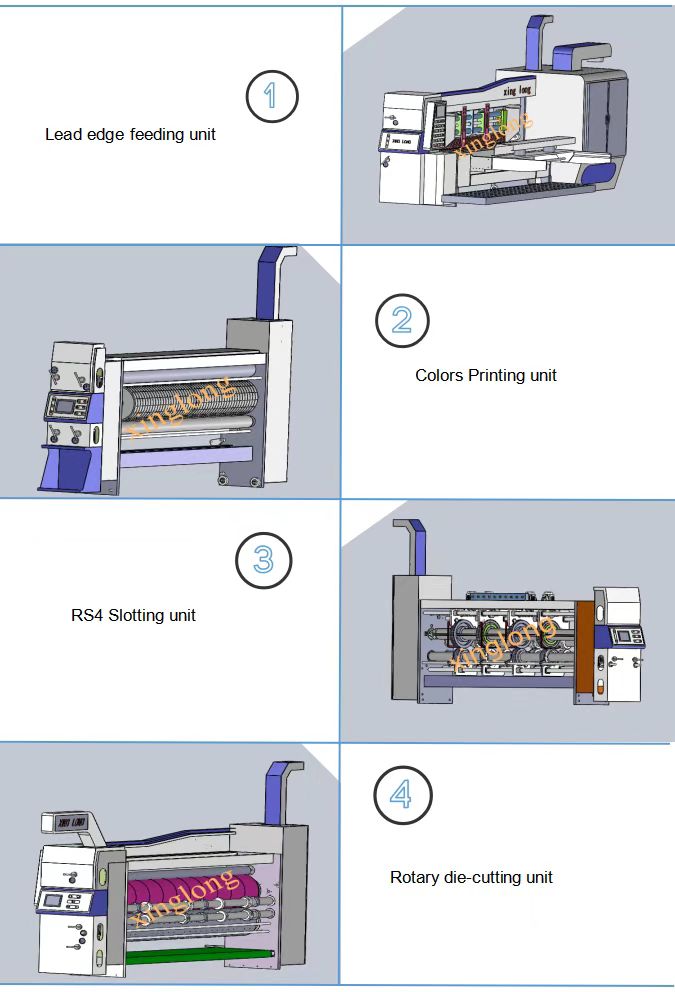

● The machine adopts lead edge (or kick feeding), low demand for the cardboard, fast.
● Main motor is VFD, working stability, low power consumption.
● Adopt double shell, beautiful and generous, reduce noise
