YJ1224（EA）
xinglong
Automatic
Electric
Ordinary Product
China,Hebei
Optional
1 Year
Provided
Lead edge feeding
Easy to Operate
Provided

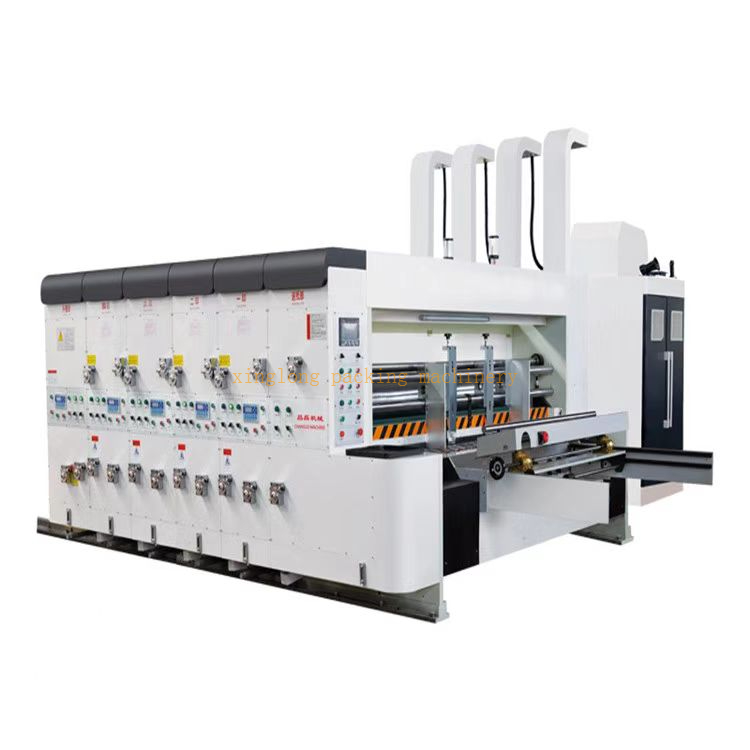

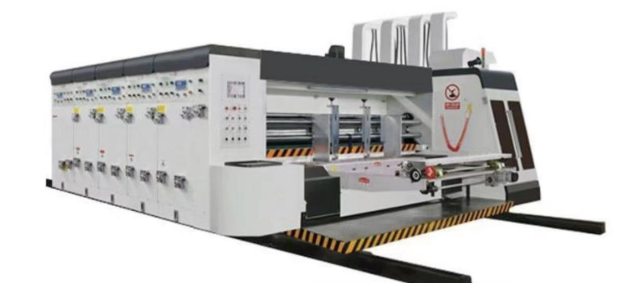

YJ Series Economic Automatic printing slotting die cutting machine
Performance and Characteristics:
The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, stacking and so on.
All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.
Main drive gears adopt high quality steel with heat treatment with clean teeth treatment, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
The machine adopts lead edge (or kick feeding), low demand for the cardboard, fast.
Main motor is VFD, working stability, low power consumption.
Main technology parameters
Model | YJ 1224(EA) |
Machine inside width (mm) | 2600 |
Max feeding paper size(mm) | 1200mm*2400mm |
Max effective printing size(mm) | 1200mm*2200mm |
Min feeding size(mm) | 350mm*720mm |
Max effective die cutting size(mm) | 1200*2300mm |
Design speed (pcs/min) | 130pcs/min |
Working speed (pcs/min) | 100-120 pcs/min |
Standard Thickness of printing plate | 4-6mm |
Printing precision | ±0.5mm |
Thickness of cardboard | 2-9mm |
Wall thickness | 40mm |
Main motor power | 15kw |
Lpi of anilox roller | 200/220/250 |
Machine details

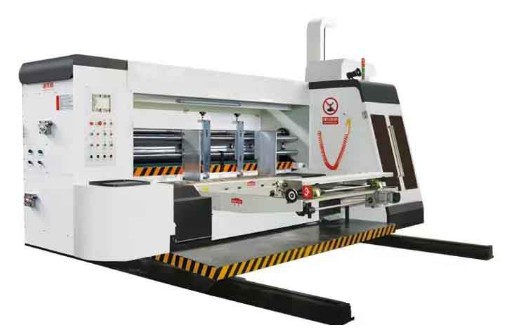

1.Feeding unit
2.Printing unit

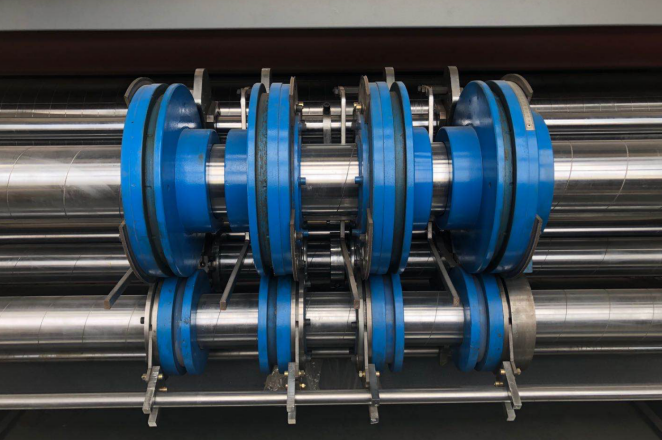

3.Slotting unit

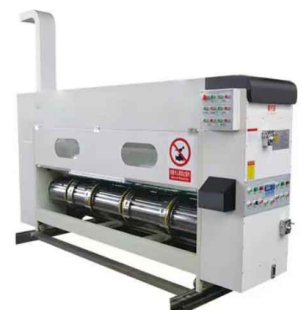

4.Die cutting unit

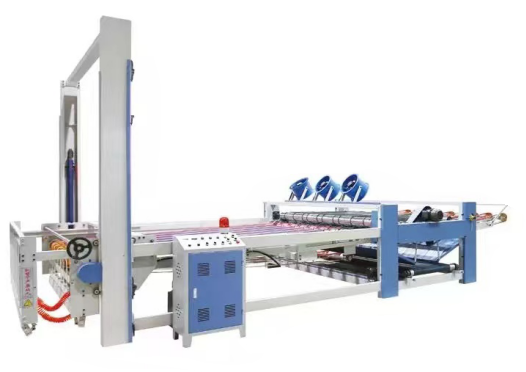

5.Vibrator and stacker unit
