Xinglong brand high speed 3 ply 5 ply Corrugated cardboard production line/corrugator machine

Quantity:
  • Packaging Line
  • Manufacturing Plant, Food & Beverage Factory, Farms, Construction works , Advertising Company
  • Video technical support, Online support, Spare parts, Field maintenance and repair service
  • None
  • None
  • New
  • Apparel, Beverage, Commodity, Food, Machinery & Hardware, Medical, Textiles, Chemical
  • Cartons, Film, Case
  • Plastic
  • Automatic
  • Electric
  • 380V50Hz customized
  • Hebei, China
  • xinglong
  • customized
  • about 120T
  • CE certification
  • 1 YEAR
  • Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
  • Automatic
  • New Product 2020
  • Provided
  • Provided
  • 1 YEAR
  • Gear, Engine
  • electric, oil, steam
  • 60-220m/min
  • 3,5,7ply
  • 1600-2200mm
  • customized
  • CE, BV
  • optional
  • one year

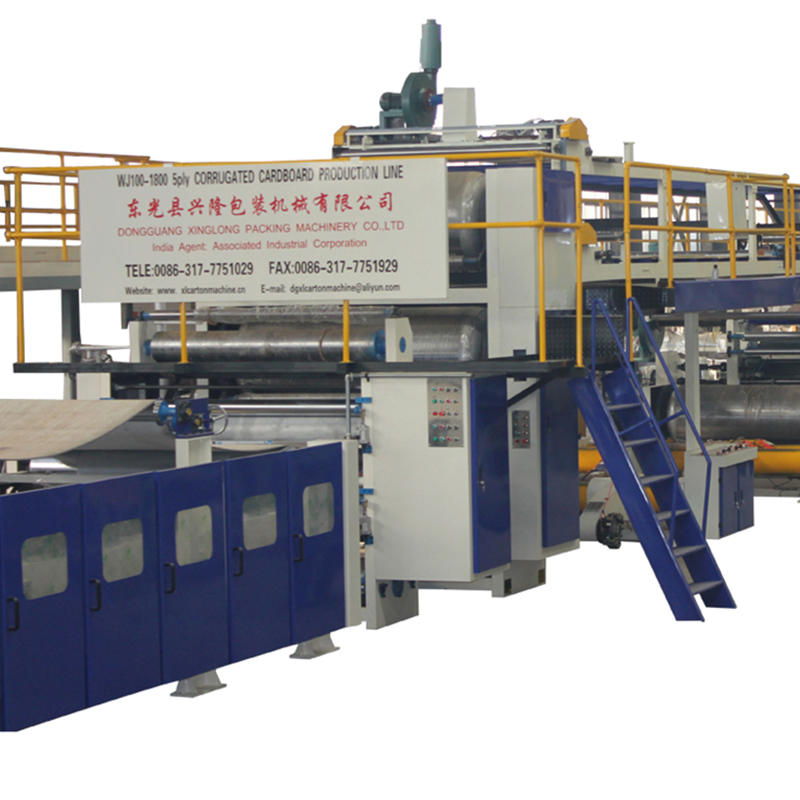

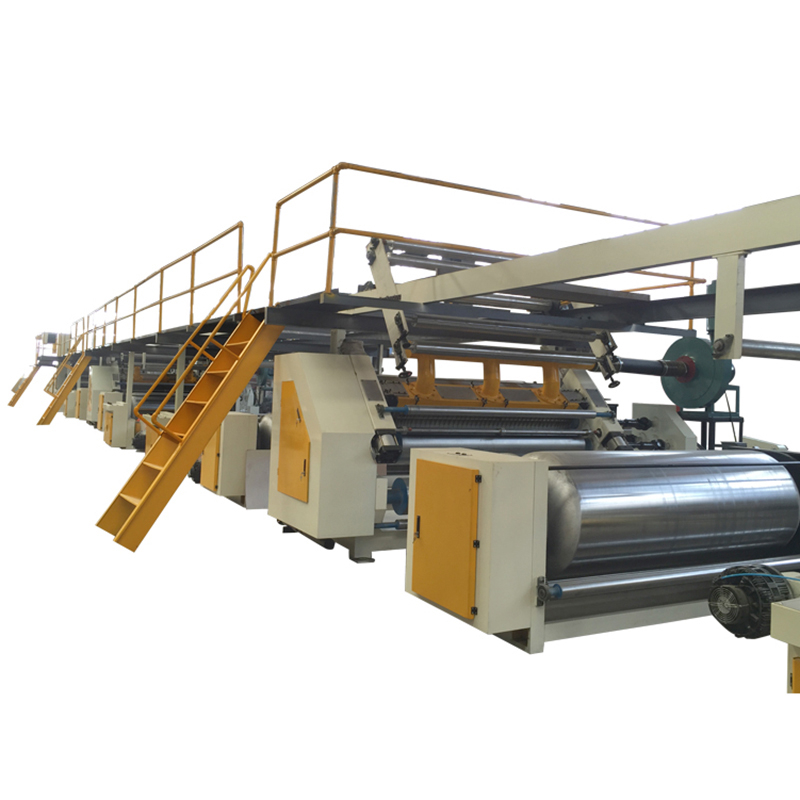

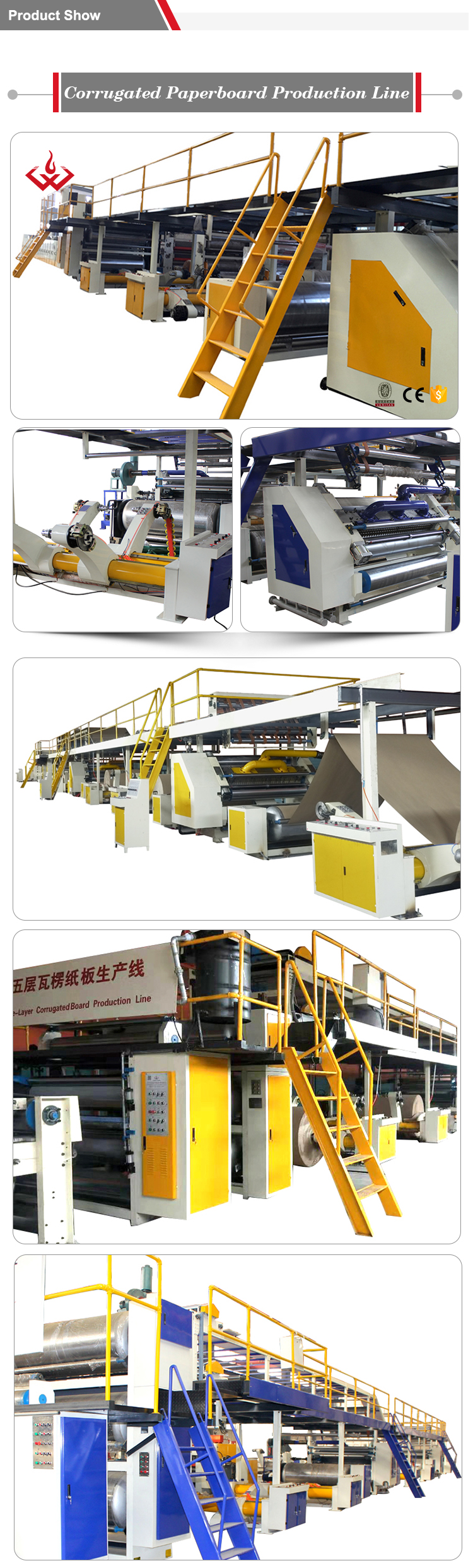

Corrugated  cardboard production line
Corrugated cardboard production line is the professional equipment for producing corrugated cardboard .The production line consists of the Mill Roll Stand, liner(medium paper ) Pre-heater, Single facer machine ,Conveyor bridge , Gluing Machine, Double facer machine , Slitter Scorer , Cut-off , Conveyer and Stacker, Heating System ,Air compression system and Glue Making System and so on. We produced different grade 3,5,7 ply corrugated production line with different fitting. On the base of understanding the requirements of the customers and the advanced skills at home and abroad, our company has developed and designed these production lines with the speed 60~220m/min, the paper with 1600~2200mm and A,B,C,E UV flute production line can satisfy different customers.

Main equippment list
1. Mill roll stand (mechanical and hydraulic shaftless is available)
2. Splicer(option, it is used for high speed production line)
3. Single facer
4. Preheater
5. Multi-preheater
6. Gluing machine
7. Double facer
8. Thin blade slitter scorer(simple type, up-down type, and computer control for options)
9. NC cut-off(servo control, straight and helical)
10. Stacker and delivery machine
11. Paste making system

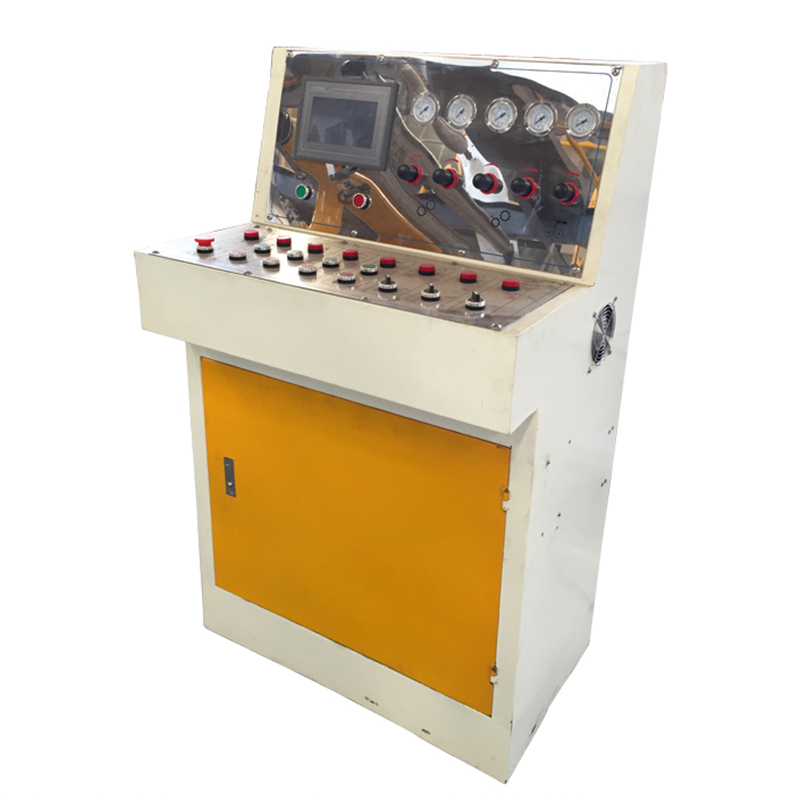

12. Accessories(air compressor, operation box, pipe)

Main technology parameter
Model WJ120-1800
Effective width 1800mm
Design speed 120m/min
Working speed 0-100m/min
Steam pressure and consumption Pressure: 1-1.3Mpa   consumption: 2500-3200kg/h
Air pressure and consumption Pressure: 0.8-1.0Mpa   consumption: 1.3m³/min
Total power About 200kw
Total length About 80m(depend on base drawing)
Dimension About 80m×4.3m× 4.5 m (L×W×H)
Equipment flow: according the customers' workshop to installation the machine.

Drawing





1. Q: Are you a manufacturer, trading company or a third party?

A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.


2. Q: What is your minimum order quantity, can you send me samples?

A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.


3. Q: How does your factory do regarding quality controlling?

A: 1) All raw material we used are environmental-friendly

   2) Skillful workers care every details in handling the producing and packing process

   3) Quality control department are specially responsible for quality in each process

We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.


4. Q: How about the after-sale service?

A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.

   2) To solve the problems with videos/pictures.

   3) One year warranty for spare parts change.
