Xinglong Chian feeder 4 colors printing slotting die-cutting corrugated cardboard making machine

Availability:
Quantity:
  • Flexographic Printer

  • Garment Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Retail, Food Shop, Food & Beverage Shops

  • New

  • Letterpress

  • Hebei, China

  • XingLong

  • Paper Printer

  • Semi-Automatic

  • Multicolor

  • 220V /380V or customized

  • CE

  • 1 YEAR

  • Online support, Field installation, commissioning and training, Video technical support

  • 1200*2600

  • 1200*2400

  • 320*500

Product Description

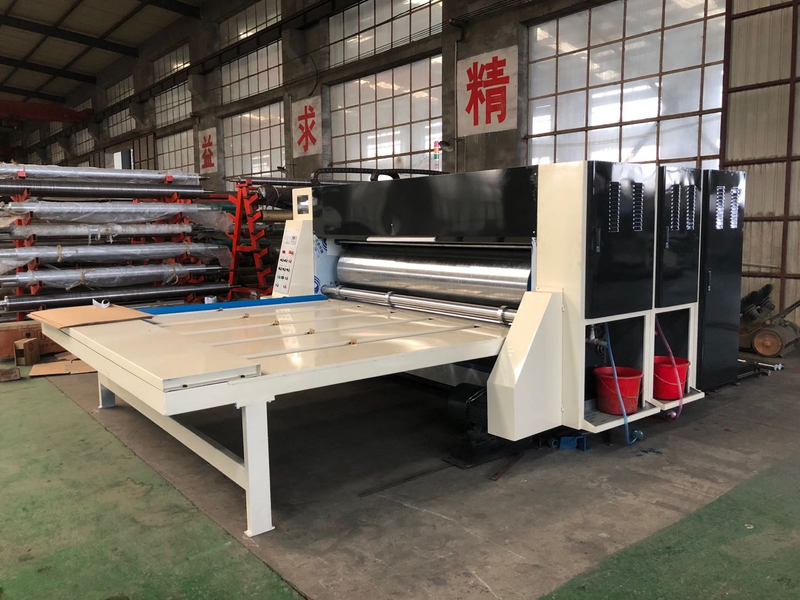

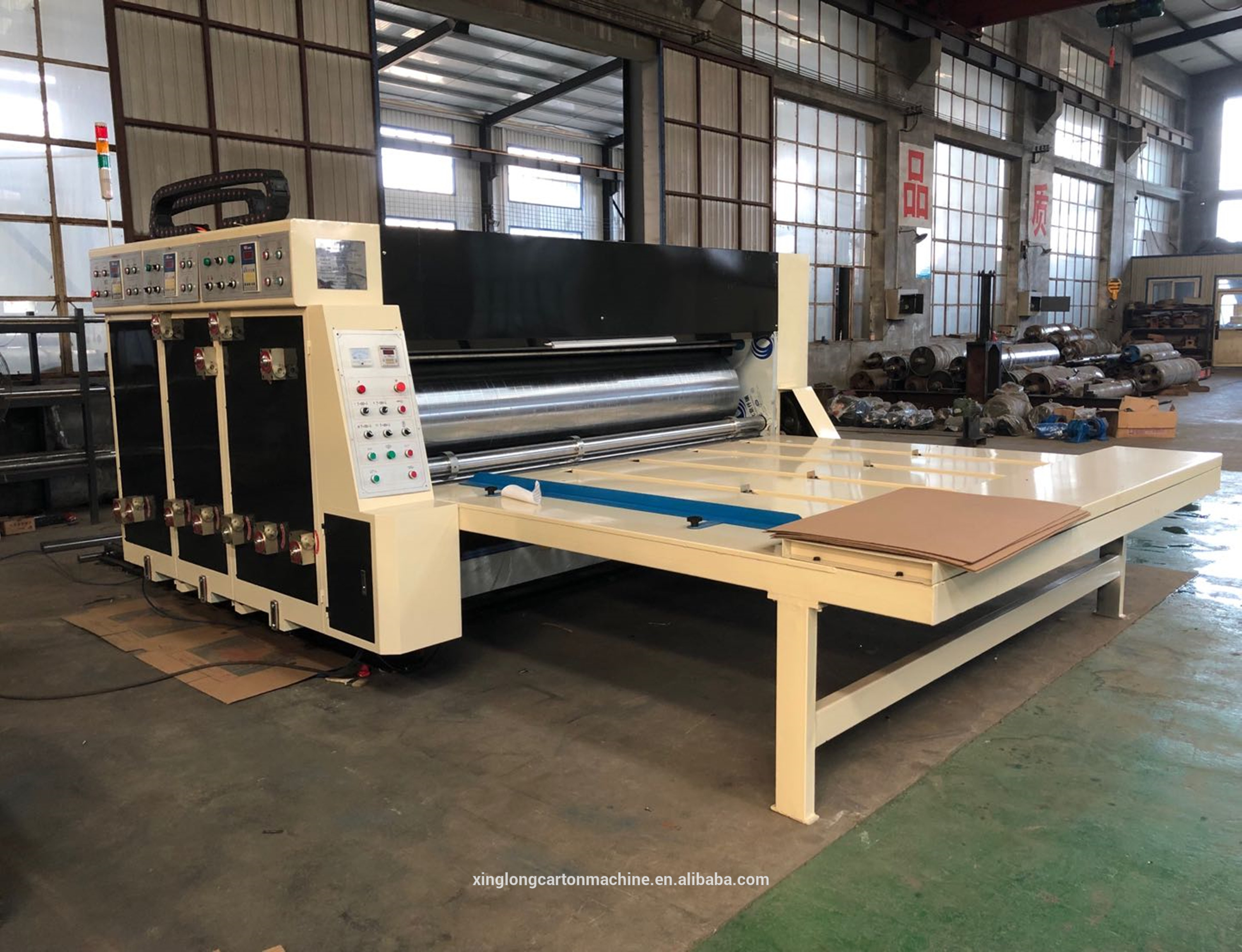

Feeding Unit

This machine adopts chain feeding system, equipped with side gauge make sure feeding paper     accurately.
Abrasion resistance materials as the support of the bottom of chains, fast running, low noise .
Main motor placed under the feed table.
Equipped with block paper steel bar to ensure the easy feeding of the bend cardboard.
Feeding error ±1.5mm.
Printing unit
Printing roller, paper feeding roller, pressure roller, all the surfaces grinding, hard chromium plating。
Adopt planet style electrical adjustment of 360 degrees whatever operating and stopping, quicklyand accurately.

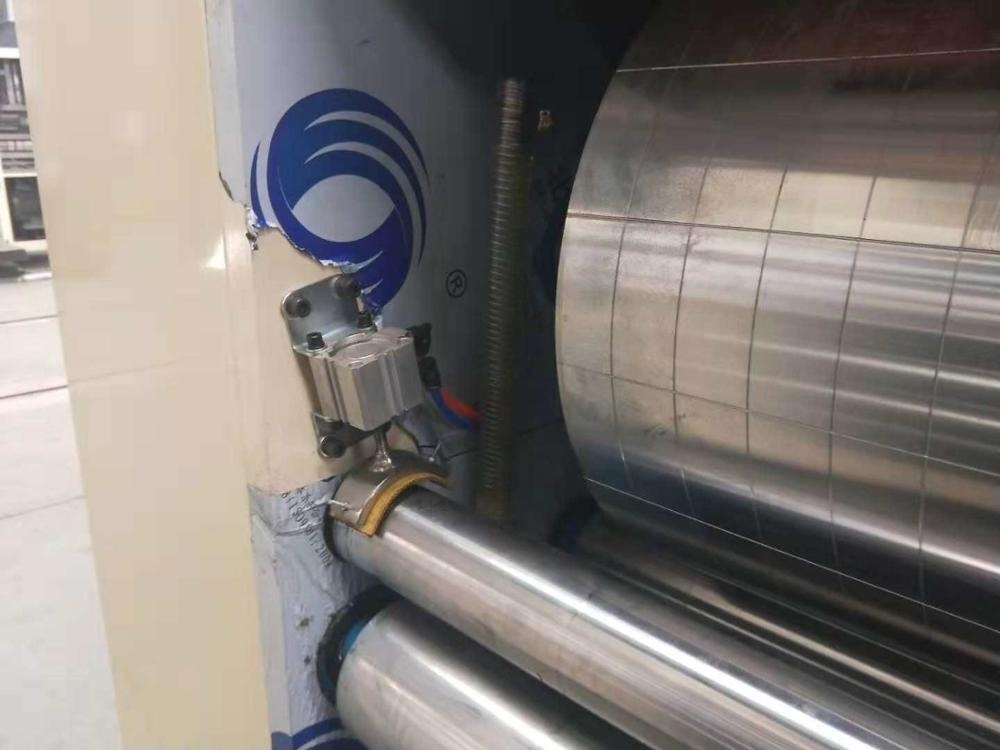

Pneumatic lifting and down the anilox roller, auto ink distributing.
Drive part adopts spray lubricating system, improve the precision and serve life of machine.

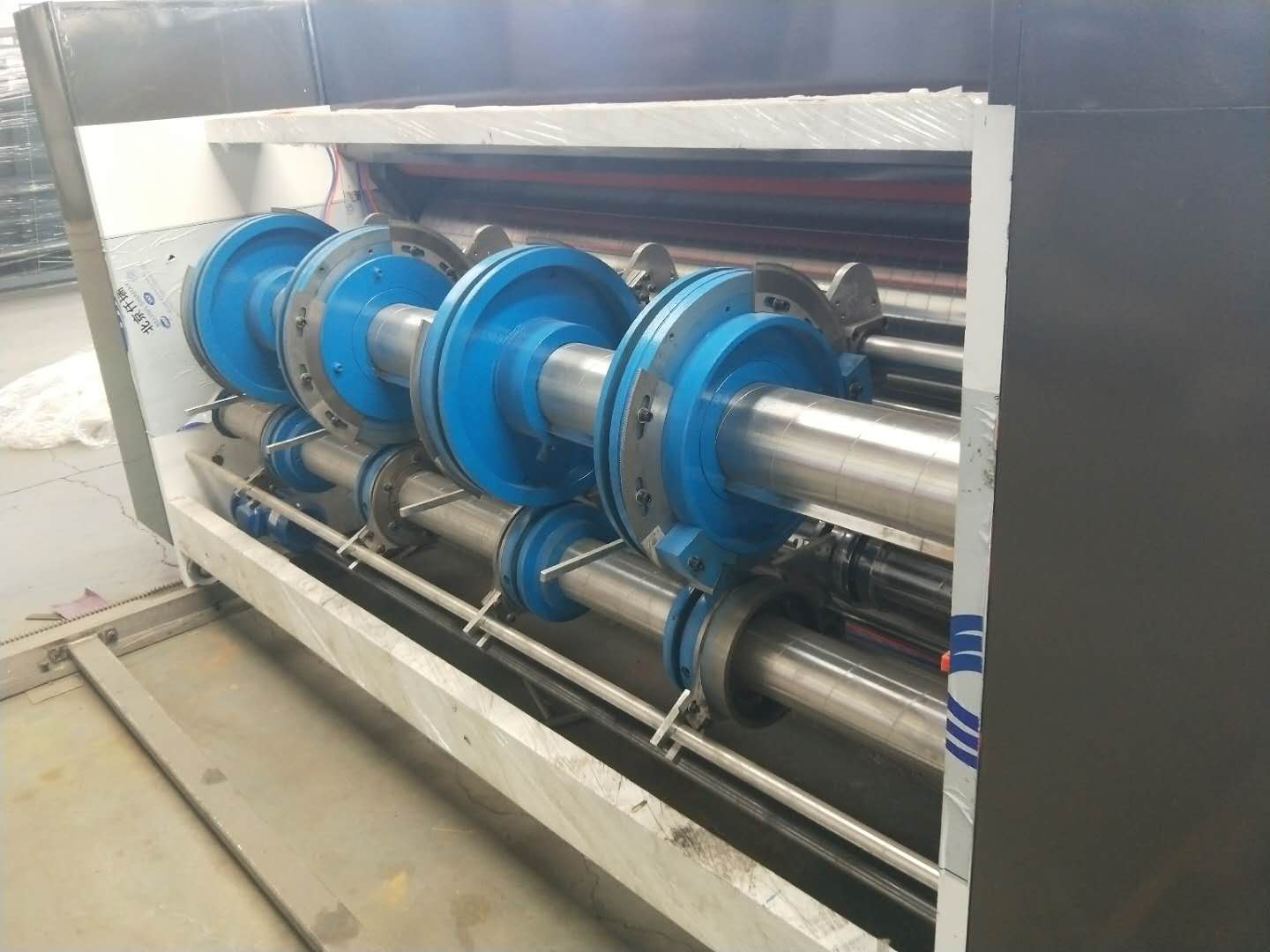

Slotting unit
The slotting knives pedestal can be worm-type adjustment according to the thickness of card board. ( Three & Five layer only).The slitting knives pedestal can be worm-type adjustment according to the thickness of card board. ( Three & Five layer only). The back slotting knife (Height of the box) Four knives adjustment synchronous, easy working. Electric adjustment Printing phase and slotting position. 7mm alloy steel slotting knives with indent heat treatment to enable grinding teeth sharp edge.

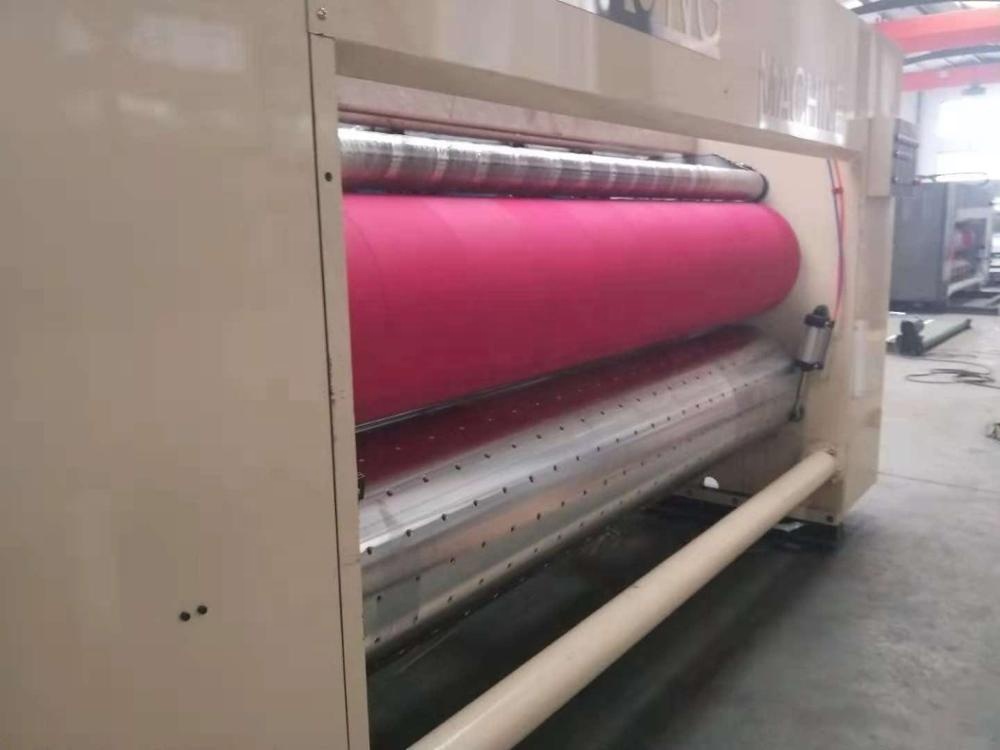

Die-cutting unit
Rubber roller Automatic compensation of line speed can ensure die-cutting size same and right.  Axial position autoamtic left-right move 40mm.
Automatic compensation of line speed can ensure die-cutting size same and right.
With automatic repairing function of upper roll, prolong rubber use life.Adopts good-quality super durable polyurethane rubber from Taiwan.
Size Information
Size Chart of This Design
Model
2800
Roller diameter
Φ410

Max sheet size(mm)
1200×2600

Max printing size (mm)
1200×2400
Min sheet size (mm)
320×500
Min slot space(mm)
190×50×190×50
Working speed(pcs/min)
0-60
Printing precision
±0.5mm
Standard plate thickness
6mm
Sheet thickness
1.2-9mm
Power
11kw
