XingLong Corrugated cardboard Automatic Pre-Folding Carton Folder Gluer machinery

Availability:
Quantity:
Inquire Add to Basket

  • Gluing Machine

  • Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Retail, Food Shop, Food & Beverage Shops

  • New

  • Food, Beverage, Commodity, Apparel

  • Cartons

  • Paper

  • Automatic

  • Electric

  • 220v/380V, or customized

  • Hebei, China

  • Xinglong

  • 12500*3000*1600

  • 5500kg

  • CE

  • 1 YEAR

  • Field installation, commissioning and training, Video technical support, Online support

  • High-accuracy

  • 1200*2400mm

  • 170*450mm

  • 3layer or 5layer

Product Description
Instruction:
1. ZXJ-Q II fully automatic folder glue consist of feeder, glue and fold part, rectify and stacking part. 2. PLC adjust speed, remote adjust speed, computer with touch screen adjust width（optional，Conventional models without）, easy fast and stable. 3. Automatic feeding, gluing, folding, counting, stacking and output. 4. Double frequency convertor operation. 5. Average speed 120m/min, max speed 160m/min. 6. Memory function can storage many orders
Function and character:1. It is suitable for a wide range of cartons, adjust size fast and easy. 2. Machine work stable, package beautiful and firm.3. Easy operation and maintenance4. Pre-crease wheel make the line good after printing, rectify carton automatically, rectify scissors, fishtail problem. 5. Stack part has rectify deviation device to prevent scissors efficient.

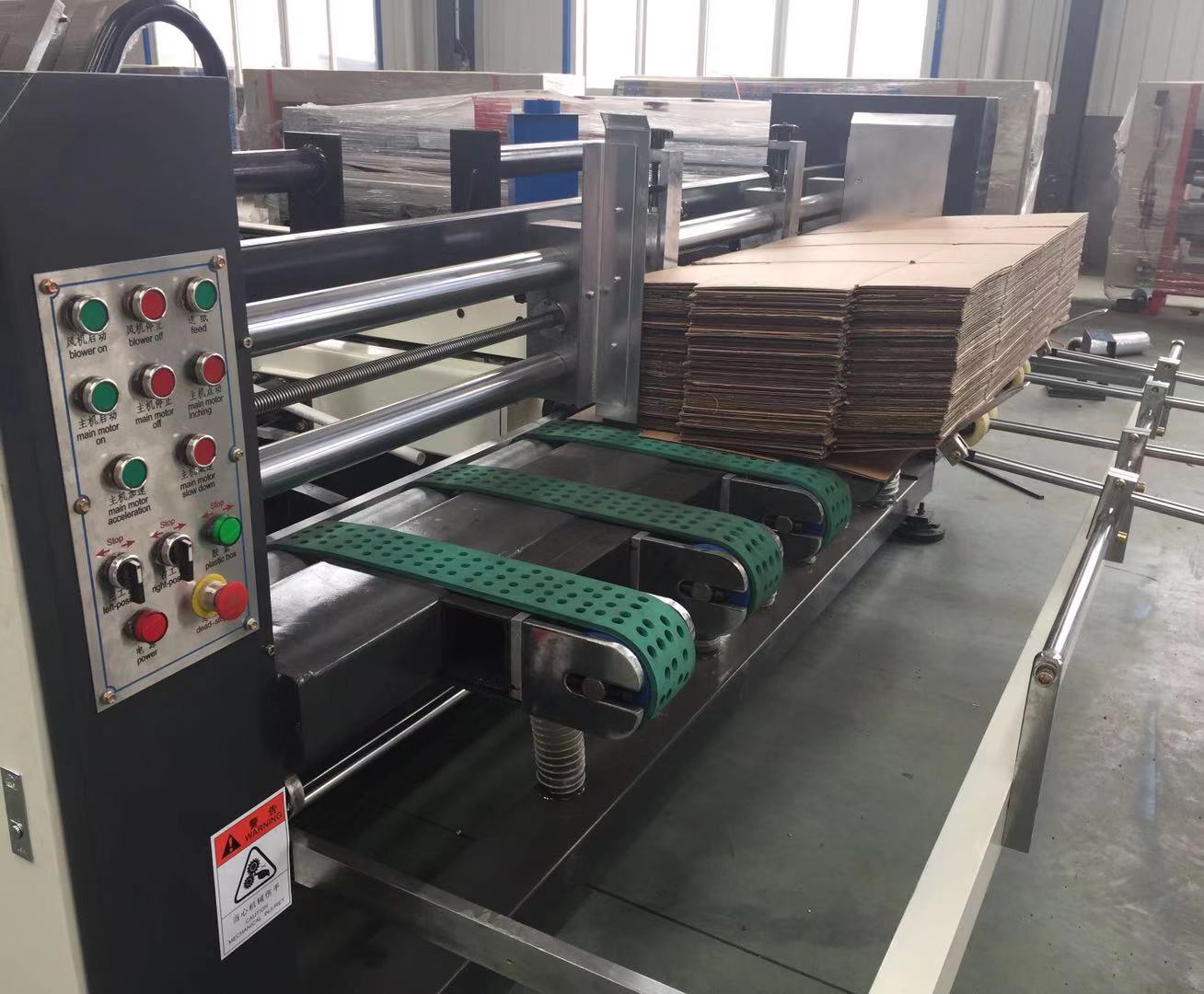

Feeding part
1. Sheet height adjust device made of high quality steel, adjust box height and sheet length fast. 2. Belt of feeder made of high-tech material, strength layer connect ring belt no seamless. No problem when running machine. 3. Taiwan brand suction motor and main drive motor, high quality and stability.4. High grade electromagnetic clutch and brake system, feed sheets one by one or continually, reduce waste when adjust box size.
Glue and fold part
1. GPG motor from Taiwan, stability, fast adjust speed, no noise 2. Imported special material no seamless ring belt, high friction and wearable, fold cardboard accurately and no mistake. 3. Gluing part made of high quality stainless steel, gluing even and efficient, save glue. 4. Double crease rectify device, rectify crease deviation accurately, fold carton most precision.
Stacker and output
Auto counter, stack and flap, output, set box output quantity as clients requirement,
has rectify deviation device to prevent scissors efficient.
Size Information
Model
ZXJ-QⅠ2600
ZXJ-QⅠ2800
Max cardboard size
1200×2400
1200×2600
Min cardboard size
170*450
170*450
Dimension
12500×3000×1600
12500*3200*1600
Motor power
10kw
12kw
Machine weight
5500kg
6500kg

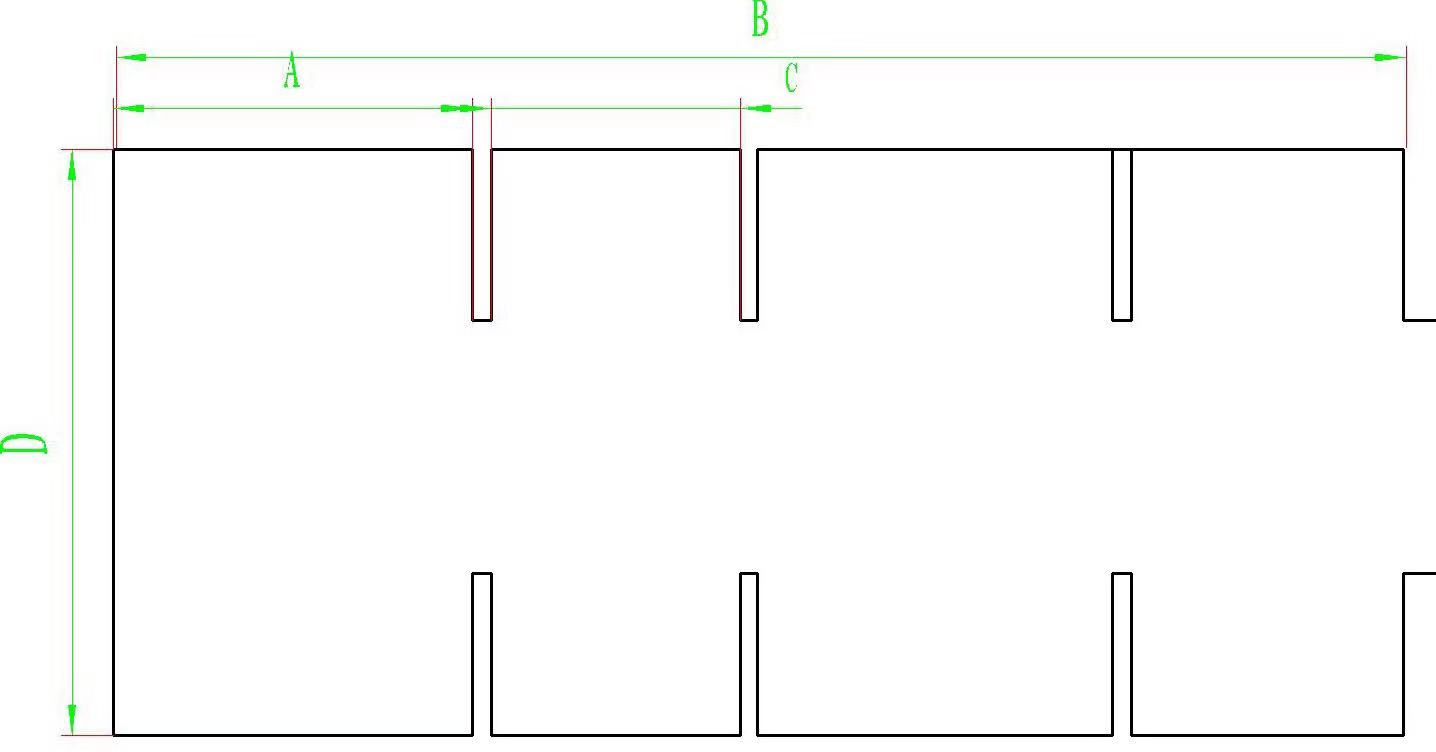

Carton Size:

Model
ZXJ-QⅠ2600
ZXJ-QⅠ2800
A
Max
880mm
880mm
Min
80mm
80mm
B
Max
2400mm
2600mm
Min
700mm
700mm
C
Max
840mm
840mm
Min
160mm
160mm
D
Max
1200mm
1200mm
Min
300mm
300mm
Related Products
Packing&Shipping

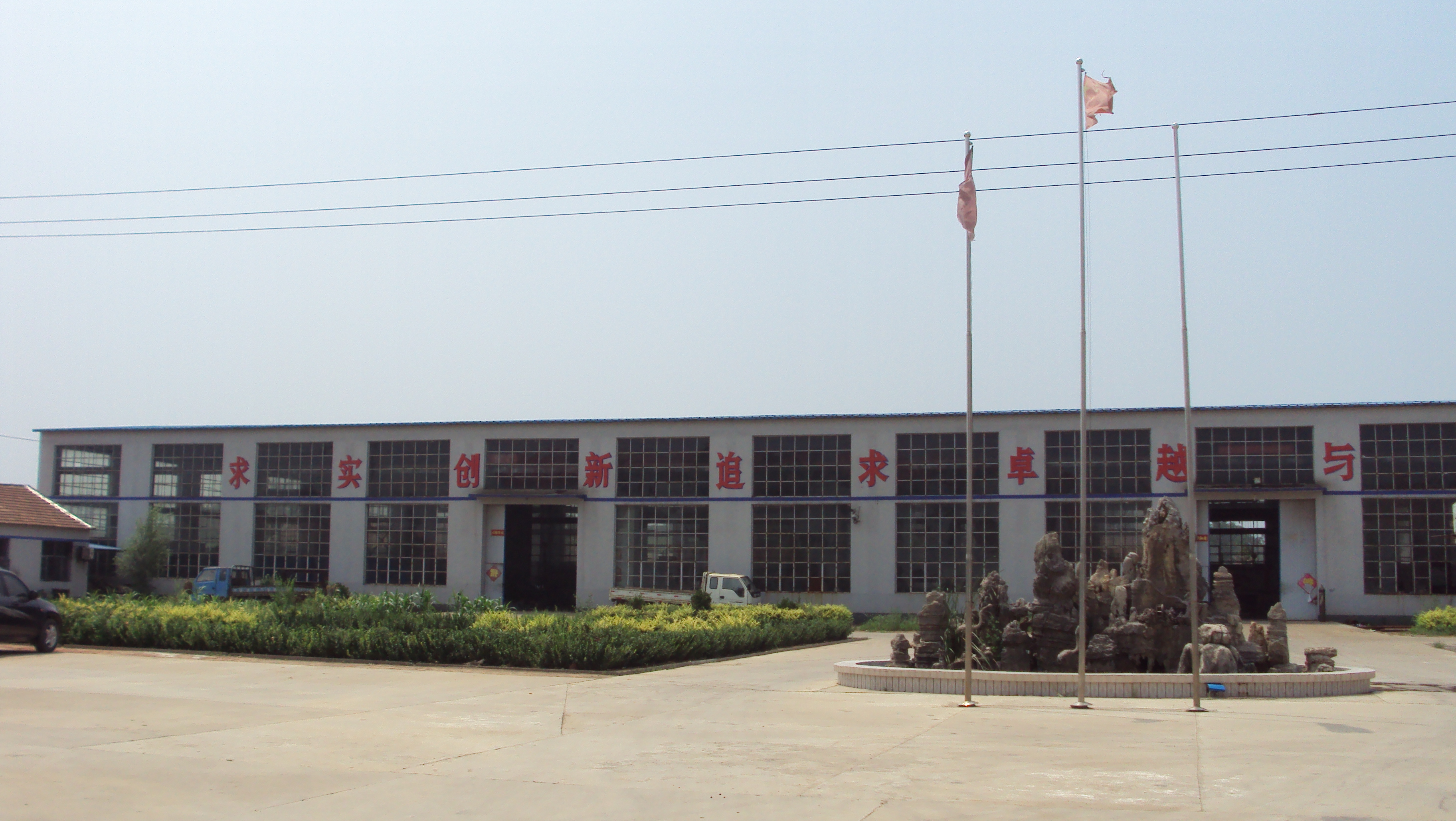

Company Introduction
Xinglong Packaging Machinery Co.,Ltd is a carton equipment manufacturing company.Not only been recognized as top suppliers in the mainland of China for years.Our products are also widely exported to many different countries including Russia,the Middle East,Africa,Southeast Asia,EU,etc,Which earned us a high reputation among the customers.To achieve that.we have been kept providing high quality products by introducing advanced technologies for over 20 years since the day our company was found.Our products mainly included but not limited to:●3ply/5ply/7ply corrugated production line●High speed printing machine●Ordinary printing machine●Single facer●Rotary die-cutter
●Thin blade slitter scorer machine●Rotary slotting machine ●Carton stiching machine●Laminate machine

Cetificate
Customer Photos
FAQ
1. Q:Are you a manufacturer ,trading company or a third party ?   A:We are a manufacturer ,located in Mahai industrial area south of Dongguang county,Hebei province,China.Warmly welcome to visit our company .2. Q:What is your minimum order quantity,can you send me samples:   A:Our minimum quantity is 1 set,as our product is machinery equipment,It’s difficult to send you samples,if you have any questions about the products,pls feel free to contact us for more details ,we glad to provide you more information such as specifications,video,etc.3. Q:How does your factory do regarding quality controlling?   A:1)All raw material we used are environment-friendly.2) Skillful workers care every details in handing the producting and packing process.3) Quality control department are specially responsible for quality in each processWe have been kept providing high quality products by introducing advanced technologies for over 20 years,and our products are also widely exported to many different countries including Russia,the Middle East,Africa,Southeast Asia,EU,etc, Which earned us a hgh reputation among tthe customers.4. Q:How about the after-sale service?   A:1)TM online for 24 hours,also contact by e-mail,skype,MSN,whatsapp,etc.2) Tp solve the problems with videos/pictures.3) One year warranty for spare parts change.
