XingLong Automatic 4 Colors Printing Slotting Die-cutting Carton box making Machinery

Availability:
Quantity:
Inquire Add to Basket

  • Flexographic Printer
  • Garment Shops, Food & Beverage Factory, Retail, Food & Beverage Shops
  • Video technical support, Online support, Spare parts, Field maintenance and repair service
  • None
  • None
  • New
  • Letterpress
  • Hebei, China
  • XingLong
  • carton box printer
  • Automatic
  • Multicolor
  • 220v/380V or customized
  • 25 tons
  • CE
  • 1 YEAR
  • Online support, Field installation, commissioning and training, Video technical support
  • High Productivity
  • 2800
  • 1200*2600
  • 150
  • 120
  • Automatic Machine
  • Client's Request
Product Description

Performance and Characteristics: ●The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, stacking and so on. ●Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .●All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.●Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.●The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.●The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.●Motorized digital phase adjustment with “automatic zero return” and “memories” function ( options: PLC control with touch screen)●The machine adopts lead edge (or kick feeding), low demand for the cardboard, fast.●Main motor is VFD, working stability, low power consumption.


Feeding unit
*Motorized control machine units move, the warming belt is alarming when moving, make sure working safety.
* Drive shaft is equipped with friction clutch to avoid damage machine caused by incorrect operation.
* When machine units separate, each brake system work automatically, make sure gear positioning accurately, fix printing phase, ensure gear engaged correct when machine units lock.


  • Printing unit


* Adopt good quality steel tube, the surface be grinded, hard chrome plated, balance correction, running smoothly

* Full hang-plate device, 10mm hang-plate strip is available. Foot switch electric control roller run clockwise or anticlockwise, convenient hanging version、unloading version.
* Seamless steel tube surface being grinded and plated hard chrome, balance correction, smooth operation


Slotting unit
*Slotting & crease synchronous ajdust,Slotting die, crease wheel joint movement by computer control
*Slotting phase adjustment,Structure of planetary gear type Slotting phase adopt 360 degree synchronous adjustment by computer control
*Slotting knives width is 7mm, alloy steel with heat treatment, grinding, saw tooth knives. sharp-edged and high precision.
*The carton height adjustment adopt four knife synchronous
* Equipped manual gap adjustment device that fast and self-locking, dial indicates to show set direction and set amount.
*Using high quality steel, with grinding process and plating hard chromium.
Die-cutting unit

*High quality steel be finished process, the surface chrome plated, do balance correction, running stable.
*Pneumatic lift-down, it is easy to work, reduce cut times on anvil cover, prolong its use life.
*Planetary gear mechanis ,Phase adjustment by motorized control in 360degree( both running and stop)
*High quality steel be finished process, the surface chrome plated, do balance correction, running stable. * The gap between top roller with bottom roller be adjusted by hand.

Size Information
Size Chart of This Design
Model
QYKMA2800
Machine inside width (mm)
2800
Max feeding paper size(mm)
1200*2600
Max effective printing size(mm)
1200*2400
Min coverage size(mm)
380*500mm
Min slotting space(mm)
290*80*290*80
Design speed（pcs/min）
120/min
Working speed（pcs/min）
100pcs/min
Min coverage size(mm)
6mm
Printing precision
±0.75mm
Thickness of cardboard
1.2-9mm
Wall thickness
40mm
Main motor powe
About 15KW
Related Products

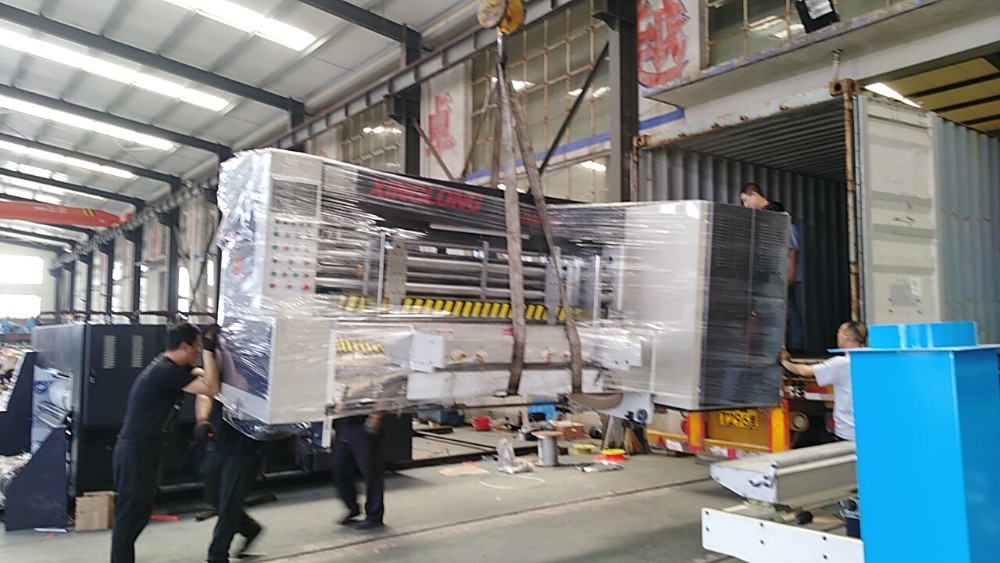

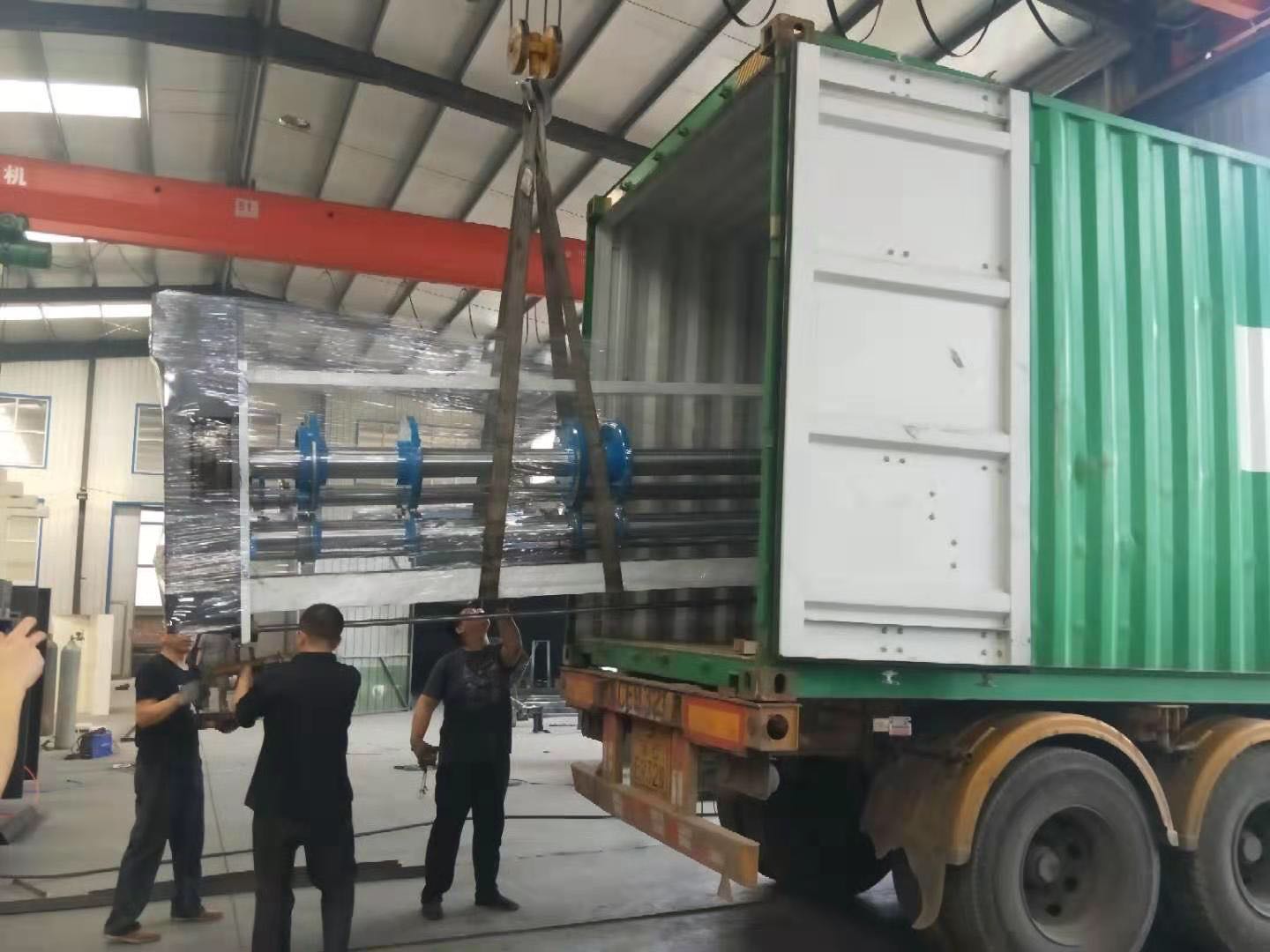

Packing&Shipping




Company Introduction
Xinglong Packaging Machinery Co.,Ltd is a carton equipment manufacturing company.Not only been recognized as top suppliers in the mainland of China for years.Our products are also widely exported to many different countries including Russia,the Middle East,Africa,Southeast Asia,EU,etc,Which earned us a high reputation among the customers.To achieve that.we have been kept providing high quality products by introducing advanced technologies for over 20 years since the day our company was found.Our products mainly included but not limited to:
●3ply/5ply/7ply corrugated production line●High speed printing machine●Ordinary printing machine●Single facer●Rotary die-cutter●Thin blade slitter scorer machine●Rotary slotting machine ●Carton stiching machine●Laminate machine




Certificate

Customer Photos








FAQ
1. Q:Are you a manufacturer ,trading company or a third party ?   A:We are a manufacturer ,located in Mahai industrial area south of Dongguang county,Hebei province,China.Warmly welcome to visit our company .2. Q:What is your minimum order quantity,can you send me samples:   A:Our minimum quantity is 1 set,as our product is machinery equipment,It’s difficult to send you samples,if you have any questions about the products,pls feel free to contact us for more details ,we glad to provide you more information such as specifications,video,etc.3. Q:How does your factory do regarding quality controlling?   A:1)All raw material we used are environment-friendly.2) Skillful workers care every details in handing the producting and packing process.3) Quality control department are specially responsible for quality in each processWe have been kept providing high quality products by introducing advanced technologies for over 20 years,and our products are also widely exported to many different countries including Russia,the Middle East,Africa,Southeast Asia,EU,etc, Which earned us a hgh reputation among tthe customers.4. Q:How about the after-sale service?   A:1)TM online for 24 hours,also contact by e-mail,skype,MSN,whatsapp,etc.2) Tp solve the problems with videos/pictures.3) One year warranty for spare parts change.
