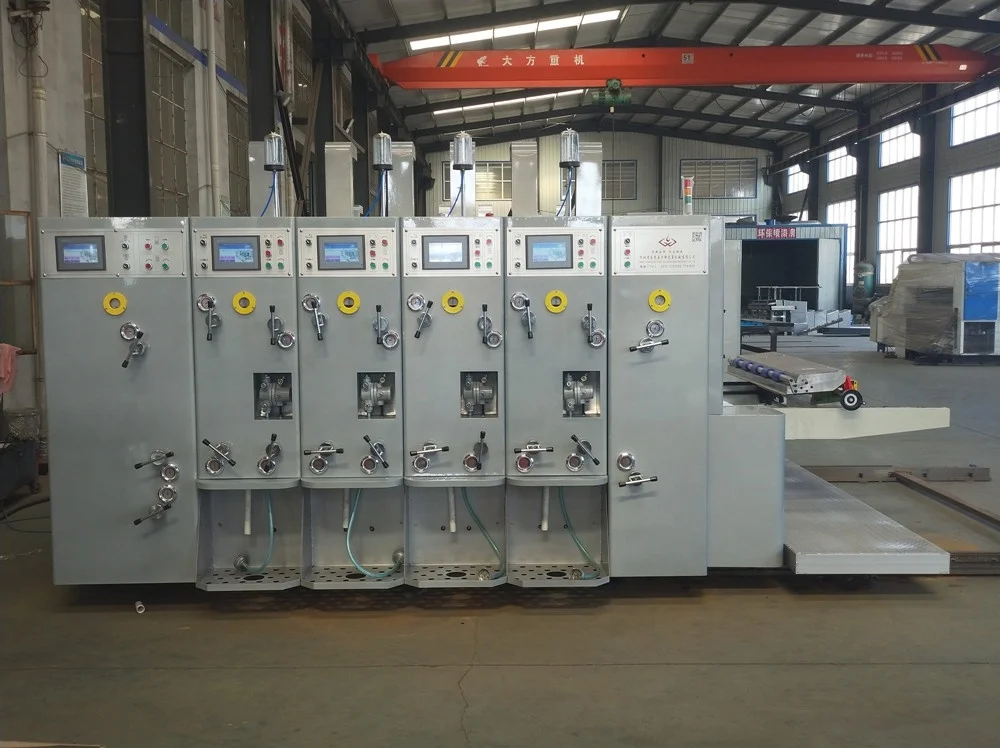

XINGLONG best sale corrugated carton flexo printing machine 4 colour

Share to:

XINGLONG best sale corrugated carton flexo printing machine 4 colour

Quantity:



Inquire Add to Basket

Applicable Industries:
Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, carton box factory
Type:
automatic
After-sales Service Provided:
Engineers available to service machinery overseas
color:
1-6 customized
Speed:
100pcs/min
Warranty:
one year
Package:
plastic or no package
Suitable for:
carton Box
Function:
Printing Slotting Die Cutting
Model:
FAY1224
Voltage:
380V/440V
Feeding way:
Lead Edge Feeder

Product Description

Product Description

•Features:

Design according to high request and reliable function, humanization operation that can setting, revision, implement, changing and memories in short time, and display data.

The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, and so on.

•All of drive rollers are made of high steel, hard chrome plated the surface with grinded.

•Drive gears adopt high quality steel with heat treatment with grinded.

•The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.

•Engineer oil automatic balance device, keep the oil level equal in each unit.

•Feeding type use lead edge

Motorized digital phase adjustment with “automatic zero return” and “memories” function PLC control with touch screen.

Main motor is VFD, working stability, low power consumption.

model	FAY1224
design speed	150pcs/min
working speed	120pcs/min
wall thickness	50mm
gear thickness	50mm
max feed size	1200*2400mm

feeding unit

•Drive gears adopt high quality steel with heat treatment with grinded.

•The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.

•Engineer oil automatic balance device, keep the oil level equal in each unit.

•Phase adopts electric digital adjusting with “automatic zero return” and ‘memories “function (options: PLC control touch screen)

•Feeding type use lead edge or kick feeding.

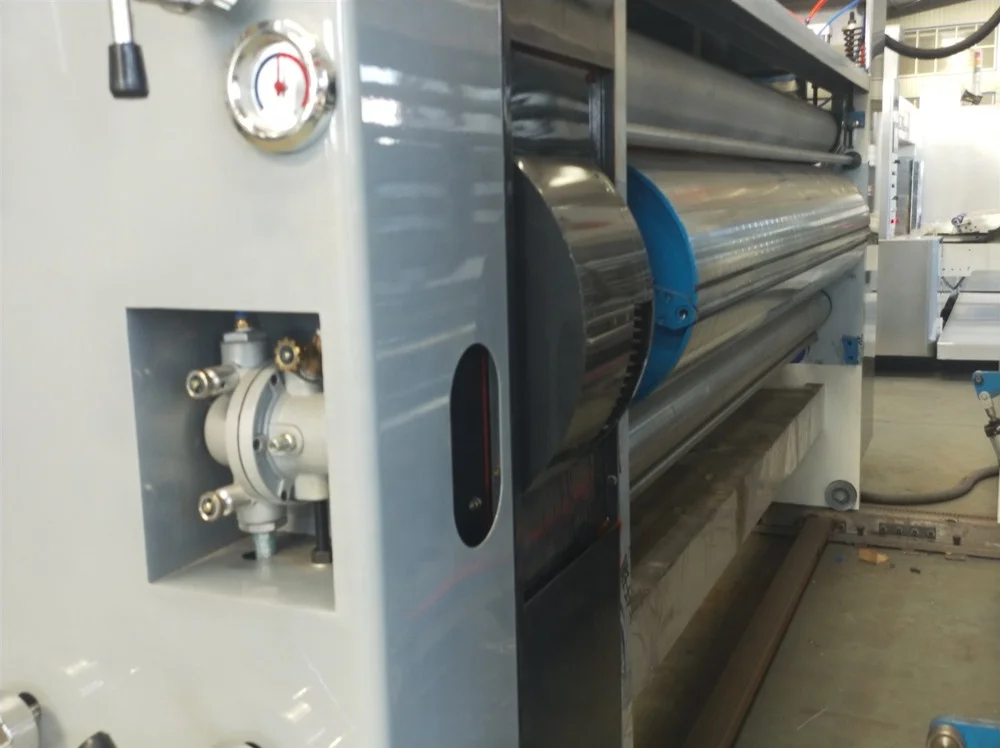

printing unit

•The printing roller adopt stemless steel pipe, the surface be grinded, hard chrome plated, balance correction, running smoothly.

•With quickly change printing plate device, when load or unload printing plate, foot switch electric control roller run clockwise or anticlockwise.

•The feeding roller, impression roller, rubber roller and anilox roller space adjusted by self-locking device.

•Printing and phase fixed device, pneumatic brake. When units separating or cleaning, braking mechanism limit gear running, keep original gear’s position

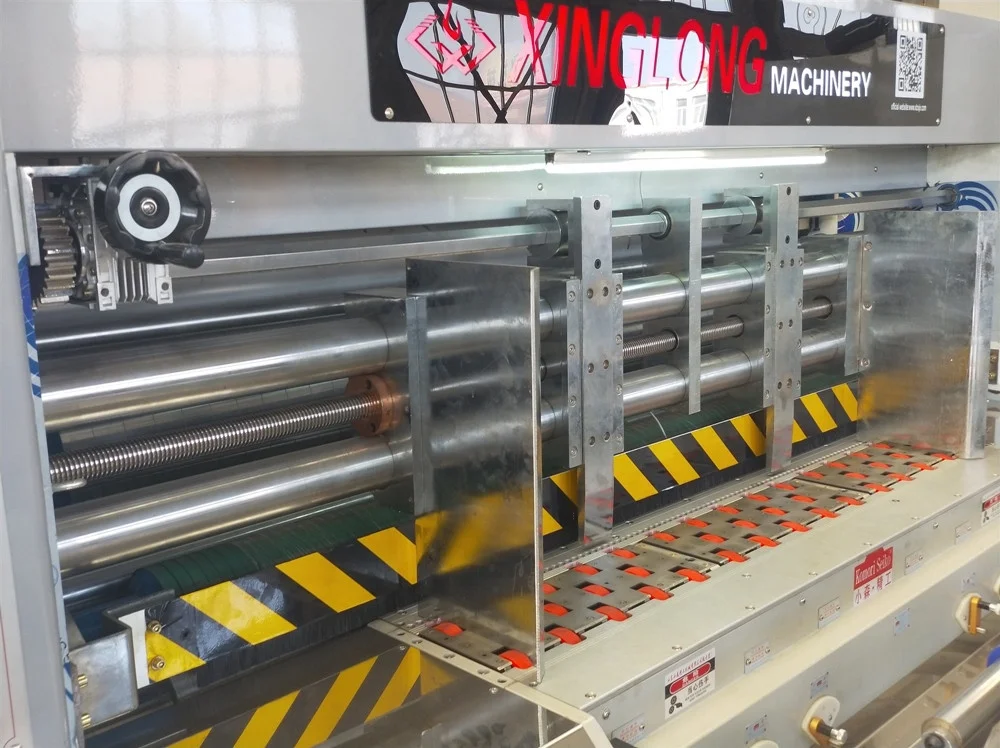

slotting unit

•With pre-creasing wheels, after pre-creasing cardboard not easy destroy.

•Single shaft double slotting knife, carton box height adjusting adopts PLC and digital control.(or adopt PLC and touch screen adjusting )

•Slotting phase adopt PLC and digital adjustment in360 degree whatever running and stop .(or adopt PLC and touch screen adjusting )

•Slotting pedestal and creasing wheels horizontal moving adopt electric synchronous adjustment. .(or adopt PLC and touch screen adjusting )

•Creasing space and knife roller space adjusting adopts self-locking device.

•The carton height adjustment with anticollision device for the slotting knives, will not destroy the machine.

•Every slotting knife pedetals movement with anticollision device(digital type)

•Slotting knives width is 7mm, alloy steel with heat treatment, grinding, saw tooth knives. Double type cutting knives, sharp-edged and high precision.

•The hole an handle hold die is option.

die-cutting unit

•The rubber roller adopt mechanical control the position move left and right. The movement distance is 40mm.

•The phase of die-cutting machine unit adopt electric 360 degree adjust, accord the error to input the adjust data, ca be adjusted while the machine running or stop. .(or adopt PLC and touch screen adjusting )

•The space adjustment between rubber roller and die roller adopt self-locking structure, with cylinder big scope quickly adjust, decrease the rubber wear, increase the rubber life.

•The space adjustment between the peed rollers adopt self-locking structure.

•The unique speed compensation device can make the rubber roller rolling running with the die roller, make the surface speed of the rubber cushion is completely controlled by the die roller, the shape of the carton sheet will absolutely equal to the die pattern.

•There is a rubber repair device with the machine, the rubber can be used after be repaired.
