WJ300-2500-Ⅱ 5ply high speed corrugated cardboard production line

Availability:
Quantity:
Inquire Add to Basket

  • WJ300-2500-Ⅱ

  • xinglong

  • Five layer corrugated cardboard production line

  • New

  • Ordinary Product

  • China,Hebei

  • Provided

  • Automatic

  • 1 Year

  • Provided

  • Provided

  • High speed

封面（蓝）1

High Speed 5ply Corrugated cardboard production line

5层生产线

Main Technical Parameters and Requirements in production line

Type:WJ300-2500-Ⅱ type five layer corrugated cardboard production line:

1

Effective width

2500mm

2

Design produce speed

300m/min

3

Three layer economic speed

230-280m/min

4

Five layer economic speed

190-260m/min

5

Seven layer economic speed

-------------------

6

Maximum order change speed

100m/min

7

Longitudinal separation accuracy

±1mm

8

Cross-cutting precision

±1mm

note

Speed the above targets required to achieve：effective width2500mm，Comply with the following standards and ensure the paper's equipment condition 175 ℃ heating surface temperature.

Top paper index

100g/㎡--180g/㎡  Ring crush index（N.m/g）≥8    (Water containing8-10%)

Core paper index

80g/㎡--160g/㎡  Ring crush index（N.m/g）≥5.5  (Water containing8-10%)

In paper index

90g/㎡--160g/㎡    Ring crush index（N.m/g）≥6    (Water containing8-10%)

9

Flute combination

10

Steam requirement

The maximum pressure 16kg/cm2

Common pressure10-12kg/cm2

use4000kg/Hr

11

Electricity demand

AC380V 50Hz 3PH

Total power≈350KW

Running Power≈150KW

12

Compressed air

The maximum pressure 9kg/cm2

Common pressure4-8kg/cm2

use1m3/min

13

Space

≈Lmin120m*Wmin12m*Hmin5m(The actual drawing to provider to provide audited prevail)

Customer owned section:

1. Steam heating system: proposal with 4000Kg / Hr of a steam boiler. Pressure:1.25Mpa steam pipeline.

2. Air compressed machine、air pipeline、glue conveying pipe.

3. Power supply、wires connected to the operation panel and line pipe.

4. Water sources、water pipelines、buckets and so on.

5. Water, electricity, gas flush mounting civil foundation.

6. Test with the base paper、corn starch (potato)、Industrial use caustic soda、borax and other material.

7. Oil equipment、lubricating oil、hydraulic oil、lubricating grease.

8. Installation、commissioning of food, accommodation. And provide installers with the installation.

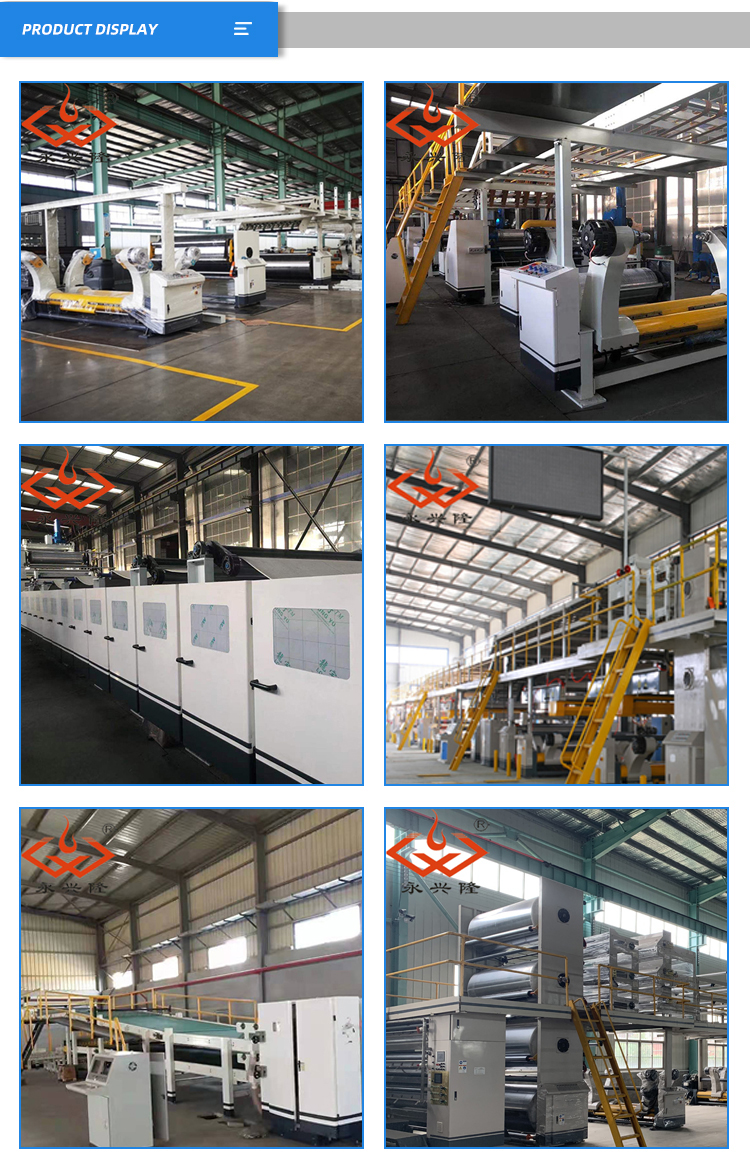

生产线展示
