WJ150-2000
xinglong
3/5 Ply Corrugated cardboard production line
New
Making corrugated cardboard
China,Hebei
Provided
1 Year
Ordinary Product
Video Technial Support
Provided
High quality

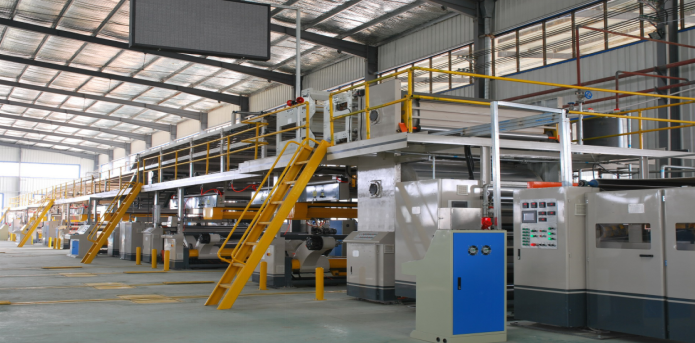

WJ150-3/5 ply Corrugated cardboard production line
Type: WJ150-1600/1800/2000/2200/2500 corrugated paperboard production line:
Technology Parameters
1 | Effective width | 1600-2500mm | 2 | Design produce speed | 150m/min | |||
3 | Three layer economic speed | 100-120m/min | 4 | Maximum order change speed | 80-100m/min | |||
5 | Longitudinal separation accuracy | ±1mm | 6 | Cross-cutting precision | ±1mm | |||
Note | Speed the above targets required to achieve：effective width1600-2500mm，Comply with the following standards and ensure the paper's equipment condition 175 ℃ heating surface temperature. | |||||||
Top paper index | 100g/㎡--180g/㎡ Ring crush index（N.m/g）≥8 (Water containing8-10%) | |||||||
Core paper index | 80g/㎡--160g/㎡ Ring crush index（N.m/g）≥5.5 (Water containing8-10%) | |||||||
In paper index | 90g/㎡--160g/㎡ Ring crush index（N.m/g）≥6 (Water containing8-10%) | |||||||
9 | Flute combination | |||||||
10 | Steam requirement | The maximum pressure 16kg/cm2 | Common pressure10-12kg/cm2 | Use 2000kg/Hr | ||||
11 | Electricity demand | AC380V 50Hz 3PH | Total power≈350KW | Running Power≈150KW | ||||
12 | Compressed air | The maximum pressure 9kg/cm2 | Common pressure4-8kg/cm2 | use1m3/min | ||||
13 | Space | ≈Lmin60m*Wmin10m*Hmin5m(The actual drawing to provider to provide audited prevail) | ||||||
Customer owned senction:
1. Steam heating system：proposal with 4000Kg / Hr of a steam boiler. Pressure:1.25Mpa steam pipeline. 2. Air compressed machine、air pipeline、glue conveying pipe. 3. Power supply、wires connected to the operation panel and line pipe. 4. Water sources、water pipelines、buckets and so on. 5. Water, electricity, gas flush mounting civil foundation. 6. Test with the base paper、corn starch (potato)、Industrial use caustic soda、borax and other material. 7. Oil equipment、lubricating oil、hydraulic oil、lubricating grease. 8. installation、commissioning of food, accommodation. And provide installers with the installation. |
CONFIGURATION LIST
No. | Name | Qty | Feature |
1 | Hydraulic Mill Roll Stand
| 5 | --Max support paper diameter:1500mm --Up-down lift, left-right move controlled by hydraulic --Expansion clamp, 2-point brake by --pneumatic control --with trolley and track |
2 | Pre-heater
| 4 | --The roller φ600 mm,Electric adjustment angle,adjusting heating area within the range of 360 ° |
3 | Single Facer
| 2 | --Corrugated rollerφ280mm, 48CrMo high quality alloy steel, --Independent gearbox,universal joint drive structure |
4 | Conveying Bridge
| 1 | --The main beam is connected with the GB 200 channel steel, 150H steel, 63 angle steel --Suction tension and electric correcting |
5 | Triplex Pre-heater
| 1 | --The rollerφ600 mm,electric adjustment angle angle，adjusting heating area within the range of 360 ° |
6 | Glue Machine
| 1 | --With preheater device --Independent frequency motor drive --Circulating supply glue with PLC control --Man-machine interface display |
7 | DF-80 Double Facer
| 1 | --Main frame is 300 mm GB channel steel --Hot plate 600 mm 14 pcs --4 M cooling section --The upper and lower belt correct automatically --Temperature display --Main drive Frequency motor drive --Good quality high speed cotton woven belt |
8 | Thin Blade Machine
| 1 | -Electric correction -alloy steel blade -5blades and 8scorers -electric adjust blade，pneumatic lock blade die |
9 | NC Cut-Off
| 1 | --Full AC servo control --Energy storage type braking --Helical knife structure --Oil-immersed gear transmission --10.4-inch touch screen display |
10 | Horizontal output | 1 | - with horizontal output -2 delivery parts, convey sheet smooth and tidy -Automatic counting |
11 | Glue Making System
| 1 | --Customers supply the pipeline --The glue making device includes: carrier tank,main body tank,storage tank,glue feeding pump and returning pump |
12 | Internal Steam System
| 1 | --Steam system components adopt GB valva: Contains rotary joint,up and down distributor ,drain valve and pressure gauge, etc --Boiler and pipeline supply by customer |
WJ150-3/5 ply Corrugated cardboard production line
Type: WJ150-1600/1800/2000/2200/2500 corrugated paperboard production line:
Technology Parameters
1 | Effective width | 1600-2500mm | 2 | Design produce speed | 150m/min | |||
3 | Three layer economic speed | 100-120m/min | 4 | Maximum order change speed | 80-100m/min | |||
5 | Longitudinal separation accuracy | ±1mm | 6 | Cross-cutting precision | ±1mm | |||
Note | Speed the above targets required to achieve：effective width1600-2500mm，Comply with the following standards and ensure the paper's equipment condition 175 ℃ heating surface temperature. | |||||||
Top paper index | 100g/㎡--180g/㎡ Ring crush index（N.m/g）≥8 (Water containing8-10%) | |||||||
Core paper index | 80g/㎡--160g/㎡ Ring crush index（N.m/g）≥5.5 (Water containing8-10%) | |||||||
In paper index | 90g/㎡--160g/㎡ Ring crush index（N.m/g）≥6 (Water containing8-10%) | |||||||
9 | Flute combination | |||||||
10 | Steam requirement | The maximum pressure 16kg/cm2 | Common pressure10-12kg/cm2 | Use 2000kg/Hr | ||||
11 | Electricity demand | AC380V 50Hz 3PH | Total power≈350KW | Running Power≈150KW | ||||
12 | Compressed air | The maximum pressure 9kg/cm2 | Common pressure4-8kg/cm2 | use1m3/min | ||||
13 | Space | ≈Lmin60m*Wmin10m*Hmin5m(The actual drawing to provider to provide audited prevail) | ||||||
Customer owned senction:
1. Steam heating system：proposal with 4000Kg / Hr of a steam boiler. Pressure:1.25Mpa steam pipeline. 2. Air compressed machine、air pipeline、glue conveying pipe. 3. Power supply、wires connected to the operation panel and line pipe. 4. Water sources、water pipelines、buckets and so on. 5. Water, electricity, gas flush mounting civil foundation. 6. Test with the base paper、corn starch (potato)、Industrial use caustic soda、borax and other material. 7. Oil equipment、lubricating oil、hydraulic oil、lubricating grease. 8. installation、commissioning of food, accommodation. And provide installers with the installation. |
CONFIGURATION LIST
No. | Name | Qty | Feature |
1 | Hydraulic Mill Roll Stand
| 5 | --Max support paper diameter:1500mm --Up-down lift, left-right move controlled by hydraulic --Expansion clamp, 2-point brake by --pneumatic control --with trolley and track |
2 | Pre-heater
| 4 | --The roller φ600 mm,Electric adjustment angle,adjusting heating area within the range of 360 ° |
3 | Single Facer
| 2 | --Corrugated rollerφ280mm, 48CrMo high quality alloy steel, --Independent gearbox,universal joint drive structure |
4 | Conveying Bridge
| 1 | --The main beam is connected with the GB 200 channel steel, 150H steel, 63 angle steel --Suction tension and electric correcting |
5 | Triplex Pre-heater
| 1 | --The rollerφ600 mm,electric adjustment angle angle，adjusting heating area within the range of 360 ° |
6 | Glue Machine
| 1 | --With preheater device --Independent frequency motor drive --Circulating supply glue with PLC control --Man-machine interface display |
7 | DF-80 Double Facer
| 1 | --Main frame is 300 mm GB channel steel --Hot plate 600 mm 14 pcs --4 M cooling section --The upper and lower belt correct automatically --Temperature display --Main drive Frequency motor drive --Good quality high speed cotton woven belt |
8 | Thin Blade Machine
| 1 | -Electric correction -alloy steel blade -5blades and 8scorers -electric adjust blade，pneumatic lock blade die |
9 | NC Cut-Off
| 1 | --Full AC servo control --Energy storage type braking --Helical knife structure --Oil-immersed gear transmission --10.4-inch touch screen display |
10 | Horizontal output | 1 | - with horizontal output -2 delivery parts, convey sheet smooth and tidy -Automatic counting |
11 | Glue Making System
| 1 | --Customers supply the pipeline --The glue making device includes: carrier tank,main body tank,storage tank,glue feeding pump and returning pump |
12 | Internal Steam System
| 1 | --Steam system components adopt GB valva: Contains rotary joint,up and down distributor ,drain valve and pressure gauge, etc --Boiler and pipeline supply by customer |
