WJ150-3/5 PLY Corrugated cardboard production line

WJ150-3/5 PLY CORRUGATED CARDBOARD PRODUCTION LINE

Type：WJ150-1600/1800/2000/2200/2500 corrugated paperboard production line：

Technology parameters

1	Effective width		1600-2500mm	2		Design produce speed	150m/min
3	Three layer economic speed		100-120m/min	4		Maximum order change speed	80-100m/min
5	Longitudinal separation accuracy		±1mm	6		Cross-cutting precision	±1mm
note	Speed the above targets required to achieve：effective width1600-2500mm，Comply with the following standards and ensure the paper's equipment condition 175 ℃ heating surface temperature.
	Top paper index	100g/㎡--180g/㎡  Ring crush index（N.m/g）≥8    (Water containing8-10%)
	Core paper index	80g/㎡--160g/㎡  Ring crush index（N.m/g）≥5.5  (Water containing8-10%)
	In paper index	90g/㎡--160g/㎡    Ring crush index（N.m/g）≥6    (Water containing8-10%)
9	Flute combination
10	Steam requirement	The maximum pressure 16kg/cm2			Common pressure10-12kg/cm2			Use 2000kg/Hr
11	Electricity demand	AC380V 50Hz 3PH			Total power≈350KW			Running Power≈150KW
12	Compressed air	The maximum pressure 9kg/cm2			Common pressure4-8kg/cm2			use1m3/min
13	Space	≈Lmin60m*Wmin10m*Hmin5m(The actual drawing to provider to provide audited prevail)

Customer owned section：

1. Steam heating system：proposal with 4000Kg / Hr of a steam boiler. Pressure:1.25Mpa steam pipeline. 2. Air compressed machine、air pipeline、glue conveying pipe. 3. Power supply、wires connected to the operation panel and line pipe. 4. Water sources、water pipelines、buckets and so on. 5. Water, electricity, gas flush mounting civil foundation. 6. Test with the base paper、corn starch (potato)、Industrial use caustic soda、borax and other material. 7. Oil equipment、lubricating oil、hydraulic oil、lubricating grease. 8. installation、commissioning of food, accommodation. And provide installers with the installation.

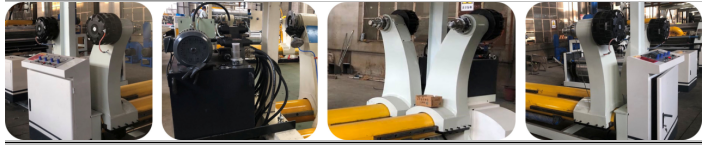

RSH-V5 Hydraulic Mill Roll Stand

1.Machine Description:

*This machine is used for supporting the paper roll, supply the paper to the production line.

2.Machine Function:

*Each arm setup four directions button, it is easy to operate

*It can be loading two paper rolls at the same time, without stopping the machine for changing paper roll

*The whole machine use hydraulic controlled, hydraulic control arm lift and down, clamping and open,  left and right moving

*Tension control: multi point pneumatic brakes,brakes good performance, loses heat fast

*The chuck adopt inner expansion type or teeth type, reduce the destruction of the paper core. saving paper

3.Main Components：

Kraft Paper Feeding Trolley & Track

1.Machine Instruction:

*Two tracks for one mill roll stand to feed the reel paper at both side to reel stand

*With Trolley:under trolley have four contact roller,two pieces railing track

*The whole body of track is under the ground, main frame: Model 14 channel steel with ¢ 20mm drawing bar weld together,overall length 6000mm.

PH-600 Preheater

1.Machine Description:

*This machine is used for heating liner (pre-heating for raw paper), and dry to control temperature and humidity

2.Machine Function:

*Electric to adjust the wrap angle, preheating area can be in 360° range

*Butterfly seal structure on two sides,saving the steam and improving heating efficiency

*Soft siphon style structure,making the drainage more thoroughly

*All the surfaces of rollers have been accurate ground and plating chromed

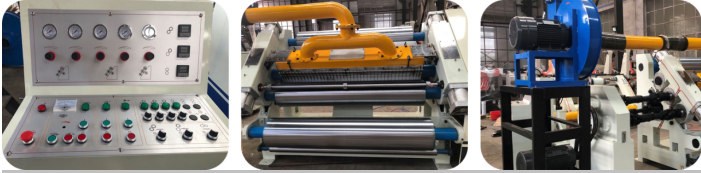

Single Facer

1.Machine Description:

*Single facer is design for producing single-face corrugated paper

2.Machine Function:

*Corrugated Rollers:

Diameter	Φ280mm
Material	48CrMo high quality alloy steel, rigidity HRC55°-58°
Processing Way	After quenching and tempering,The surface of upper-lower roller is ground, then hard chrome plating
Control Way	Airbag control of the Lifting Up-down
Driving Way	Frequency motor
Way of Transmit cardboard	Vacuum absorbable style, Height pressure Draw fan with noise deadening device
Way of Bearing lubricating	High temperature grease
Fulte Type	(U/V) ACBEF(According to customers requirements)

3.Main Components：

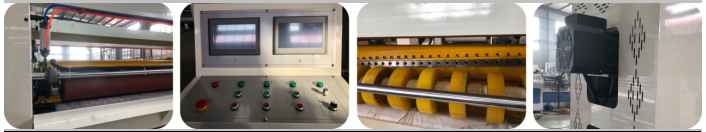

DF-80 Double Facer

1.Machine Description:

*Corrugated paper enter into the double facer hot parts with heating and molding after pasted glue, and  become board after cooling

2.Machine Function:

*Hot Plates width 520mm and 10 pics,cooling parts 4m

*Heat conductive pipe of hot plates control the temperature segmented,with the temperature display

*The inside of the hot plate is partition isolation structure,making the steam flow in S-shaped direction, and the separation function of steam and water is obvious,then improves the steam usage efficiency

*Up belt adopt cylinder S type  tension device,down belt manual  tension device（small amount adjust）

*Drive rollers’ surface is wrapped by rubber with middle height,to make sure the board output smoothly

*Main drive motor: Variable frequency motor, high force when low speed start, high speed adjusting range, steady to use,easy to mend

*The electrical components adopt international famous brands,  working stably and reliable

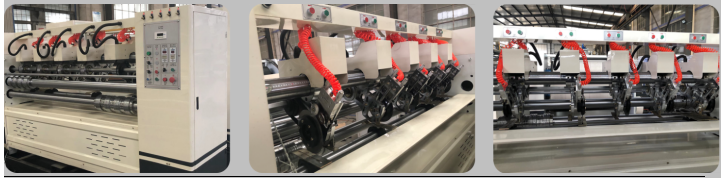

Thin Blade Machine

1.Machine Function:

*Adopt thin tungsten steel alloy blade, with sharp blade and service life of more than 8 million meters

2.Main Components：

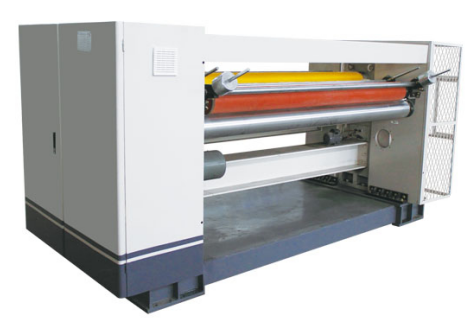

NC Cut Off Machine

1.Machine Function:

*The knife adopts spiral steel helical knife structure, saw-tooth knife type, scissors shearing, keeping small shear force and long service life

*The knife rollers adopt high quality precision forged steel material, having good stability after balanced

*The knife shaft driving gears adopt precision forged steel material,realizes no gap driving after high frequency quenching，and advanced keyless connection method to keep high transmission precision

*The sun wheel pressing method ensure smooth conveying,uniform pressure, and not easy to crush the board or cause blockage

*Servo motor driving,10.4 inch color touch screen display

*This model is storage-energy brake (non-energy brake), low energy consumption in the producing process, saving more than 70%

*Independent oil pump and filter, with two sets of copper tubes distributed in each gear position, to supply, lubricating and cooling the oil

2.Main Components：

Horizontal output

1.Machine Function:

*Horizontal output ，automatic counting. Walk electrically

*Stacking stable、tidy

*Independent sealed control cabinets, electrical equipment operating under clean environment；

*Color touch-screen display for easy on-site operation.

*automatic operation control, improve efficiency and save manpower, reduce labor intensity；
