WJ120-1800 Steam Heating 5ply Corrugated Cardboard Production Line

Corrugator lline is begging process of carton making
It can produce high quality 2layer, 3layer, 5layer corrugated cardboard to make cartons
Availability:
Quantity:
  • WJ120-1800mm

  • xinglong

  • 8441309000

WJ120-1800 5ply  corrugated cardboard production  line

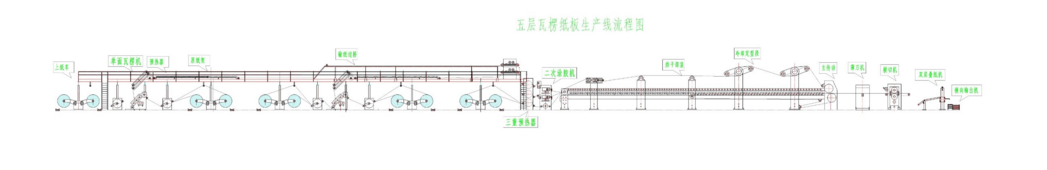

1. Flow chart(drawing)

4370eca1297885117f71fe8c8162e14

2. Configuration list


No Item and description  Qty
1 Hydraulic shaftless mill roll stand
with trolley and rail
5pcs
2 Pre-heater
diameter: 800mm
4pcs
3 Single facer  2pcs
4 Conveyor bridge  1pcs
5 Triple-heater
diameter: 800mm
1pcs
6 Gluing machine 1pcs
7 Double facer
* Hot part (17pcs*520mm hot-plate with dense roller, shoe box is option)
*cool part( 6meters)
* Main drive
*cotton woven belt
1pcs
8 thin blade slitter scorer 1pcs
9 NC cut-off 1pcs
10 Stacker 1pcs
11 steam heating 1pcs
12 Glue kicthen  1pcs
13 Pneumatic system
air compressor, air tank
1pcs

3. Main technology parameter


Model WJ120-1800
Effective width 1800mm
Design speed 120m/min
Working speed 0-100m/min
Steam pressure and consumption Pressure: 1-1.3Mpa   consumption: 2500-3200kg/h
Air pressure and consumption Pressure: 0.8-1.0Mpa   consumption: 1.3m³/min
Total power About 200kw
Total length About 80m(depend on base drawing)
Dimension About 80m×4.3m× 4.5 m (L×W×H)
Equipment flow: according the customers' workshop to installation the machine.


Note: Test basis paper for production line should meet follow requirements;

Basis paper scale ≥B Basis paper moisture: 11%±1%
liner   150-200gsm medium paper  150---200gsm


FAQ
1. How long time to delivery: About 90-100working days after receive deposit


2. How many containers: approx 4-7pcs 40ft container


3. Install and training time: about 30-60days


4. How many technician for install: normal 1 or 2people


5. workshop size: (70-100m)* (8-15m)*(5-6m)  L*W*H
