Packaging Line, Packaging Line,To make cardboard
Manufacturing Plant
Video technical support, Online support, Spare parts, Field maintenance and repair service
None
None
New, New
Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles, Corrugated cardboard
Bags, Cartons, Case, In standard pallet
Paper, Plastic, Pallet
Automatic
Electric, Electric
220/380v
Hebei, China, Hebei China
Xinglong, Xinglong
18*4*3.5m
15-20 ton
CE/ISO9001
1 YEAR
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Easy to Operate
Ordinary Product
Provided
Provided
1.5 years
Gear, Engine
Corrugation machine

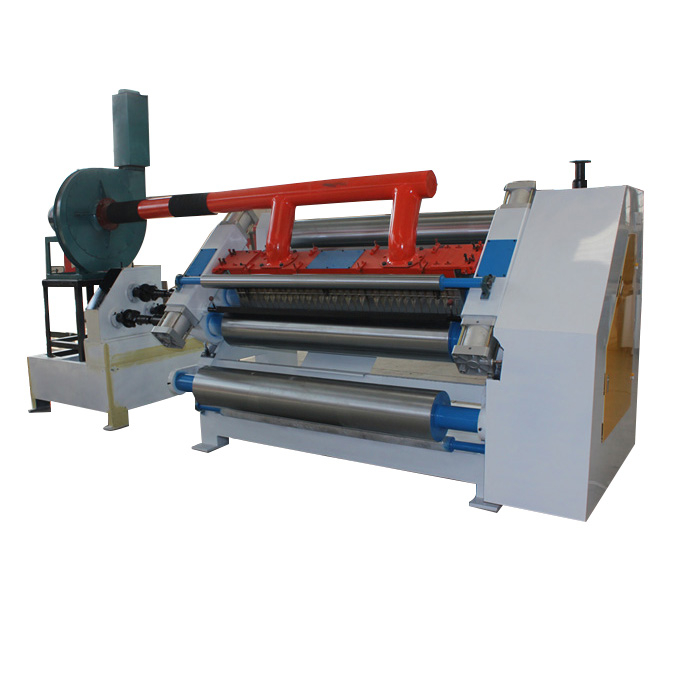

corrugated single facer machine
1, vacuum adsorption,high speed
2, gimbal drive, moving stable
Technology parameters:
Model | SF320-1400 | SF320-1600 | SF320-1800 |
Effective width | 1400mm | 1600mm | 1800mm |
Flute roller diameter | 320mm | 320 | 320 |
Design speed | 100m/min | 100m/min | 100m/min |
Working speed | 80m/min | 80m/min | 80m/min |
Heating type | Steam or electric | ||
Application medium paper | 80gsm-170gsm | ||
Flute type | UV, A, B, C, E, F, D | ||
Power | About 20kw or 60kw | ||
Features:
n Vacuum suction type pulling cardboard with wind control device.
n Glue roller and fixed roller are designed to groups guide way slippage load-unload, convenient and swift.
n Used pneumatic control top flute roller, pressure roller and gluing roller come back movement.
n Flute roller adopts 48CrMo high quality alloy steel, with heat treatment, surface be grinded and chrome plated.
n Adjust gluing width by motorized (manual option)
n Glue amount adjustment by pneumatic( electric option)
n The bearing of flute roller and pressure roller adopt high temperature resistant lubrication grease.
n Vacuum suction type pulling cardboard with wind control device.
n Glue roller and fixed roller are designed to groups guide way slippage load-unload, convenient and swift.
n Independent gear box connect with gimbal to drive machine running more stable. (option:electric heating without gimbal)
corrugated single facer machine
1, vacuum adsorption,high speed
2, gimbal drive, moving stable
Technology parameters:
Model | SF320-1400 | SF320-1600 | SF320-1800 |
Effective width | 1400mm | 1600mm | 1800mm |
Flute roller diameter | 320mm | 320 | 320 |
Design speed | 100m/min | 100m/min | 100m/min |
Working speed | 80m/min | 80m/min | 80m/min |
Heating type | Steam or electric | ||
Application medium paper | 80gsm-170gsm | ||
Flute type | UV, A, B, C, E, F, D | ||
Power | About 20kw or 60kw | ||
Features:
n Vacuum suction type pulling cardboard with wind control device.
n Glue roller and fixed roller are designed to groups guide way slippage load-unload, convenient and swift.
n Used pneumatic control top flute roller, pressure roller and gluing roller come back movement.
n Flute roller adopts 48CrMo high quality alloy steel, with heat treatment, surface be grinded and chrome plated.
n Adjust gluing width by motorized (manual option)
n Glue amount adjustment by pneumatic( electric option)
n The bearing of flute roller and pressure roller adopt high temperature resistant lubrication grease.
n Vacuum suction type pulling cardboard with wind control device.
n Glue roller and fixed roller are designed to groups guide way slippage load-unload, convenient and swift.
n Independent gear box connect with gimbal to drive machine running more stable. (option:electric heating without gimbal)
