Super quality carton box flexo folder gluer for corrugated box machine

Quantity:
  • Gluing Machine
  • Manufacturing Plant
  • Video technical support, Online support
  • None
  • None
  • New
  • Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
  • Cartons, Case
  • Paper, Plastic
  • Automatic
  • Electric
  • 380v 50Hz
  • Hebei, China
  • XINGLONG
  • 4500*2100mm
  • About 2000 kg
  • CE Certificate
  • 1 YEAR
  • Online support
  • Long Service Life
  • Super quality carton box flexo folder gluer for corrugated box machine
  • 2460mm
  • 340mm
  • 1515mm
  • 240mm
  • 900mm
  • 4KW folder gluer
  • 4500*2100mm
  • 2000KG
  • 40pcs/min
Product Description



Instruction:

1. ZXJ-Q II fully automatic folder glue consist of feeder, glue and fold part, rectify and stacking part.

2. PLC adjust speed, remote adjust speed, computer with touch screen adjust width(optional,Conventional models without), easy fast and stable.

3. Automatic feeding, gluing, folding, counting, stacking and output.

4. Double frequency convertor operation.

5. Average speed 120m/min, max speed 160m/min.

6. Memory function can storage many orders


Function and character:

1. It is suitable for a wide range of cartons, adjust size fast and easy.

2. Machine work stable, package beautiful and firm.

3. Easy operation and maintenance

4. Pre-crease wheel make the line good after printing, rectify carton automatically, rectify scissors, fishtail problem.

5. Stack part has rectify deviation device to prevent scissors efficient.

Product model parameters :(total mass: about 5 tons)

Model

QZD2600

QZD2800

QZD3000

Max.Cardboard

1200*2400mm

1200*2600mm

1200*2800mm

Minirdboard

170*450mm

170*450mm

170*450mm

Installation

2400*1350mm

2800*1550mm

3100*15500mm

PowerRequired

11.5KW

11.5KW

11.5KW

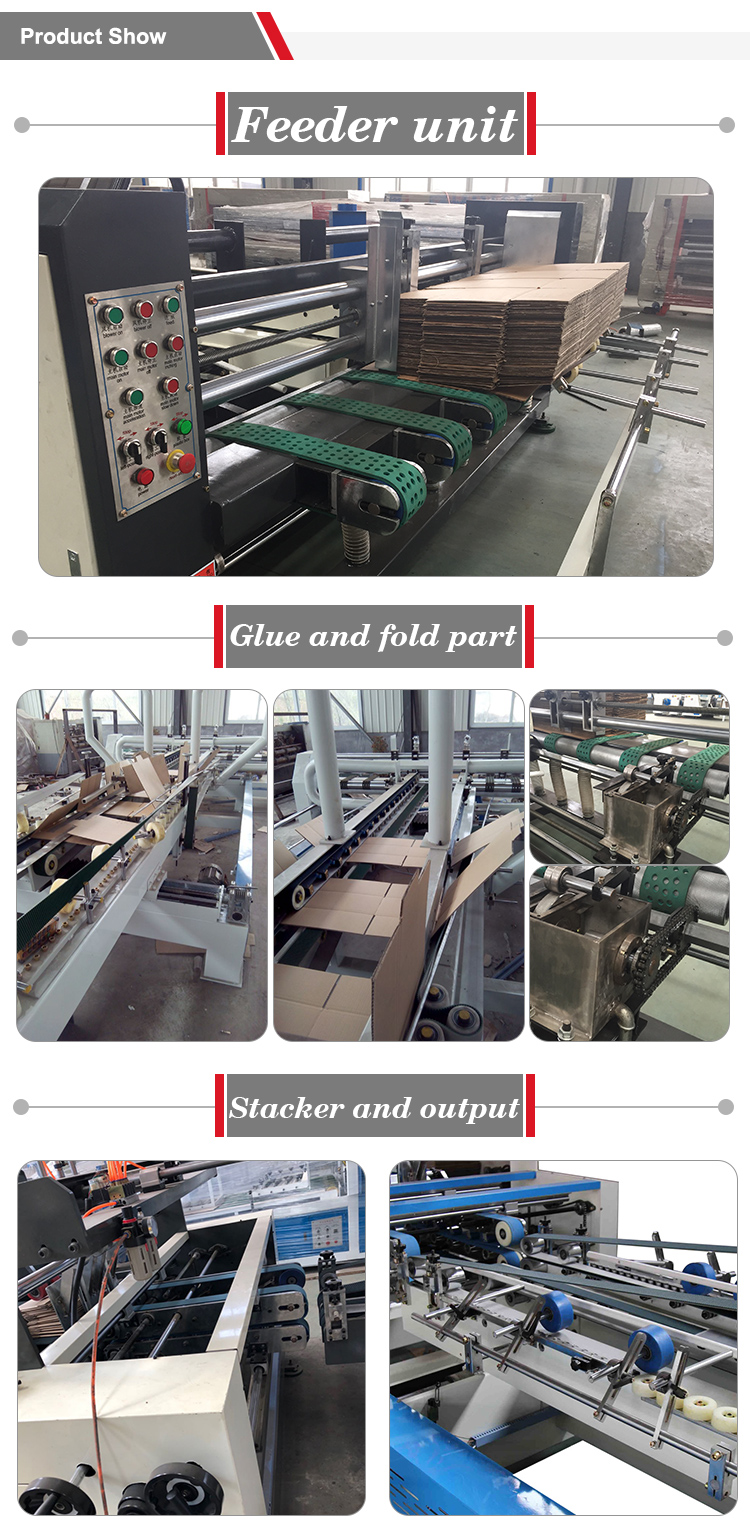

Structure:

1. Control box

Full machine PLC control, touch screen enter data, it can change data and speed non stop machine.


2. Feeder

1. Sheet height adjust device made of high quality steel, adjust box height and sheet length fast.

2. Belt of feeder made of high-tech material, strength layer connect ring belt no seamless. No problem when running machine.

3. Taiwan brand suction motor and main drive motor, high quality and stability.

4. High grade electromagnetic clutch and brake system, feed sheets one by one or continually, reduce waste when adjust box size.


3. Glue and fold part

1. GPG motor from Taiwan, stability, fast adjust speed, no noise

2. Imported special material no seamless ring belt, high friction and wearable, fold cardboard accurately and no mistake.

3. Gluing part made of high quality stainless steel, gluing even and efficient, save glue.

4. Double crease rectify device, rectify crease deviation accurately, fold carton most precision.

4. Stacker and output

1. Auto counter, stack and flap, output, set box output quantity as clients requirement, automatic rectify scissor box.

Spare parts

1. PLC and computer components, frequency, low-voltage electric components imported brand.

2. LK bearing

3. Spiral screw, screw rod, nut made of #45 steel, quenching treatment.

Main electric parts list

NO

Name

Qty

Brand

1

Touch screen

2

Delta

2

PLC

1

Delta

3

VFD

2

Delta

4

Intermediate relay

3

Omron

5

Photoelectric switch

4

HuGong

6

Power swtich

9

Mingwei

7

Thermal overload relay

3

Chint

8

Circuit breaker

2

Chint

9

Travel switch

4

Omron

10

Contactor

3

Siemens

11

Button

11

Schneider

Application

Related Products

Company Information
FAQ

Q:1.Are you a manufacturer, trading company or a third party?

A:We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.


Q:2. What is your minimum order quantity, can you send me samples?

A:Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.


Q:3. How does your factory do regarding quality controlling?

A:(1) All raw material we used are environmental-friendly.

   (2) Skillful workers care every details in handling the producing and packing process.

   (3) Quality control department are specially responsible for quality in each process.


We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.


Q:4.What is the delivery time of your machine?

A:In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.


Q:5.How about the after-sale service?

A:(1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.

   (2) To solve the problems with videos/pictures.

   (3) One year warranty for spare parts change.


If you meet any other questions, please feel free to contact us.
