Single facer group = electric roll stand+single facer+sheet cutter stacker

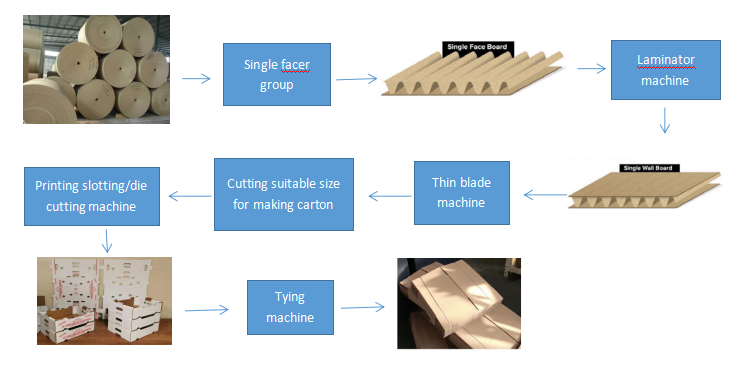

layout

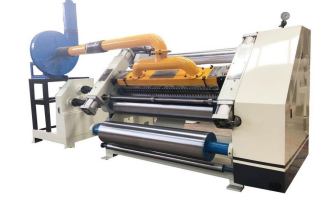

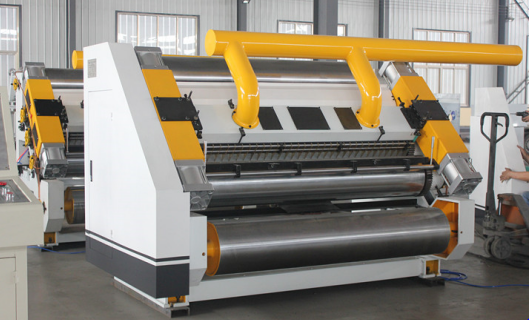

SF280-1600 single facer machine
INSTRUCTON AND FEATURES
Paper feeding way is vacuum suction way and perfect flute formation in high speed production.
Available width:1400/1600/1800/2000/2200 mm.
Flute type: A, B, C, D, E, F,G UV.
Corrugated roller:φ280/300/320/360/380mm.
Drive using chain drive.
The glue coating part adopt automatic circulating glue feeding way (manual or electrical isolation device).
Pneumatic control to adjust the glue feeding and adjust gluing capacity electrically or manually; the glue parts running separately while the main motor stopped, prevent paste from drying up.
It is equipped with the high pressure powerful air fan with the wind capacity adjustable device and silencer; air source and electric control are in one cabinet.
The machine wall made by cast iron and thickness 130mm.
The corrugated roller materials 50CrMo alloy, the inner hole is fine bored, tempered and finish turned and the surface is medium-frequency quenched, CNC polished and fine grinded and hard chrome-plated.
The corrugated roller diameter ¢280mm; Hardness can reach more than HRC60 which ensures good wear-resistance and long life service.
TECHNOLOGY PARAMETERS
Model | SF280-1600 |
Working width | 1600mm |
Heating way | Electric |
Flute type | A B C D E F |
Operate direction | Left or right according to customer's factory |
Design speed | 60m/min |
Economic running speed | 30-40m/min |
Temperature range | 160-200℃ |
Air source | 0.4-0.8Mpa |

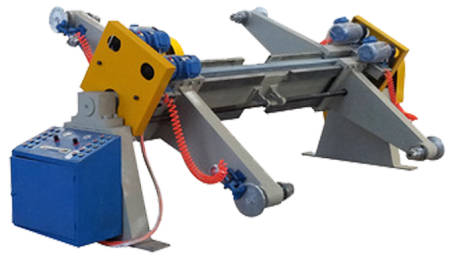

Electric shaftless mill roll stand
INSTRUCTION AND FEATURES
Electric drive,smooth when running,fast change paper roll,easy adjustment
Symmetrical structure can install two rolls of paper at the same time and continually change paper roll;
It adopts motorized control clamping, loosen, up-down, movement, contraposition, translation .
Equipment was made of HT200-wide casting
It adopts pneumatic braking.
Electrical components are controlled centralized(domestic brand).
TECHNOLOGY PARAMETERS
Max working width (mm) | 1600 |
Min working width (mm) | 600 |
Max paper roll diameter (mm) | 1500 |
Single Side carriage | 1500kg |
Air pressure | 0.6-0.9Mpa |
Power | 4.5kw |

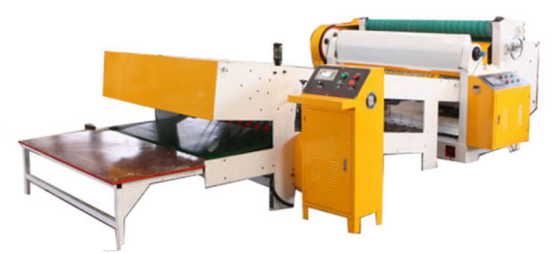

NC Reel sheet cutter with stacker
INSTRUCTION AND FEATURES
Single knife sheet cutter can do set-length cutting reel paper and single facer board, change order fast, high cutting precision, fast work speed, low waste, it also suit for color-printing box package.
Adopts adjustable-speed motor reduce the fault caused by transmission wearing.
Teeth surface be quenching and grinding, high precision transmission, low noise, transmission part lubrication adopts oil pump automatic recycle design.
Used high speed flat type knife, high hardness with long use life. Precision adjustable gapless gear ensure accurate mesh, good cutting with high straightness, protect knife.
TECHNOLOGY PARAMETERS
Design speed | 80m/min |
Working speed | 0-60m |
Cutting length | 300-9999mm |
Cutting precision | ±1.5mm |
Effect width | 1600mm |
Cutting layer | single layer、double layer |
Automatic stacker
1. The Max. Speed of coloection paper:70m/min
2.The Max. Length of collection paper :1600mm
3.This machine can be collected at the same time at most 4 pieces of paper
4.The machine can realize count automatically, automatic stacking, automatic stamping
5.Stacker hight:100mm
6.The machine have special leading edge Aligning institution
7.The automatic stacking machine cost is low,Small footprint, save manpower,Is the best choice of medium-speed fitting machine.
8.floor area:3.8*1.9m
Single facer group = electric roll stand+single facer+sheet cutter stacker
layout
SF280-1600 single facer machine
INSTRUCTON AND FEATURES
Paper feeding way is vacuum suction way and perfect flute formation in high speed production.
Available width:1400/1600/1800/2000/2200 mm.
Flute type: A, B, C, D, E, F,G UV.
Corrugated roller:φ280/300/320/360/380mm.
Drive using chain drive.
The glue coating part adopt automatic circulating glue feeding way (manual or electrical isolation device).
Pneumatic control to adjust the glue feeding and adjust gluing capacity electrically or manually; the glue parts running separately while the main motor stopped, prevent paste from drying up.
It is equipped with the high pressure powerful air fan with the wind capacity adjustable device and silencer; air source and electric control are in one cabinet.
The machine wall made by cast iron and thickness 130mm.
The corrugated roller materials 50CrMo alloy, the inner hole is fine bored, tempered and finish turned and the surface is medium-frequency quenched, CNC polished and fine grinded and hard chrome-plated.
The corrugated roller diameter ¢280mm; Hardness can reach more than HRC60 which ensures good wear-resistance and long life service.
TECHNOLOGY PARAMETERS
Model | SF280-1600 |
Working width | 1600mm |
Heating way | Electric |
Flute type | A B C D E F |
Operate direction | Left or right according to customer's factory |
Design speed | 60m/min |
Economic running speed | 30-40m/min |
Temperature range | 160-200℃ |
Air source | 0.4-0.8Mpa |
Electric shaftless mill roll stand
INSTRUCTION AND FEATURES
Electric drive,smooth when running,fast change paper roll,easy adjustment
Symmetrical structure can install two rolls of paper at the same time and continually change paper roll;
It adopts motorized control clamping, loosen, up-down, movement, contraposition, translation .
Equipment was made of HT200-wide casting
It adopts pneumatic braking.
Electrical components are controlled centralized(domestic brand).
TECHNOLOGY PARAMETERS
Max working width (mm) | 1600 |
Min working width (mm) | 600 |
Max paper roll diameter (mm) | 1500 |
Single Side carriage | 1500kg |
Air pressure | 0.6-0.9Mpa |
Power | 4.5kw |
NC Reel sheet cutter with stacker
INSTRUCTION AND FEATURES
Single knife sheet cutter can do set-length cutting reel paper and single facer board, change order fast, high cutting precision, fast work speed, low waste, it also suit for color-printing box package.
Adopts adjustable-speed motor reduce the fault caused by transmission wearing.
Teeth surface be quenching and grinding, high precision transmission, low noise, transmission part lubrication adopts oil pump automatic recycle design.
Used high speed flat type knife, high hardness with long use life. Precision adjustable gapless gear ensure accurate mesh, good cutting with high straightness, protect knife.
TECHNOLOGY PARAMETERS
Design speed | 80m/min |
Working speed | 0-60m |
Cutting length | 300-9999mm |
Cutting precision | ±1.5mm |
Effect width | 1600mm |
Cutting layer | single layer、double layer |
Automatic stacker
1. The Max. Speed of coloection paper:70m/min
2.The Max. Length of collection paper :1600mm
3.This machine can be collected at the same time at most 4 pieces of paper
4.The machine can realize count automatically, automatic stacking, automatic stamping
5.Stacker hight:100mm
6.The machine have special leading edge Aligning institution
7.The automatic stacking machine cost is low,Small footprint, save manpower,Is the best choice of medium-speed fitting machine.
8.floor area:3.8*1.9m
