DXJ-semi automatic 2500mm
xinglong
New
Hebei,China
xinglong
Electric
Semi-Automatic
1 Year
Provided
Ordinary Product
Video technical suppprt
1 Year

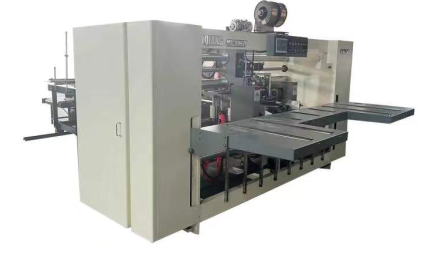

DXJ-SEMI AUTO two-piece four-servo stitching machine
Introduction of main parts and functions:
★ Japan Mitsubishi four-servo drive, accurate precision, reduced mechanical transmission parts, which can effectively reduce the failure rate of machinery.
★ The entire control system adopts Omron PLC control system.
★ All contactors in the control box adopt the French Schneider brand.
★ The relay and circuit breaker adopt the French Schneider brand, and the photoelectric and proximity switches adopt the Japanese Omron brand.
★ The bottom mold and blade are made of Japanese alloy tungsten steel (wear-resistant).
★ The entire set of nail heads are made of Taiwan original parts, and the service life of the head is longer.
★ It only takes one minute to change the carton size and adjust the nail distance of the carton, which greatly saves time and is easy to perate.
★ There is an automatic counting function in the back section, and the number of finished products can be divided and sent to the end of the conveying machine according to the set number (1-99), which is convenient for packing and binding.
★ The front paper feeding section automatically counts, and the paper feeding table is equipped with a photoelectric sensor, which automatically rises when feeding paper.
★ Paper feeding height: 900mm.
★ Mechanical speed: 600 nails/min.
★ One set of dual purpose, can nail single-chip nailed cartons, double-chip nailed cartons, and irregular cartons.
★ Reinforced nails, single nails, double rows of nails can be nailed, all at once.
★ The paper feeding department automatically counts, and the finished product is sent out for binding.
★ Suitable for small and medium-sized cartons, fast and labor saving.
★ Adjust the nail distance, use the computer to set the nail distance automatically, and the nail distance can be adjusted at will from 30-150mm;
★ Automatic wire feeding system, 20KG large flat wire, saving time.
★ Features of this machine: three-layer, five-layer, and seven-layer carton thickness adjustment is fully computer controlled, fast and accurate.
★ This machine adopts four servo motors (namely two head motors and two feeding motors).
★ Isolation and voltage-stabilizing transformer protection device of the whole electrical appliance can better protect the service life of the whole computer electrical appliances.
★ The latest machine adopts a full computer to automatically adjust all sizes, and automatically adjusts the size of different models in one minute, fast and accurate, and can store 1,000 orders.
★ Binding method: double oblique nail or single oblique nail/reinforced nail.
Technical Parameter
Model and parameters | 1600 | 2000 | 2500 |
Maximum paper size (A+B) * 2 (mm) | 3200 | 4000 | 5000 |
Minimum paper size (A+B) * 2 (mm) | 980 | 980 | 980 |
Maximum carton length A mm | 1480 | 1880 | 2380 |
Minimum carton length A mm | 370 | 370 | 370 |
Maximum carton width B mm | 800 | 1000 | 1250 |
Minimum carton width B mm | 100 | 100 | 100 |
Maximum paper height (C+D+C) (mm) | 2900 | 2900 | 2900 |
Minimum paper height (C+D+C) (mm) | 400 | 400 | 400 |
Maximum flap size C (mm) | 450(Standard） 600(Optional） | 450(Standard） 600(Optional） | 450(Standard） 600(Optional） |
Minimum flap size C (mm) | 80(Standard） 20(Optional） | 80(Standard） 20(Optional） | 80(Standard） 20(Optional） |
Maximum height D (mm) | 2000 | 2000 | 2000 |
Minimum height D (mm) | 200 | 200 | 200 |
Max tongue width (mm) | 40 | 40 | 40 |
Nail distance mm | 30-150 | 30-150 | 30-150 |
Nail number | 2-99 | 2-99 | 2-99 |
Nail speed (times/mim) | 600 | 600 | 600 |
Machine weight (T) | 3.0 | 3.2 | 3.5 |
