Semi-automatic folder gluer machine corrugated carton box making machine press pasting box machine

Share to:

Semi-automatic folder gluer machine corrugated carton box making machine press pasting box machine

Availability:

Quantity:


Inquire Add to Basket

Type: Gluing Machine
Applicable Industries: Manufacturing Plant, packaging
Condition: New
Application: Machinery & Hardware, packaging
Packaging Type: Cartons
Packaging Material: Paper
Automatic Grade: Semi-Automatic
Driven Type: Electric
Voltage: 380v
Place of Origin: China,HeBei
Brand Name: XINGLONG
Dimension(L*W*H): 4000*2000*1900mm
Weight: 2T
Certification: CE,ISO9001:2008
Warranty: 1 YEAR
After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Key Selling Points: Long Service Life
Model: ZXJ-2600
Max size of cardboard: 2400*1200mm
Min size of cardboard: 600*300mm
Paper feeding height: 900mm
Motor power: 4kw
Machine speed: 40-60piece/min
Mechanical weight: 1800kg
The length of Machine: 4500mm
The Width of Machine: 2100mm

Product Description

Product Description

Function and Characteristics:

Folder gluer is the last process equipment of carton making, it is used to produce 3 and 5-layer corrugated cartons (for 7ply cartons is customized). Machine with high efficiency, glue consumption is low, product cost is 10times less than stitching. Produce carton beautiful and stable. Easy operation, save power and labor, running smoothly. It is a idea machine to make cartons.

PARAMETER
Max size( length+ width)	2460mm
Max size（width+ height）	1500mm
Min size( length+ width)	340mm
Min size( width+ height)	240mm
Motor power	4KW
The length of Machine	4500mm
The Width of Machine	2100mm
The weight of Machine	1200kg
Machine speed	40 piece/min
Dimension(mm) length×width×height	4000×2000×1900mm

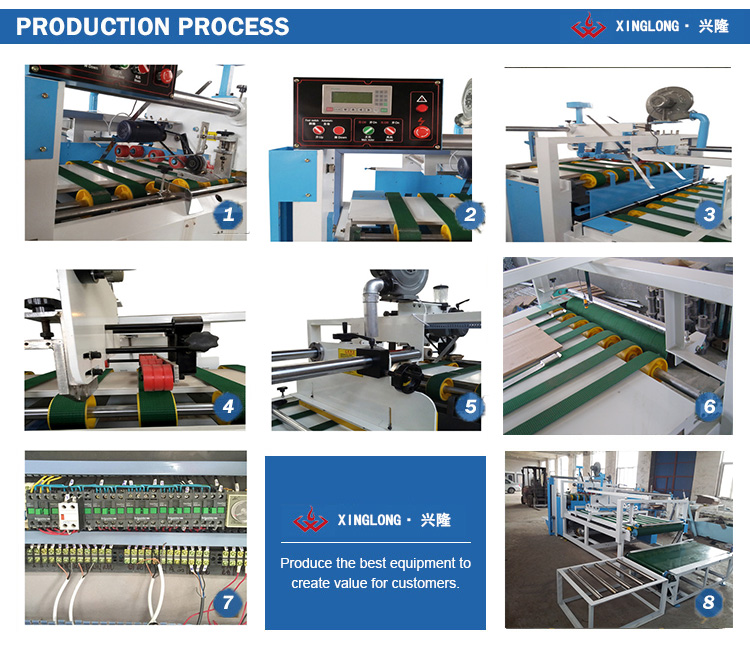

Structure of machine

1.Feed table ●Photoelectric control the height of table, reduce labor and improve work efficiency.

2. Press correction ●After gluing go into press part, adhesion smooth and firm. ●Equipped automatic correction device to enure the carton size is correctly, and effectively avoid knife and fork problem. ●Equipped Fan to dry the glue fast. ●Automatic counter with sensor, when reaching to the set height, send out cartons automatically.

3. Horizontal Output ●Convey out product carton automatically, easy for bundling.

Related Products

After Sales Service

●We can send engineers to users factory install machine and traininng.

● we will provide layout, elecric drawing and related documents

● warranty: 1year

FAQ

1. Q: What is your delivery term? A: FOB,CIF,CFR usually. 2.Q: What is your payment? A: T/T.30% deposit, 70% balance before delivery. L/C. 100% at sight. T/T and L/C, 30% TT deposit, 70% L/C.3.Q: What is your delivery time? A: Die cutting machine, 30-40 days usually. If urgent, 15 days only. Paper cutting machine, 20-30 days usually. If urgent, 15 days only. 4.Q: What is your warranty and other terms? A: One year warranty. Spare parts are free for customer in 1 year, but customer have to pay delivery. We can send our engineer to customer factory for 7 days free installing and trainning, customer have to pay tickets, visa, meals and hotel. If need more training, $100.00 per day to our engineer.
