Semi-automatic double jointed stitching machine carton box cardboard stitcher machine nail packing machine

Share to:

Semi-automatic double jointed stitching machine carton box cardboard stitcher machine nail packing machine

Availability:

Quantity:



Inquire Add to Basket

Type:
Other
Warranty:
1.5 years
Applicable Industries:
Manufacturing Plant, Retail, Printing Shops, packaging
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles, carton
Packaging Type:
Cartons, Film
Packaging Material:
Paper, Wood
Automatic Grade:
Semi-Automatic
Driven Type:
Electric
Voltage:
220V/380V
Power:
13kw
Place of Origin:
Hebei, China
Brand Name:
Xinglong
Weight:
4000KG
Dimension(L*W*H):
6000mm*3550mm*4000mm
Certification:
CE/ISO9001
After-sales Service Provided:
Field maintenance and repair service, Engineers available to service machinery overseas
Key Selling Points:
Long Service Life
name:
Carrugated carton box making machine
speed:
500staples/min
type:
semi auto
Main Function:
stitching
Color:
Requirement
Feature:
Conveniently Operation

Product Description

Product Description

This machine can nail a lid box &carton no cover, and can nail a monolithic ground nail carton ,twin sheet nail carton.The adjusting nail spacing, the use of computer set up automatic adjusting nail spacing,nail spacing 30-120mm adjustable. And can nail single nail,double row nail, strengthen nail .The rear section with automatic counting function, finished cartons can be set according to the number (1-99)sub stack sent to the conveying machinery terminal,convenient bundling.

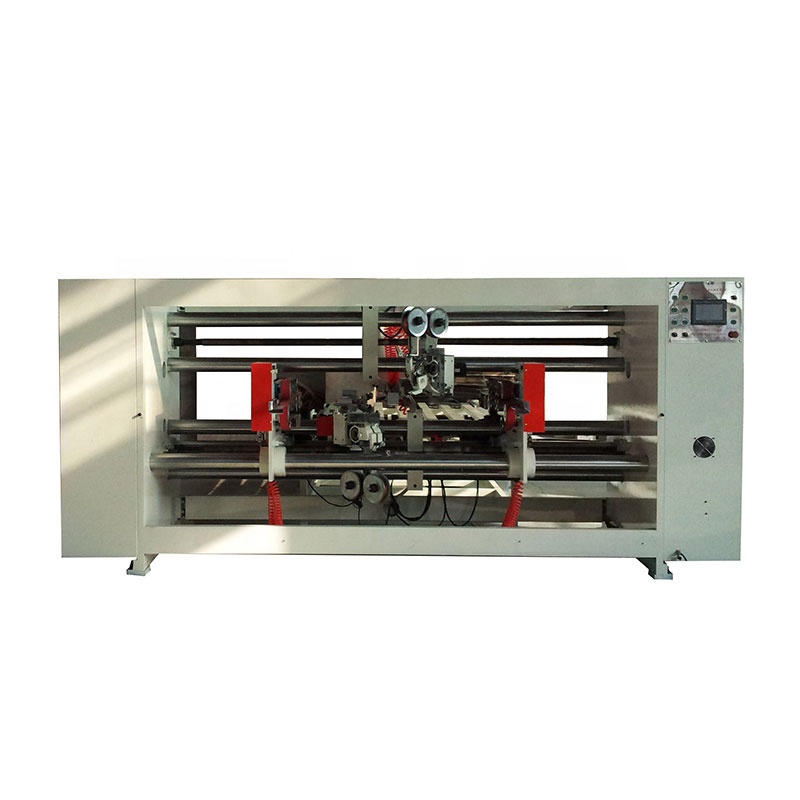

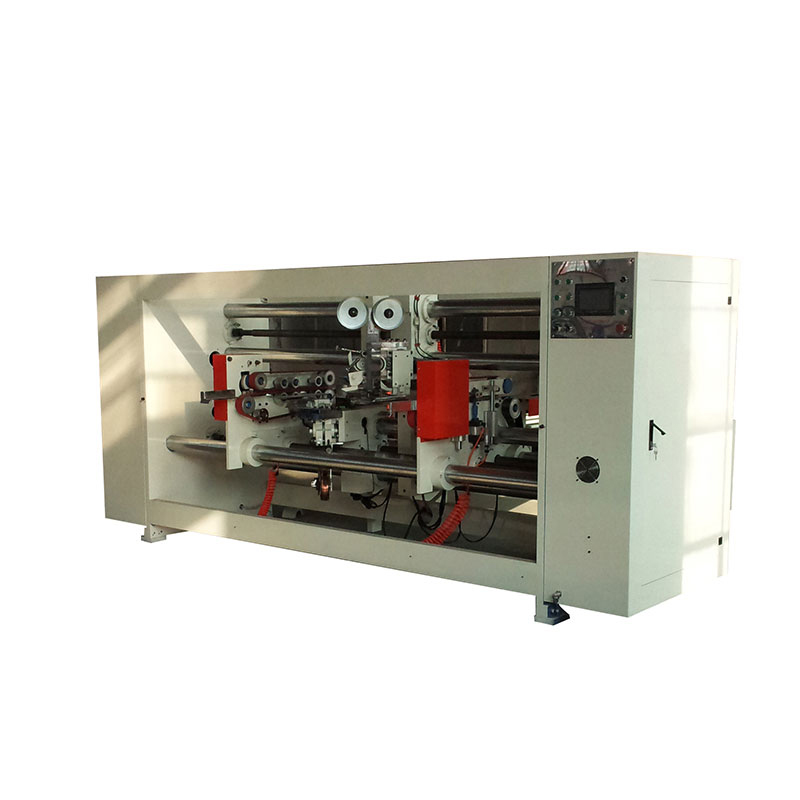

Semi-automatic double jointed stitching machine
Model	XLD-2400mm	XLD-2700mm	XLD-3000MM
Max. sheet size(A+B)*2(mm)	4600	5200	5800
Min. sheet size(A+B)*2(mm)	1060	1060	1060
Max.sheet size length(mm)	2250	2550	2850
Min.sheet length(mm)	350	350	350
Max.sheet width(mm)	1200	1350	1500
Min.sheet width（mm）	180	180	180
Min.sheet height(C+D+C) (mm)	400	400	400
Stitching pitch(mm)	30-120	30-120	30-120
No.of stitching	1-99	1-99	1-99
Machine speed(stitch/min)	500	500	500
Power Required(HP)	18	18	18
Machine Length(mm)	6000	6000	6000
Machine width(mm)	3550	3850	4150
Machine Weight(kg)	4000	4100	4200
Max.stopper Measurement	600mm(C)
Max.TS width	45mm(E)
Min.Frist stitch Pitch	25mm(D) Uncover

★This machine can stitch single, double, and Irregular carton.★Adopted electric controlling to adjust size.★Single/, double// and strengthen nail // / / // are available, be finished one time, it can meet different requirements of different clients.★Automatic counter ejector.★Suit for large carton, speed stitchign and easy.

★Set the program in computer to adjust stitching pitch automatically.★Adopt electric control to adjust size, fault instruction will appear in the LCD.★Our product can be generally applied to the three-layer or five-layer cardboard boxes as well as the uncovered ones with bottom. As for the seven-layer boxes, the equipment needs to be customized.★Stitching pitch(samll-big)30mm-120mm can be arbitrary regulation.★Machine speed: 500stitches/minute.

FAQ

1. Q: Are you a manufacturer, trading company or a third party?A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.2. Q: How does your factory do regarding quality controlling?A: 1) All raw material we used are environmental-friendly2) Skillful workers care every details in handling the producing and packing process3) Quality control department are specially responsible for quality in each processWe have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.3. Q: What is the payment terms?A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.4. Q: How about the after-sale service?A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.2) To solve the problems with videos/pictures.3) One year warranty for spare parts change.
