BY1426
XINGLONG

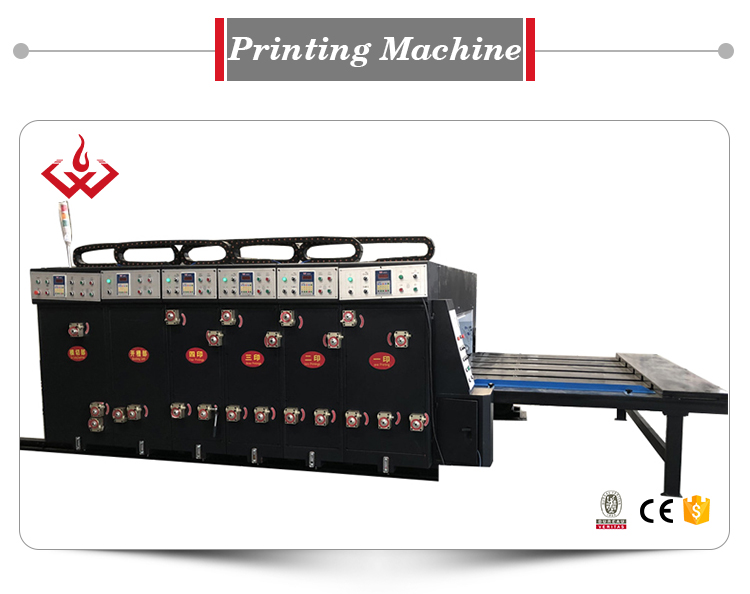

Flexo printing slotting die-cutting machine with stacker
Main Technology Parameters
Model | BY1022 | BY1224 | BY1426 |
Roller diameter（mm） | Φ340 | Φ405 | Φ480 |
Max sheet size（mm） | 1000*2000 | 1200*2200 | 1400*2400 |
Max printing size（mm） | 1000*1800 | 1200*2000 | 1400*2200 |
Min sheet size（mm） | 350×500 | 350*500 | 350*500 |
Max die cutting space（mm） | 1000*1750 | 1200*1950 | 1400*2150 |
Working speed (pcs/min) | 0-60 | 0-60 | 0-60 |
Printing precision（mm） | ±0.5 | ±0.5 | ±0.5 |
Standard plate thickness（mm） | 6 | 6 | 6 |
Sheet thickness（mm） | 1.2-9mm | 1.2-9mm | 1.2-9mm |
Main Power（kw） | 15kw | 15kw | 15kw |
Wall thickness （mm） | 40 | 40 | 40 |
FAQ:
Q:1.Are you a manufacturer, trading company or a third party?
A:We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.
Q:2. What is your minimum order quantity, can you send me samples?
A:Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
Q:3. How does your factory do regarding quality controlling?
A:(1) All raw material we used are environmental-friendly.
(2) Skillful workers care every details in handling the producing and packing process.
(3) Quality control department are specially responsible for quality in each process.
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
Q:4.What is the delivery time of your machine?
A:In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.
Q:5.How about the after-sale service?
A:(1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
(2) To solve the problems with videos/pictures.
(3) One year warranty for spare parts change.
If you meet any other questions, please feel free to contact us.
Main Technology Parameters
Model | BY1022 | BY1224 | BY1426 |
Roller diameter（mm） | Φ340 | Φ405 | Φ480 |
Max sheet size（mm） | 1000*2000 | 1200*2200 | 1400*2400 |
Max printing size（mm） | 1000*1800 | 1200*2000 | 1400*2200 |
Min sheet size（mm） | 350×500 | 350*500 | 350*500 |
Max die cutting space（mm） | 1000*1750 | 1200*1950 | 1400*2150 |
Working speed (pcs/min) | 0-60 | 0-60 | 0-60 |
Printing precision（mm） | ±0.5 | ±0.5 | ±0.5 |
Standard plate thickness（mm） | 6 | 6 | 6 |
Sheet thickness（mm） | 1.2-9mm | 1.2-9mm | 1.2-9mm |
Main Power（kw） | 15kw | 15kw | 15kw |
Wall thickness （mm） | 40 | 40 | 40 |
FAQ:
Q:1.Are you a manufacturer, trading company or a third party?
A:We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.
Q:2. What is your minimum order quantity, can you send me samples?
A:Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
Q:3. How does your factory do regarding quality controlling?
A:(1) All raw material we used are environmental-friendly.
(2) Skillful workers care every details in handling the producing and packing process.
(3) Quality control department are specially responsible for quality in each process.
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
Q:4.What is the delivery time of your machine?
A:In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.
Q:5.How about the after-sale service?
A:(1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
(2) To solve the problems with videos/pictures.
(3) One year warranty for spare parts change.
If you meet any other questions, please feel free to contact us.
