BDJ-2000
xinglong
Ordinary Product
2000KG
Easy to Operate
China
Other
New
Cartons
Paper
Engineers available to service machinery overseas
Electric

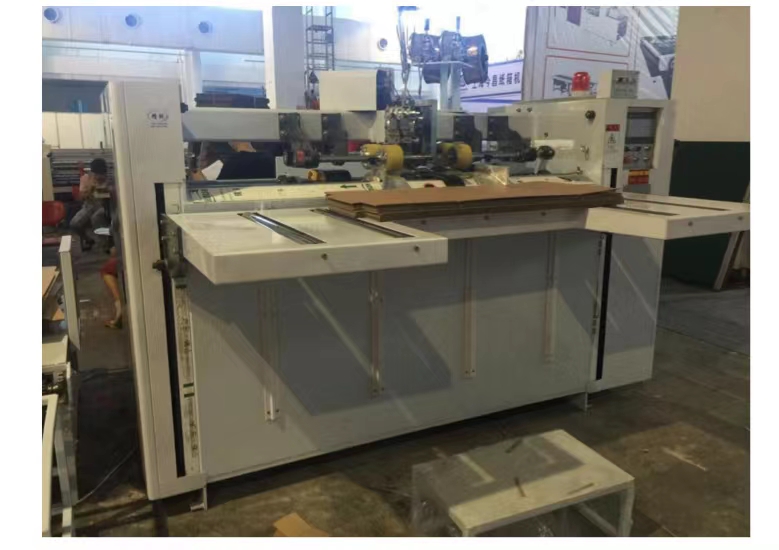

Semi Automatic stitching machine
The main parts and function
9:28 imported from Japan fujiseries double servo drive, precision, reduce the mechanical transmission part, effectively reduce the mechanical fault rate.
delta touch screen operation, the parameters (screw pitch, the number of nails, nail, tailgate) transform is convenient.
the whole control system adopts the control system of delta PLC, more accurately convey instructions.
after electric baffle, by Taiwan Liming stepper motor drive, accurate size, transform size more convenient.
the bottom die, tungsten steel blade adopts Japanese made (wear) has greatly increased the service life.
The whole group of nail head. All computer gongs are made of special steel, precision machining, imported from Taiwan, Italy.
You can nail a single nail, double nail, once completed, can be suitable for different customers for different requirements for the nail.
This transformation and adjustment of carton carton size from the nail it takes only a minute to be completed, greatly saves time and is convenient to operate.
the front feeding part automatically counting, the feeding table is provided with a photoelectric sensing device, automatic rising feeder.
This post with automatic counting function, finished cartons can be set according to the number (1-99) sub stack sent to lose
Send machine end, easy to pack up and bound.
Nail automatic alarm after line. (to avoid the non linear when the leak to fight, less nail bad product)
from semi-finished stapled to the finished and packaged Banding placed in the whole process of only two people operation, the operation is simple and convenient for less pay.
Mechanical parameters:

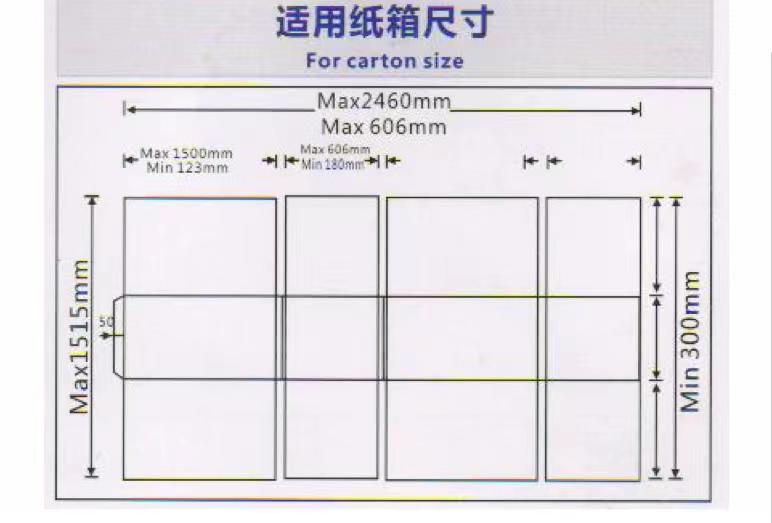

Model | BDJ-2000 | Max sheet size | 1515×2460mm |
Speed | 600 Nail/min | Min sheet size | 300×606mm |
Nail Span | 30-100mm(Arbitrary adjustments) | Power | 6HP |
Number of nail | 1-99 | Feeding height | 900mm |
Nail type | Single, double and reinforced nail | Machine size | 2800mm(lenth) 2600mm(width) |
nail line specification | 2.0mm×(0.65-0.75mm) | Weight | 2000KGS |
