Semi - auto chain feeding rotary slotting machine for carton box

Share to:

Semi - auto chain feeding rotary slotting machine for carton box

Quantity:



Inquire Add to Basket

Type:
Packaging Line
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Farms
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Medical, Textiles, Machinery & Hardware
Packaging Type:
Film, Case
Packaging Material:
Plastic, Wood
Automatic Grade:
Semi-Automatic
Driven Type:
Electric
Voltage:
380v 50hz customized
Place of Origin:
Hebei, China
Brand Name:
xinglong
Dimension(L*W*H):
3200*2800*1200mm
Weight:
about 2.5T
Certification:
CE certification
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Key Selling Points:
Easy to Operate
Marketing Type:
Ordinary Product
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 YEAR
Core Components:
Gear, Engine
color:
optional
speed:
60pcs/min
certification:
CE
power:
4.5kw
type:
Semi-auto (chain feeding) rotary slotting machine of good quality
Usage:
Cardboard Cutting
Function:
High Efficiency
Applicable Product:
Size Carton Box
Suitable for:
carton Box

Product Description

Semi-auto (chain feeding) rotary slotting machine of good quality

•FQK series of corrugated slitting creasing corner-cutting slotter is a combination equipment, it can perform slotting, slitting, ceasing one time. Its main characteristics of hand feeding single cardboard, all of cardboard is ok include bend board.

PARAMETER
Model	RS4-B-1222	RS4-B-1224	RS4-B-1226	RS4-B-1422	RS4-B-1424	RS4-B-1426
Cutter die diameter	Φ405mm			Φ480mm
Max sheet size(mm)	1200*2200	1200*2400	1200*2600	1400*2200	1400*2400	1400*2600
Min sheet size(mm)	350*500	350*500	350*500	400*500	400*500	400*500
Min slot distance(mm)	19050190*50			19050190*50
Slot width(mm)	7mm			7mm
Sheet thickness(mm)	2-10mm			2-10mm
Work speed (pcs/min)	0-60			0-60
Power (kw)	3.0			3.0
Wall board thickness(mm)	40			40

Main characteristics:

1.Chain feeding, side gauge positioning to ensure paper feeding accuracy

2.Planetary gear type 360-degree electric phase adjustment, fast and convenient

3.Adopt manual four-tool synchronous adjustment box height, convenient and quick (optional electric adjustment)

4.Automatic spray Lubrication Gear to prolong Gear Life

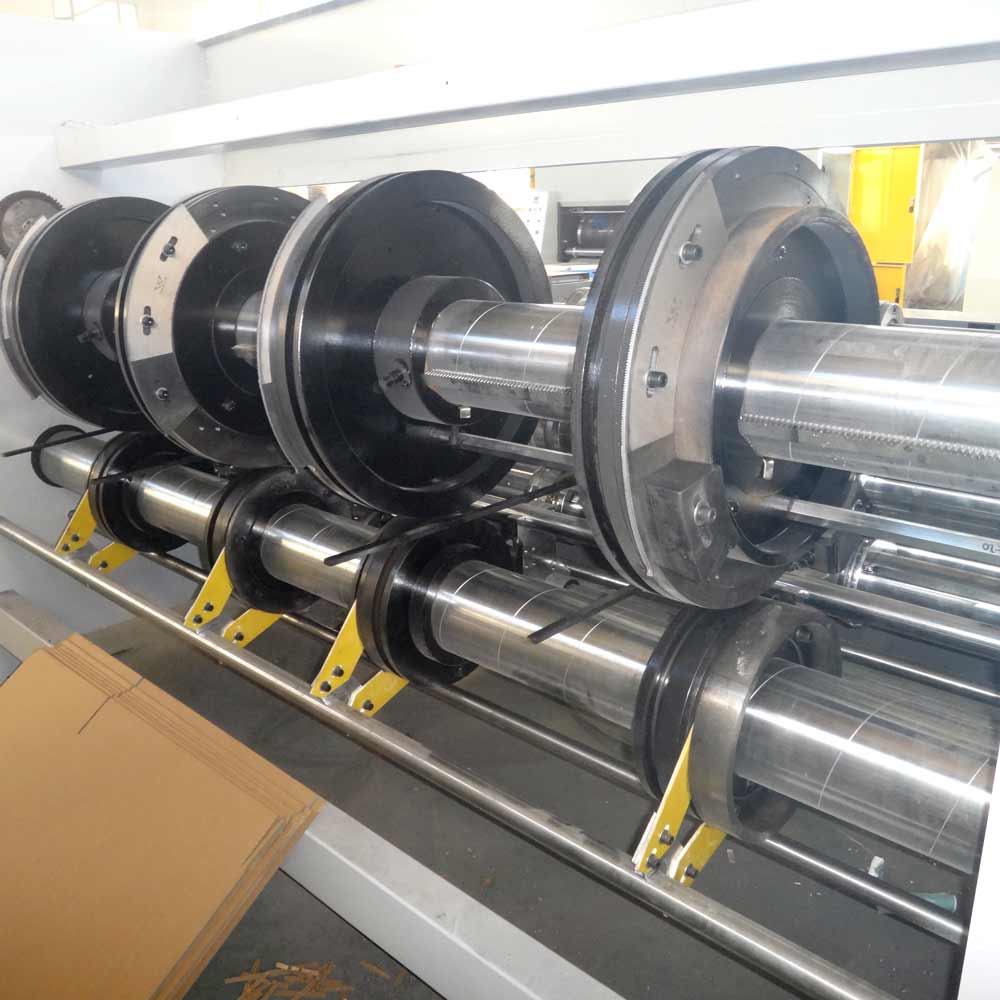

5.The grooved bottom shaft is designed with a cross slider eccentric sleeve, which can be adjusted according to the thickness of the cardboard and the pressure of the upper cutter shaft.

6.All shaft grinding, hard chrome plating

7.The slotting cutter adopts high quality 48CrMoand is quenched at high temperature.

8.The variable-frequency motor drive, the speed is adjustable, and the machine is running smoothly

9.Electronic counter, showing the quantity of production.

10.Slotted line pressing manual synchronous traverse (electric optional)

11.Optional: punch and hole or air hole
