Semi-auto Cardboard Printing Slotting Die Cutting Machine

Quantity:
  • Other
  • Manufacturing Plant, Food & Beverage Factory, Farms, Advertising Company
  • New
  • Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware
  • Cartons
  • Plastic, Wood
  • Semi-Automatic
  • Electric
  • 380V 50HZ
  • 7kw
  • Hebei, China
  • XINGLONG
  • about 12~15tons
  • model machine
  • CE ISO901
  • Engineer available to service machinery overseas, Engineers available to service machinery overseas
  • Semi-auto Cardboard Printing Slotting Die Cutting Machine
  • 1 Year
  • 2800mm
  • 1200*2600mm
  • 1200*2500mm
  • 300*500mm
  • 6mm
  • about 0-60sheets/min
  • 1.2-9mm

Semi-auto Cardboard Printing Slotting Die Cutting Machine

Product Description


*Main configuration:

1. Adopt chain manual feed the paper

2. Automatic return to zero device, can set the production number, finish the order can be warning by the belt.

Steel and knurling roll feed the paper together, avoid the cardboard slip, and improve the precision of feeding paper.

Model: 1200*2800

**Main Technology Parameter:

Machine inside width

2800mm

Max paper coverage area

1200*2600mm

Effective printing area

1200*2500mm

Min paper coverage area

300*500mm

Standard thickness of printing plate

6mm

Working speed

about 0-60sheets

Printing precision

±0.5mm

Thickness of cardboard

1.2-9mm

Main power

7kw


***Function and Characteristics:

1) Feeding Unit

n Semi-automatic chain paper feed,and side check plate positioning to ensure accurate paper feed.

n There are four gear chain bars, and each file has three cross-stack cardboard.

n Abrasion resistance materials as the support of the bottom of chains, fast running, low noise and low chain abrasion resistance.

n Main motor placed under the working table.

n Equipped with block paper steel bar to ensure the easy feeding of the bend cardboard.

n Feeding error±1.5mm.


2) Printing Unit

n Printing roller, paper feeding roller, pressure roller, all the surfaces grinding, hard chromium plating.

n Adopt planet style electrical adjustment of 360 degrees whatever operating and stopping, quickly

and accurately.

n Motorized shift and pneumatic locking up of printing units.

n Inking roller can be detached from printing plate automatically to avoid damage the printing plate.

n Inking roller equipped idling running device to prevent ink from being dried when machine stop.

n Pneumatic lifting and down the anilox roller, auto ink distributing.

n With Pneumatic diaphragm pump to supply ink.

n Main transmission gears are made by 45#steel after high frequency quenching.

n Drive part adopts spray lubricating system, improve the precision and serve life of machine.

n Main gear adopts free-key connection, can long-time keep the printing accuracy.

n Manual adjustment of the printing roll axial position 15mm.

n Anilox and rubber roll drive motor: 0.75 kw

n Phase adjusting motor: 0.37 kw.

n Printing precision±0.50mm(when the paper board is plane and smooth).

n Auto count device properly controls production volume.

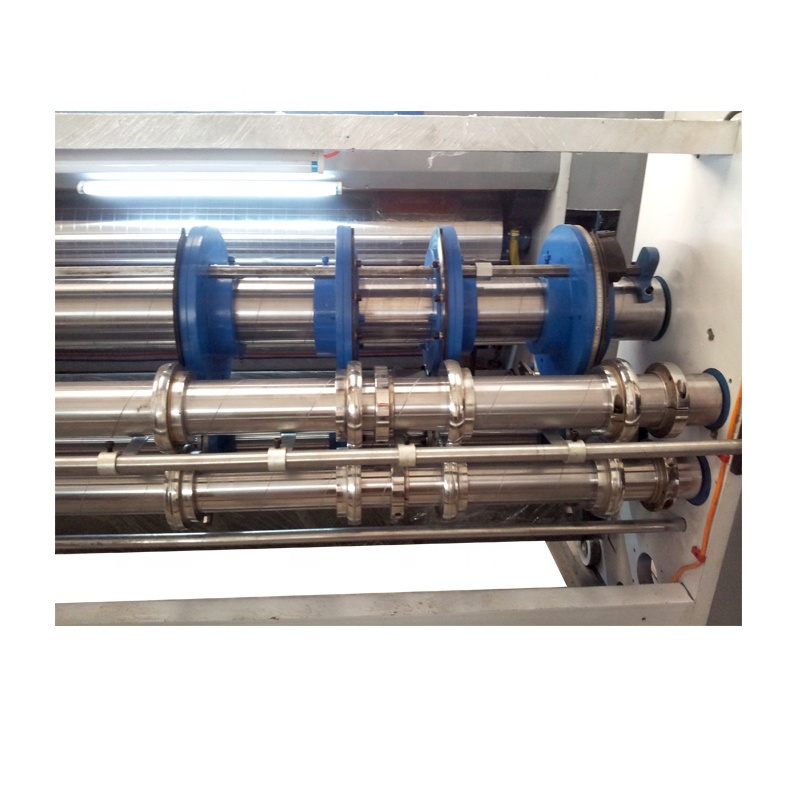

3) Slotting Unit

n The slotting knives pedestal can be worm-type adjustment according to the thickness of card board. ( Three & Five layer only).

n The slitting knives pedestal can be worm-type adjustment according to the thickness of card board. ( Three & Five layer only).

n The back slotting knife (Height of the box) Four knives adjustment synchronous, easy working.

n The main gear adopts free key connection can maintain the long time slotting accuracy.

n Motorized shift and pneumatic locking.

n Electric adjustment Printing phase and slotting position.

n 7mm alloy steel slotting knives with indent heat treatment to enable grinding teeth sharp edge.

n Slotting adjustment motor 0.37kw

n Slotting airframe motor-driven 0.55kw

n Slotting Precision more or less 1.5mm.

4) Die Cutting Unit

n Glue roller line speed auto repair device, prolong the service life of rubber.

n The rubber roller adopts horizontal automatic position move left and right. The movement distance is 40mm. Prolong the service life of rubber.

n Automatic grinding roller function, prolong the service life of rubber.

n Adopts high quality Taiwan durable rubber

n Roller made from cast steel grinding, wall thickness is 30mm.

n Die-cutting roller pneumatic manual or automatic control, die cutting roller lift cutting when feeding paper, down when stopping feeding paper avoid damage the rubber.

n The phase of die cutting position electric adjust
