KZJ1500
xinglong
Semi Automatic
Tying machine

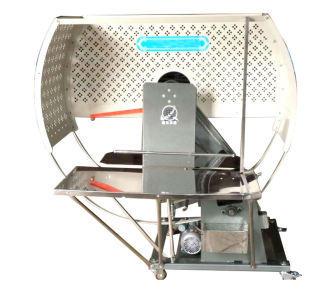

Semi automatic Tying Machine
Function and Features:
The machine used to the industry of carton, cardboard, corrugated cardboard, box. It instead of manual working. So reduce workers, just need one people to operate.
This machine with firm structure, body made by steel, gear made from good quality steel. It is with good quality, low noise, less time for maintenance.
It can save production cost. The cost of PE tape just RMB0.01 to tie one meter box. (the cost of PE tape is 1/4 of PP tape)
It is with fast speed, one machine instead 3 people, high efficiency.
Easy to operate, safe, no need operation experience.
It with widely usage, automatically to adjust tying size.
It used motorized(or machine) control, stable performance, less power,
Technology and Parameters
Model | KZJ70 | KZJ100 | KZJ1200 | KZJ1500 |
Max tying size | 700×500 | 1000×600 | 1200×800 | 1500×800 |
Min tying size | 200×100 | 200×160 | 400×200 | 300×200 |
Depth of table | 240 | 320 | 320 | 420 |
Speed(second/tying) | 1.2 | 1.2 | 1.3 | 1.2 |
Tape model | PE28# | PE28# | PE28# | PE28# |
Motor power (W) | 370 | 550 | 550 | 750W |
Voltage (V) | 单相220v | 单相220v | 单相220v | 单相 220v |
Dimension (mm) | 1080×1060×1550 | 1550×1100×1630 | 1750×1200×1700 | 2300×1300×1900 |
Weight (Kg) | 158 | 200 | 218 | 300 |
Semi automatic Tying Machine
Function and Features:
The machine used to the industry of carton, cardboard, corrugated cardboard, box. It instead of manual working. So reduce workers, just need one people to operate.
This machine with firm structure, body made by steel, gear made from good quality steel. It is with good quality, low noise, less time for maintenance.
It can save production cost. The cost of PE tape just RMB0.01 to tie one meter box. (the cost of PE tape is 1/4 of PP tape)
It is with fast speed, one machine instead 3 people, high efficiency.
Easy to operate, safe, no need operation experience.
It with widely usage, automatically to adjust tying size.
It used motorized(or machine) control, stable performance, less power,
Technology and Parameters
Model | KZJ70 | KZJ100 | KZJ1200 | KZJ1500 |
Max tying size | 700×500 | 1000×600 | 1200×800 | 1500×800 |
Min tying size | 200×100 | 200×160 | 400×200 | 300×200 |
Depth of table | 240 | 320 | 320 | 420 |
Speed(second/tying) | 1.2 | 1.2 | 1.3 | 1.2 |
Tape model | PE28# | PE28# | PE28# | PE28# |
Motor power (W) | 370 | 550 | 550 | 750W |
Voltage (V) | 单相220v | 单相220v | 单相220v | 单相 220v |
Dimension (mm) | 1080×1060×1550 | 1550×1100×1630 | 1750×1200×1700 | 2300×1300×1900 |
Weight (Kg) | 158 | 200 | 218 | 300 |
