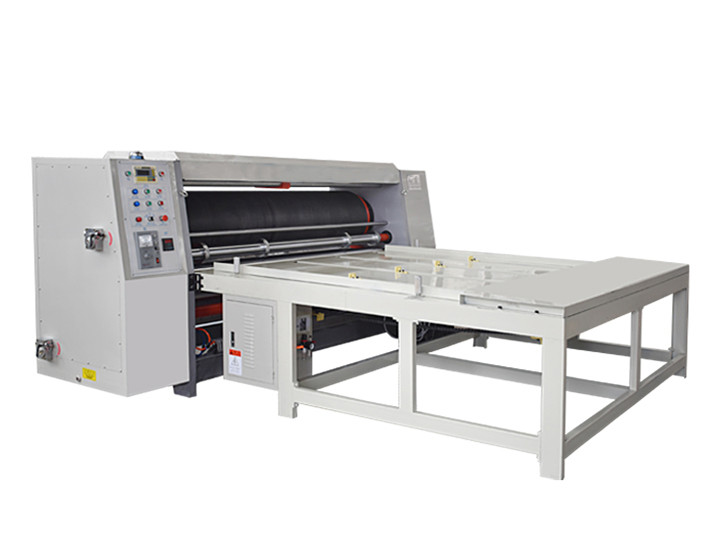

Semi-Automatic Chain Feeder Rotary Die Cutter Corrugated Carton Box Making Machine Paper

Share to:

Semi-Automatic Chain Feeder Rotary Die Cutter Corrugated Carton Box Making Machine Paper

Availability:

Quantity:



Inquire Add to Basket

Type:
Other
Warranty:
1.5 years, 1year
Applicable Industries:
Manufacturing Plant, packaging
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles, packing
Packaging Type:
Cartons, Bags, Case
Packaging Material:
Plastic, Paper, Metal, Wood
Automatic Grade:
Semi-Automatic
Driven Type:
Electric
Voltage:
380V
Power:
4KW
Place of Origin:
China,HeBei
Brand Name:
XINGLONG
Weight:
2000KG
Dimension(L*W*H):
4000*3000mm*2500mm
Certification:
CE,ISO90001
Key Selling Points:
Long Service Life
Model:
MQ-295*2000
Max feeding size:
850*1750mm
Max Die-Cutting Size:
850*1750mm
Speed:
0-60PCS/Min
After-sales Service Provided:
Engineers available to service machinery overseas

Product Description

Product Description

Function and uses:

The machine adopts chain feeding system and double roller rotary type. It can perform all process of slitting, creasing, corner cutting and hit special hole at one time. It has advantage of high precision, easy to operate, long service life and low cost.

PARAMETER
Model	MQ-295*2000	MQ-340*2200	MQ-405*2400	MQ-480*2600
Max feeding size	850*1750mm	1000*1950	1200*2150	1400*2350
Max die-cutting size	850*1750mm	1000*1950	1200*2150	1400*2350
speed	0-60pcs/min	0-60pcs/min	0-60pcs/min	0-60pcs/min
power	4kw	4kw	5.5kw	5.5kw

Main characteristics:

1,Automatic compensation device for linear speed of rubber cushion roller to prolong the service life of superior adhesive.2,Automatic lateral movement of cushion roller 40 mm from left to right, prolonging the service life of superior rubber3,When the rubber pad is used unevenness, can open the function of the rubber roller, prolong the service life of the rubber pad.4,Adopt high-quality Germany Depair rubber pad.5,The roller is made of cast steel, with a wall thickness of 45mm,6,Pneumatic manual or automatic control of die cutting roll, die cutting roll to lift cutting paper, stop the paper feed to fall to avoid damage to the rubber pad.7,Electrically adjusted phase die-cutting position8,The transmission gear is automatically sprayed and lubricated, and the service life of the gear is prolonged.

Related Products

After Sales Service

●We can send engineers to users factory install machine and traininng.

● we will provide layout, elecric drawing and related documents

● warranty: 1year

FAQ

1. Q: What is your delivery term? A: FOB,CIF,CFR usually. 2.Q: What is your payment? A: T/T.30% deposit, 70% balance before delivery. L/C. 100% at sight. T/T and L/C, 30% TT deposit, 70% L/C.3.Q: What is your delivery time? A: Die cutting machine, 30-40 days usually. If urgent, 15 days only. Paper cutting machine, 20-30 days usually. If urgent, 15 days only. 4.Q: What is your warranty and other terms? A: One year warranty. Spare parts are free for customer in 1 year, but customer have to pay delivery. We can send our engineer to customer factory for 7 days free installing and trainning, customer have to pay tickets, visa, meals and hotel. If need more training, $100.00 per day to our engineer.
