SYD4210 Sun feeder high speed rotary cardboard die cutting machine

Quantity:
  • Other
  • New
  • Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
  • Cartons
  • Paper
  • Automatic
  • Electric
  • 380v/410v/440v 50Hz
  • 3kw
  • Hebei, China
  • XINGLONG
  • SYD4210
  • about 3tons
  • Machine Model
  • CE
  • OPTIONAL
  • Engineers available to service machinery overseas

Sun feeder high speed rotary cardboard die cutting machine

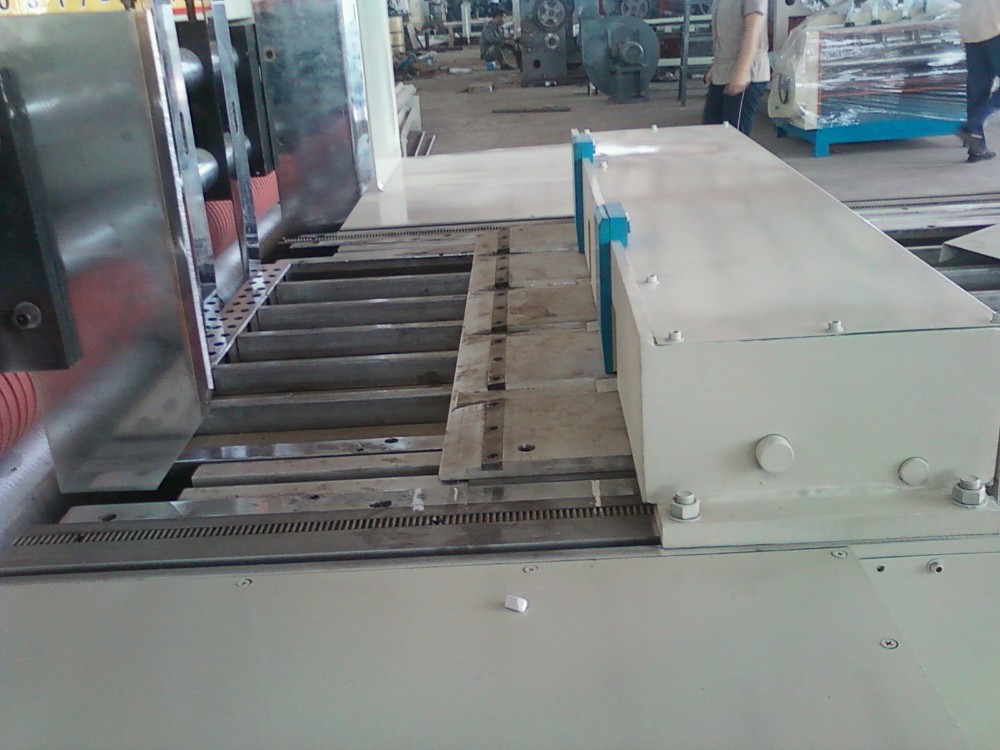

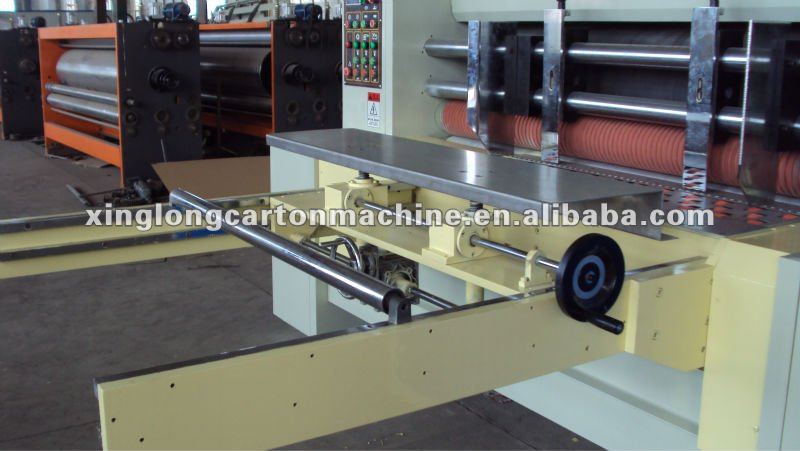

Paper feeding unit:

1. Adopt back-kick feeding system with vacuum adsorption auxiliary feed. (optional equipment    Lead edge feeding system)





(lead edge feeding or called sun feeder)



(kick feeder)

2. Speed: 6000sheets/h, die-cutting precision: ±0.75mm

3. Manual adjust former block board, and electric adjust lateral block board

4. Leading paper roll have groove glue surface to prevent the crushed cardboard and increase the accuracy of feeding.


Die-cutting unit:

1. Die-cutting roller is made of quality steel the thickness is 30mm, balance correction, plating chrome

2. The wallboard is quality casting iron the thickness is 50mm

3. All of gears with high frequency hot treatment, surface is grinded.

4. Rubber roll with automatic repair mechanism, improve rubber using life, can repair 3-4 times.

5. Lind speed automatic compensation to ensure that each batch of cartons die-size is fully consistent

6. Quality Rubber from Taiwan, CUE of American or ASTIN of Italy

7. Adopt key-free connection, no gap cross slide adjusting.

8. Adopt planet type electric digital display phase adjustment in 360 degree

9. Die-cutting roll with automatic move horizontally 40mm

10. Used of one couple of die to performing die-cutting and molded board separate from waste paper automatically.


Electrical appliance unit:

1. Main unit adopts adjustable speed motor.

2. Former and back control panel are concise concentration, easy to operation.

3. The machine is consisted of light, electricity and gas joint control system

4. The electrical appliance used of brand production.


Main Technology Parameter:

Model

Roller diameter

Max over sheet size

Min over sheet size

Speed

Main Motor

MQJ-1500



φ410

1600*1350mm

  400*500mm

80-100pcs/min

5.5kw

MQJ-1750

1850*1350mm

400*500mm

80-100pcs/min

5.5kw

MQJ-2000

2100*1350mm

400*500mm

80-100pcs/min

5.5kw

MQJ-2250

2350*1350mm

400*500mm

80-100pcs/min

7.5kw

MQJ-2500

2600*1350mm

400*500mm

80-100pcs/min

11kw

MQJ-1500

φ487

1600*1350mm

400*500mm

80-100pcs/min

5.5kw

MQJ-1750

1850*1350mm

400*500mm

80-100pcs/min

5.5kw

MQJ-2000

2100*1350mm

400*500mm

80-100pcs/min

5.5kw

MQJ-2250

2350*1350mm

400*500mm

80-100pcs/min

7.5kw

MQJ-2500

2600*1350mm

400*500mm

80-100pcs/min

11kw
