xinglong
New
Automatic
Easy to Operate
xinglong
Provided
Electric
Provided
Video technical support
1 Year
computer
SMBD-BNC Slitter Scorer Machine（servo type）（frequency converter type）
IMPORTANT FEATURES
★The upper and lower computer system consists of high-quality industrial computers and high-performance programmable controllers.

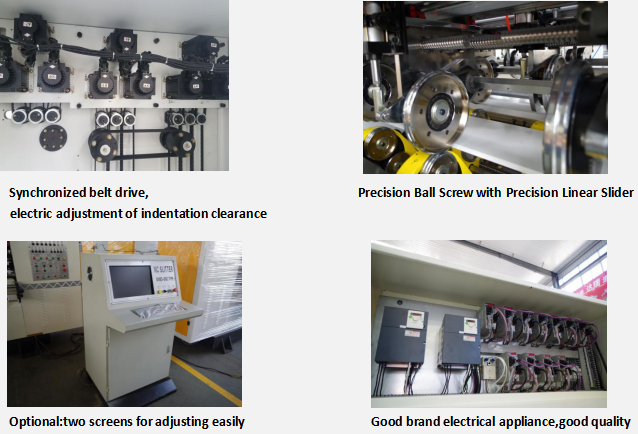

★High precision linear guide guide guide is used to grind ball screw transmission pair to ensure the positioning accuracy of the
slitting line.
★It can store multiple orders, and can change orders automatically or manually without stopping.
★Automatically track the speed of production line to ensure synchronization with it. It can be connected with
production management system and has strong compatibility.
★Change orders quickly, when two machines are used together, it can be realized to change orders without stopping.

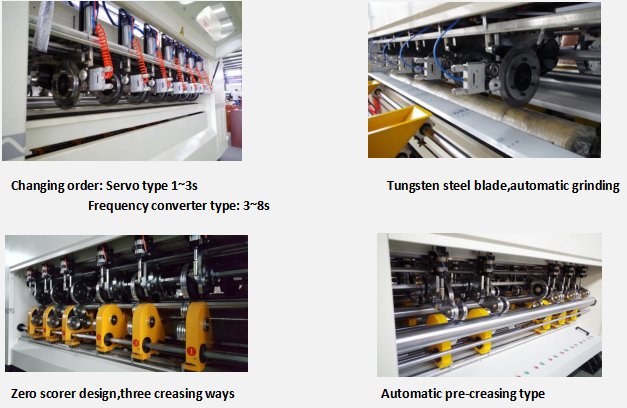

★With thin tungsten steel blade, the blade is sharp and has a service life of more than 8 million meters.
★Grinding knife is computer controlled automatic or manual grinding knife, passive grinding knife, lightweight structure, easy maintenance.
★Three types of wire pressing are selected: convex-to-concave (three-layer plate), convex-to-concave (five-layer plate), convex-to-flat, and three types of wire pressing electric conversion.
★The front and back two rows of pressure wire wheel are arranged to realize zero scorer.
★Line pressing depth has automatic control, good line shape, easy to shape.
★The machine moves left and right for correct an error.

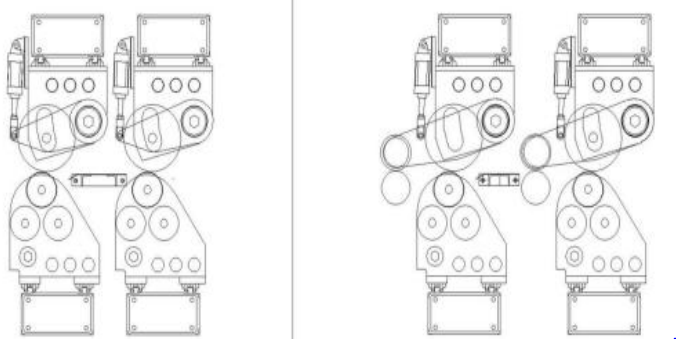

Oscorer type Pre-scorer type
ADVANTAGE
Synchronized adjustment of upper and lower pressure lines.
Three Voltage Line Electric Conversion.
Optional Pre-creasing Function.
Multi-screw design, economical and durable.
TECHNICAL INDEX
Model | 1800 | 2200 | 2500 |
Efficient width | 1850mm | 2250mm | 2550 |
Min. slitting width | 135mm | ||
Min. creasing width | 0mm | ||
Blade model | Φ260*158*1.3mm | ||
Creasing roller model | 上（up）φ238mm下(down)φ130mm | ||
Changing order time (servo type) | 1-3s | ||
Changing order time (frequency converter type)
| 3-8s | ||
Correction range | ±100mm | ||
Precision | ±0.5mm | ||
QTY of blade/scorer | 5/8 | 6/10 | 7/12 |
Power(pre-creasing) | 20kw | 24kw | 25kw |
Power(normal type) | 16kw | 20kw | 21kw |
Boundary dimension (pre-creasing type) | 3840*2100*2450mm | 4240*2100*2450mm | 4540*2100*2450mm |
Boundary dimension (normal type) | 3840*1720*2450mm | 4240*1720*2450mm | 4540*1720*2450mm |
Depth of creasing | 12mm | ||
Design speed | 150/200/250 m/min | ||
