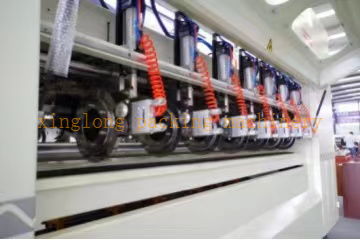

SMBD-BNC Slitter Scorer Machine(servo type) (frequency converter type)
IMPORTANT FEATURES
The upper and lower computer system consists of high-quality industrial comouters and high-performance programmable controllers.

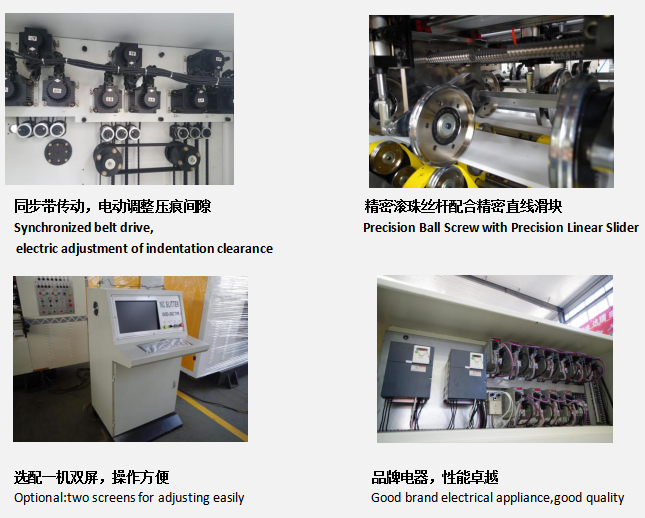

High precision linear guide guide guide is used to grind ball screw transmission pair to ensure the positioning accuracy of the slitting line.
It can store multiple orders,and can change orders automatically or manually without stopping.
Automatically track the speed of production line to ensure synchronization with it.It can be connected with production management system and has strong compatibility.

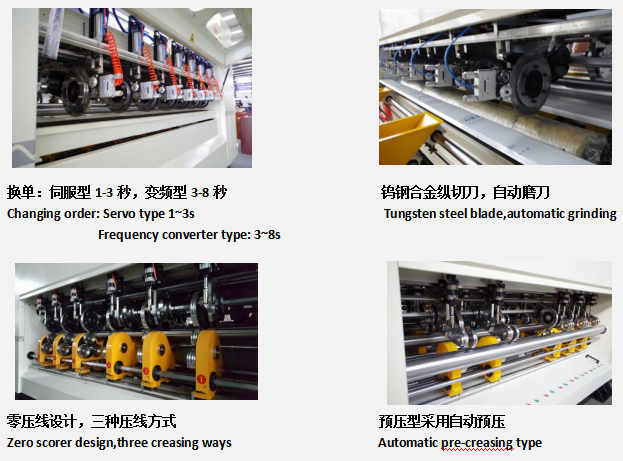

Change orders quickly,when two machines are used together,it can be realized to change orders without stopping.
With thin tungsten steel blade,the blade is sharp and has a service life of more than 8 million meters.
Grinding knife is computer controlled automatic or manual grinding knife,passive grinding knife,lightweight structure,easy maintenance.
Three types of wire pressing are selected:convex-to-concave (three-layer plate),convex-to-concave (five-layer plate),convex-to-flat,and three types of wire pressing electric conversion.
The front and back two rows of pressure wire wheel are arranged to realize zero scorer.
Line pressing depth has automatic control,good line shape,easy to shape.
The machine moves left and right for correct an error.
ADVANTAGE
Synchronized adjustment of upper and lower pressure lines.
Three Voltage Line Electric Conversion.

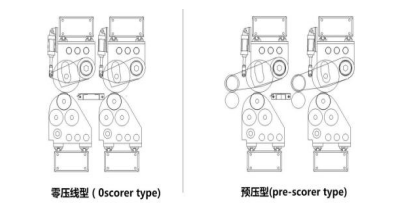

Optional Pre-creasing Function.
Multi-screw design,economical and durable.
TECHNICAL INDEX
| Model | 1800 | 2200 | 2500 |
| Efficient width | 1850mm | 2250mm | 2550mm |
| Min.slitting width | 135mm | ||
| Min.creasing width | 0mm | ||
| Blade model | φ260*158*1.3mm | ||
| Creasing roller model | (up)φ238mm (down)φ130mm | ||
| Changing order time (servo type) | 1-3s | ||
| Changing order time(frequency converter type) | 3-8s | ||
| Correction range | ±100mm | ||
| Precision | ±0.5mm | ||
| QTY of blade/scorer | 5/8 | 6/10 | 7/12 |
| Power(pre-creasing) | 20kw | 24kw | 25kw |
| Power(normal type) | 16kw | 20kw | 21kw |
| Boundary dimension(pre-creasing type) | 3840*2100*2450mm | 4240*2100*2450mm | 4540*2100*2450mm |
| Boundary dimension(normal type) | 3840*1720*2450mm | 4240*1720*2450mm | 4540*1720*2450mm |
| Depth of creasing | 12mm | ||
| Design speed | 150/200/250 m/min | ||
WHY CHOOSE US

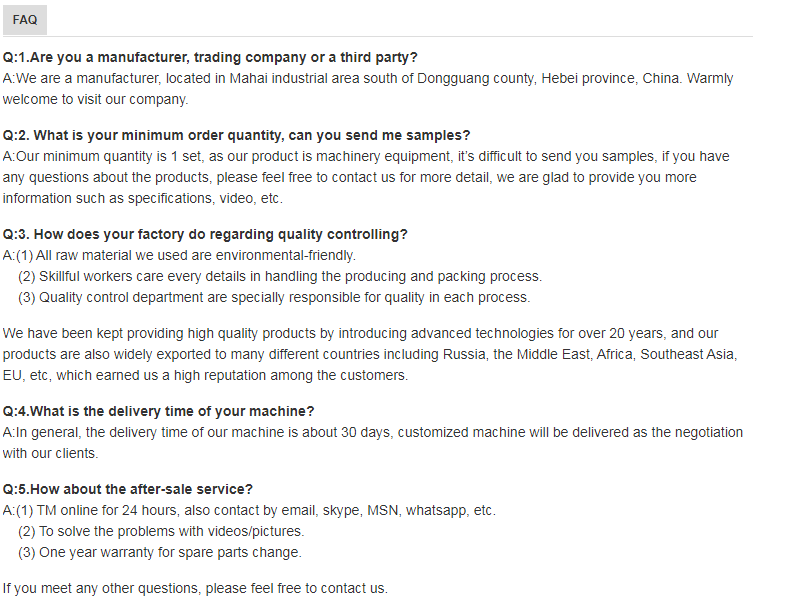

WHAT CAN WE HELP YOU WITH
