Packaging Line
New
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles
Film, Case
Plastic, Metal, Wood
Automatic
Electric
220V/380V/440V
Hebei, China
XINGLONG
custormized
about 5 ton
CE & ISO
1 YEAR
Online support, Free spare parts
60-220m/min
Customer Required

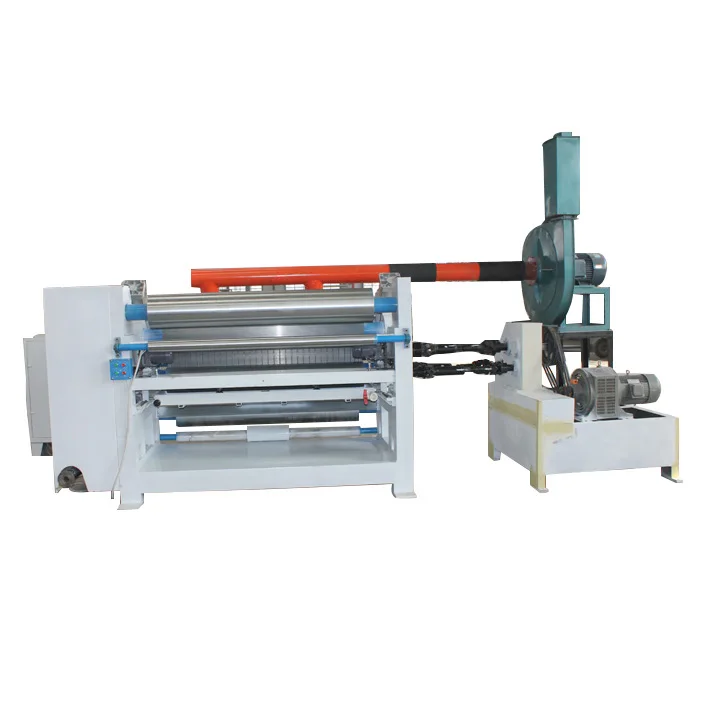

SF320 fingerless single facer corrugated roller machine
Specifications:
Design speed | 120-180m/min |
Effective width | 1400-2500mm |
Corrugated roller diameter | 280-360mm |
Flute roller material | 48CrMo alloy steel or tungsten is option |
Flute type | A, B, C, E flute are available |
Flute roller hardness | from 50-60degree |
Warranty | one year for spare parts change |
Description:
1. Vacuum suction type pulling cardboard with wind control device.
2. Glue roller and fixed roller are designed to groups guide way slippage load-unload, convenient and swift.
3. Use Gimbal drive with independent gear box, transmission more stable, close style gear transmission oiliness lubricated, prolong the use life of gear.
4. The upper corrugating roller, pressure roller and glue roller adopt pneumatic control.
5. Flute roller and pressure roller adopt high temperature resistant lubrication grease.
6. Manual adjust the gluing quantity or electric adjustment.
7. The upper-lower corrugating roller are made of 48CrMo high quality alloy steel, after heat-treatment. the rigidity is HRC58-60°, the surface are whetted and plating chrome.
3ply/5ply/7ply corrugated production line Customized speed single facer High speed automatic printer slotter
Shaftless mill roll stand Semi automatic gluer Semi automatic stitching machine
Multi color semi auto printer slotter Automatic rotary die cutting machine Rotary slotter grooving machine
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.
2. Q: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
3. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
4. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
