SF270-2200 Single Face Corrugation Machine

Quantity:
  • Other
  • Manufacturing Plant, Food & Beverage Factory, Farms, Food & Beverage Shops, Advertising Company
  • New
  • Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware
  • Cartons
  • Plastic, Wood
  • Automatic
  • Electric
  • 380V 50HZ
  • About 20kw or 60kw
  • Hebei, China
  • XINGLONG
  • about 2T
  • customized
  • CE
  • Engineers available to service machinery oversea
  • SF270-2200 Single Face Corrugation Machine
  • 1Year
  • 2200mm
  • 270mm
  • 80gsm-170gsm
  • Engineers available to service machinery overseas

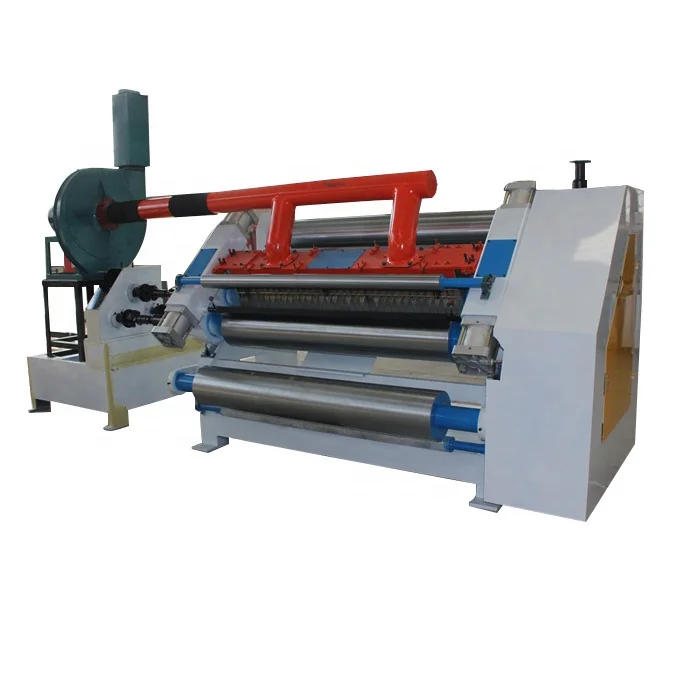

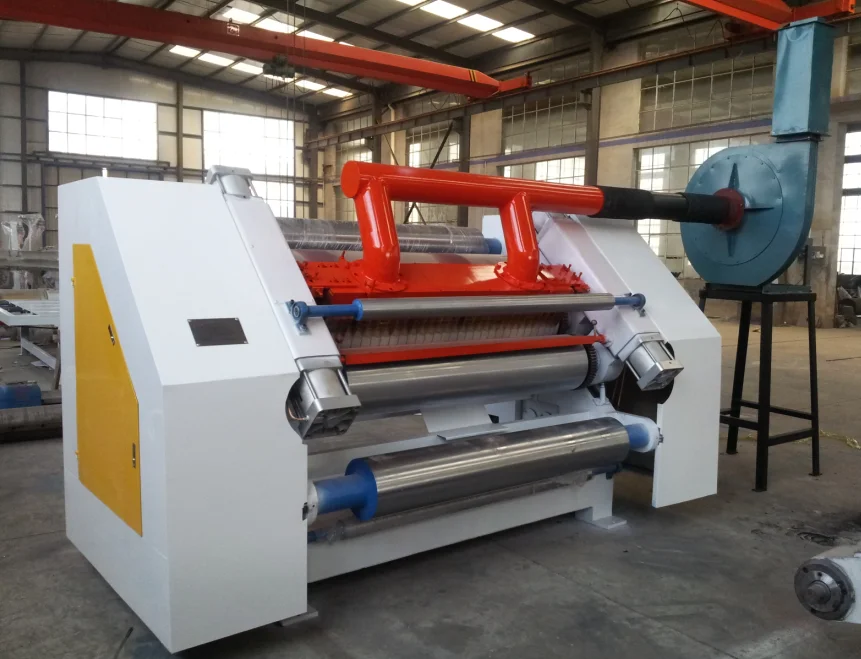

SF270-2200 Single Face Corrugation Machine

Product Description

Technology parameters:

Model

SF270-2200

Effective width

2200mm

Flute roller diameter

270mm

Heating type

Steam or electric

Application medium paper

80gsm-170gsm

Power

About 20kw or 60kw

Features

n Vacuum suction type pulling cardboard with wind control device.

n Glue roller and fixed roller are designed to groups guide way slippage load-unload, convenient and swift.

n Used pneumatic control top flute roller, pressure roller and gluing roller come back movement.

n Flute roller adopts 48CrMo high quality alloy steel, with heat treatment, surface be grinded and chrome plated.

n Adjust gluing width by motorized (manual option)

n Glue amount adjustment by pneumatic( electric option)

n The bearing of flute roller and pressure roller adopt high temperature resistant lubrication grease.

n Vacuum suction type pulling cardboard with wind control device.

n Glue roller and fixed roller are designed to groups guide way slippage load-unload, convenient and swift.

n Independent gear box connect with gimbal to drive machine running more stable. (option:electric heating without gimbal)

Packaging & Shipping

Our Services

Company Information

FAQ

1. Q: Are you a manufacturer, trading company or a third party?

A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.

2. Q: How does your factory do regarding quality controlling?

A: 1) All raw material we used are environmental-friendly

2) Skillful workers care every details in handling the producing and packing process

3) Quality control department are specially responsible for quality in each process

We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.

3. Q: What is the payment terms?

A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.

4. Q: How about the after-sale service?

A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.

2) To solve the problems with videos/pictures.

3) One year warranty for spare parts change.
